COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-08400		Well Classification: CBM Status: PR - 5/1/2006
Well Name/No:APACHECANYON #18-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/1/2006
FacilityID:277931LocationID:308651
County:LAS ANIMAS #071Location:NWNE 18 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8168 ft.
Planned Location:15FNL  1513 FELLat/Long: 37.091483 / -104.925480Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.091450 / -104.925470Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 5/1/2006             Measured TD: 2690 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 5/1/2006
Wellbore Permit
Permit #:20051625 Expiration Date:5/26/2006
Proposed Depth/Form:2640 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:7/1/2005
Spud Date:6/8/2005Spud Date Is:ACTUAL
Measured TD:2690 ft.Measured PB depth:2616 ft.
True Vertical TD:True Vertical PB depth:
Log Types:AIL/TLD/CNL/TEMP/GR/CCL/CBL

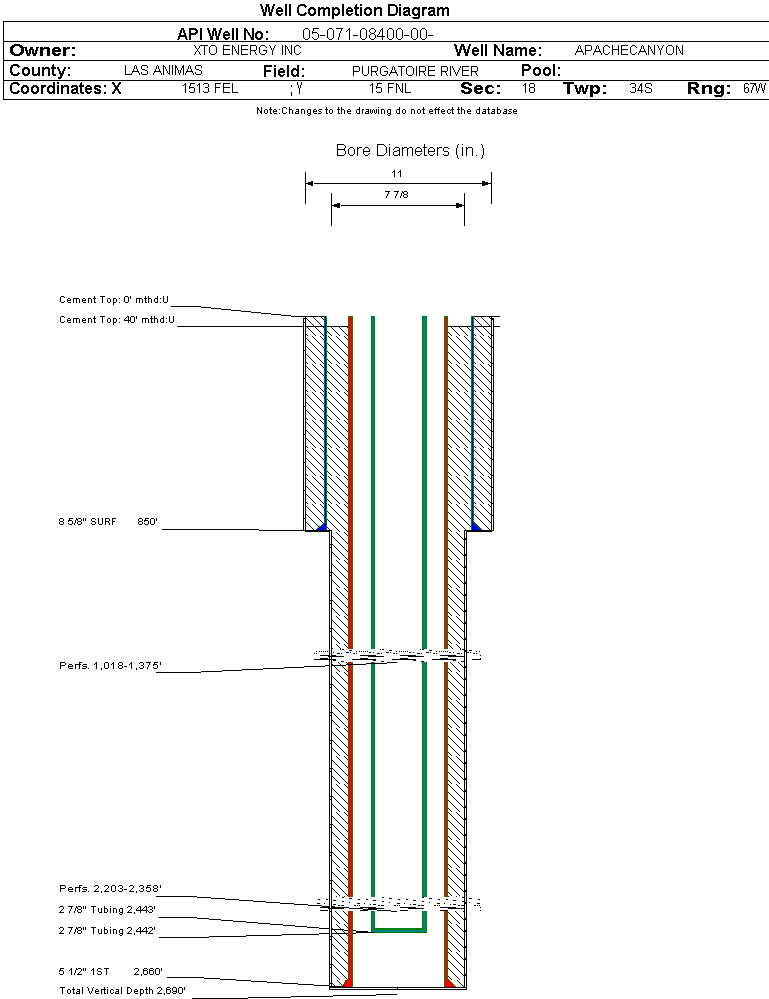

Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 850 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 405, Top: 0 ft., Bottom: 850 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2660 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 40 ft., Bottom: 2660 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1966 ft.NN
VERMEJO COAL2078 ft.2442 ft.NN
TRINIDAD2442 ft.2682 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  CM - 9/21/2005                 Interval Top: 2203 ft.    Interval Bottom: 2358 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:9/21/2005Choke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:PUMPING
Open Hole Completion:No
Formation Treatment
Treatment Date:7/1/2005
Treatment Summary:A/W/1000 GALS 15% HCL. FRAC'D W/100,555 GALS 20# DELTA 140 W/ SANDWEDGE NT CARRYING 10,492# 16/30 & 128,569# 12/20 BRADY SD.
Tubing Size:2.875 in.Tubing Setting Depth:2442 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/21/2005Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 300
BBLS_OIL 0
CASING_PRESS 4
MCF_GAS 30
TUBING_PRESS 3
Perforation Data:
Interval Top:2203 ft.# Of Holes:48
Interval Bottom:2358 ft.Hole Size:0.4 in.

Formation RTONS                   Formation Classification:  GW                   Status:  CM - 2/16/2006                 Interval Top: 1018 ft.    Interval Bottom: 1375 ft.

 Completed Information for Formation RATON SAND
1st Production Date:2/15/2006Choke Size:
Formation Name:RATON SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/7/2006
Treatment Summary:2/7/06 A. W/2417 GALS 15% HCL ACID. FRAC'D W/148,317 GALS 20# DELTA 140, W/SANDWEDGE NT CARRYING 26,200# 16/30 & 287,400# 12/20
Tubing Size:2.875 in.Tubing Setting Depth:2443 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/16/2006Test Method:PUMPING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 109
BBLS_OIL 0
BTU_GAS 1007
CALC_BBLS_H2O 109
CALC_BBLS_OIL 0
CALC_MCF_GAS 0
CASING_PRESS 11
GRAVITY_OIL 1
MCF_GAS 0
TUBING_PRESS 4
Perforation Data:
Interval Top:1018 ft.# Of Holes:45
Interval Bottom:1375 ft.Hole Size:0.4 in.

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 5/1/2006

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:9/21/2005Choke Size:
Formation Name:RATON-VERMEJO COALSCommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RT-VJ.
No Perforation Data was found for formation RT-VJ.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2024 - January 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)17768
GOR
GOR DeterminationMCFE
Average BOE per Day8.376
Average MCFE per Day48.590

 Federal Financial Assurance  i

 Tribal Well  i No
