COGIS - WELL SCOUT CARD

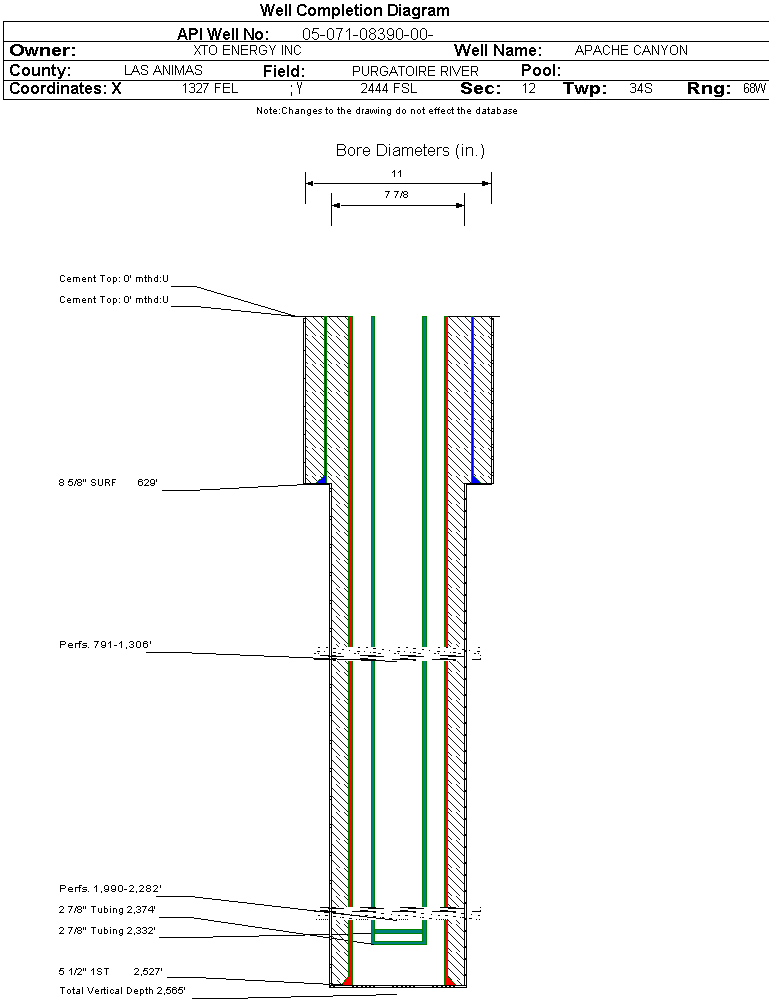

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-08390		Well Classification: CBM Status: PR - 3/6/2006
Well Name/No:APACHE CANYON #12-10
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/6/2006
FacilityID:277851LocationID:308643
County:LAS ANIMAS #071Location:NWSE 12 34S68W 6
Field:PURGATOIRE RIVER - #70830Elevation:8329 ft.
Basin:RATON BASIN
Planned Location:2444FSL  1327 FELLat/Long: 37.098213 / -104.942251Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.098200 / -104.942250Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 3/6/2006             Measured TD: 2565 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 3/6/2006
Wellbore Permit
Permit #:20051626 Expiration Date:5/23/2006
Proposed Depth/Form:2475 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:7/22/2005
Spud Date:6/5/2005Spud Date Is:ACTUAL
Measured TD:2565 ft.Measured PB depth:2407 ft.
True Vertical TD:True Vertical PB depth:
Log Types:AIL/TLD/CNL/TEMP/GR/CBL/CCL
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 629 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 629 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2527 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 0 ft., Bottom: 2527 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1817 ft.NN
VERMEJO COAL1920 ft.2301 ft.NN
TRINIDAD2301 ft.2545 ft.NN

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 7/1/2011                  Interval Top: 1990 ft.    Interval Bottom: 2282 ft.

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:N/AChoke Size:
Formation Name:RATON-VERMEJO COALSCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/22/2005
Treatment Summary:ACIDIZED W/1500 GALS 15% HCI ACID. FRAC'D W/145,831 GALS 203 DELTA 140 W/SANDWEDGE NT CARRYING 11,204# 16/30 AND 281,572# 12/20 BRADY
Tubing Size:2.875 in.Tubing Setting Depth:2332 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/2/2005Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 90
BBLS_OIL 0
CALC_BBLS_H2O 90
CASING_PRESS 0
MCF_GAS 0
TUBING_PRESS 2
Perforation Data:
Interval Top:1990 ft.# Of Holes:62
Interval Bottom:2282 ft.Hole Size:0.4 in.

Formation RTON                     Formation Classification:  GW                     Status:  CM - 3/6/2006                  Interval Top: 791 ft.    Interval Bottom: 1306 ft.

 Completed Information for Formation RATON COAL
1st Production Date:3/5/2006Choke Size:
Formation Name:RATON COALCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/22/2006
Treatment Summary:1,500 GALS 15% HCL; 229,848 GALS 20# DELTA 140 W/EXPEDITE; 402,700# 12/20 BRADY SAND & 66,700# 16/30 SAND.
Tubing Size:2.875 in.Tubing Setting Depth:2374 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/6/2006Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 130
BBLS_OIL 0
BTU_GAS 1008
CALC_BBLS_H2O 130
CALC_BBLS_OIL 0
CALC_GOR 86000
CALC_MCF_GAS 86
CASING_PRESS 1
GRAVITY_OIL 1
MCF_GAS 86
TUBING_PRESS 10
Perforation Data:
Interval Top:791 ft.# Of Holes:81
Interval Bottom:1306 ft.Hole Size:0.4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)16868
GOR
GOR DeterminationMCFE
Average BOE per Day7.962
Average MCFE per Day46.185

 Federal Financial Assurance  i

 Tribal Well  i No
