Wellbore #00 Wellbore Classification: GW Status: TA - 10/8/2013 Measured TD: 2250 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW TA - 10/8/2013 | | Wellbore Permit | | | Permit #: | 20050600 | Expiration Date: | 3/21/2006 | | Proposed Depth/Form: | 2200 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

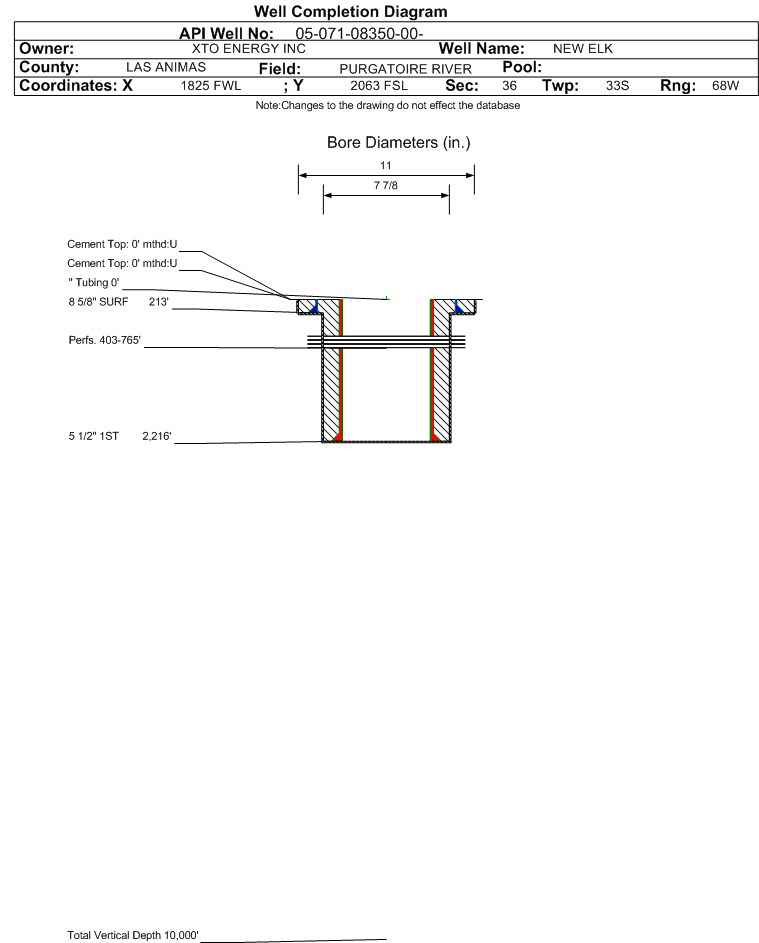

| Wellbore Completed | | Completion Date: | 8/19/2005 | | Spud Date: | 7/10/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 2250 ft. | Measured PB depth: | 2171 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | AIL , LTD / CNL , CAL / GR / CBL / CCL | | Casing: | String Type: SURF, Hole Size: , Size: 8.625 in., Top: 0 ft., Depth: 213 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 108, Top: 0 ft., Bottom: 213 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2216 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 2216 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1516 ft. | N | N | | VERMEJO COAL | 1599 ft. | 1927 ft. | N | N | | TRINIDAD | 1927 ft. | 2231 ft. | N | N |
Formation RTON Formation Classification: GW Status: TA - 10/8/2013 Interval Top: 403 ft. Interval Bottom: 765 ft.| Completed Information for Formation RATON COAL | | 1st Production Date: | 3/18/2006 | Choke Size: | | | Formation Name: | RATON COAL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 9/16/2013 | Treatment End Date: | N/A | | Treatment Summary: | Wellbore Status Change Only | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Date: | 3/6/2006 | | Treatment Summary: | A. W/1705 GALS 15.5% HCL ACID. FRAC'D W/144,410 GALS 20# DELTA 140 W/SANDWEDGE NT CARRYING 24,892# 16/30 AND 237,269# 12/20 BRADY SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 3 | | BBLS_OIL | 0 | | BTU_GAS | 1004 | | CALC_BBLS_H2O | 3 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 40000 | | CALC_MCF_GAS | 4 | | CASING_PRESS | 3 | | GRAVITY_OIL | 1 | | MCF_GAS | 4 | | TUBING_PRESS | 2 |
| | Perforation Data: | | Interval Top: | 403 ft. | # Of Holes: | 65 | | Interval Bottom: | 765 ft. | Hole Size: | 0.4 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 11/17/2025 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2028 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (TA ) | Y | Defined Inactive
08/31/2012 |
| Low Producing | Y | Production Period
12/2024 - 11/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
