Wellbore #00 Wellbore Classification: GW Status: PR - 6/18/2005 Measured TD: 2370 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/18/2005 | | Wellbore Permit | | | Permit #: | 20050603 | Expiration Date: | 3/10/2006 | | Proposed Depth/Form: | 2320 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

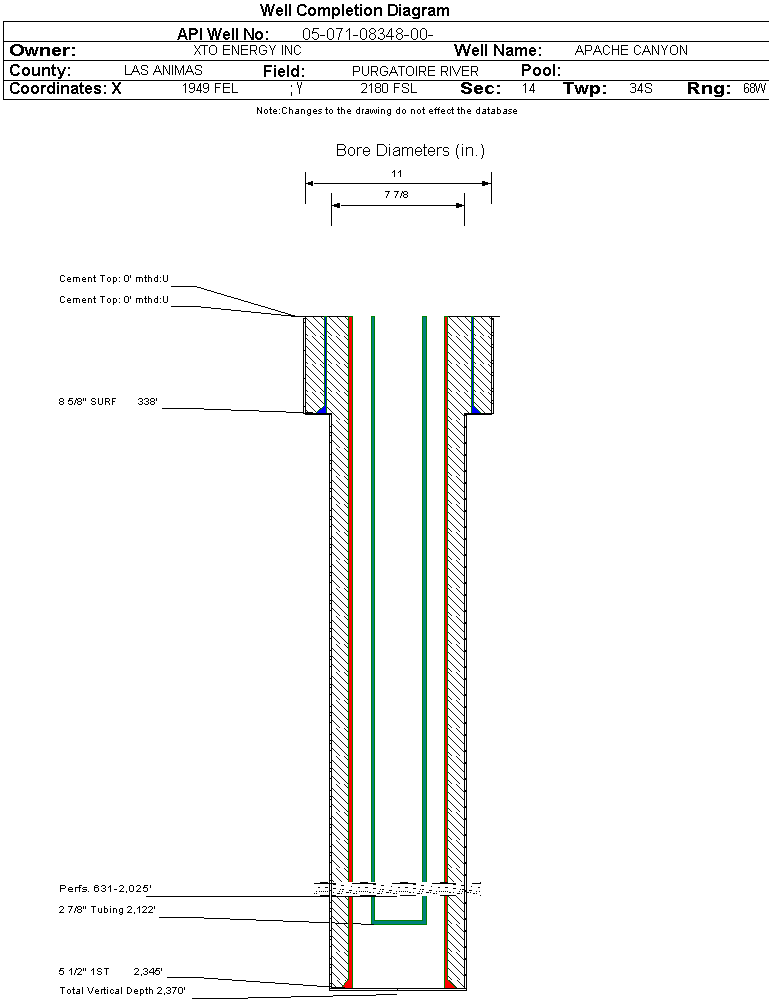

| Wellbore Completed | | Completion Date: | 6/18/2005 | | Spud Date: | 3/22/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 2370 ft. | Measured PB depth: | 2297 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | GR/CCL/CBL, CNL-TLD, AIL, TEMPERATURE | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 338 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 169, Top: 0 ft., Bottom: 338 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2345 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 2345 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1648 ft. | N | N | | VERMEJO COAL | 1755 ft. | 2052 ft. | N | N | | TRINIDAD | 2052 ft. | 2355 ft. | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 7/1/2011 Interval Top: 631 ft. Interval Bottom: 2025 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 6/18/2005 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/18/2005 | | Treatment Summary: | VRMJO COAL - ACIDIZED W/ 1000 GALS 15% HCL ACID. FRAC'D W/ 111,879 10# DELTA 140 W/ SANDWEDGE NT CARRYING 8786# 16/30 & 194,128# 12/20 BRADY SAND. // RTONS ACIDIZED W/ 2000 GALS 15% HCI ACID. FRAC'D W/ 194,322 GALS 20# DELTA 140 W/ SANDWEDGE NT CARRYING 16,661# 16/30 & 206, 296# 12/20 BRADY SAND. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2122 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/18/2005 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 86 | | CASING_PRESS | 4 | | MCF_GAS | 14 | | TUBING_PRESS | 3 |
| | Perforation Data: | | Interval Top: | 631 ft. | # Of Holes: | 148 | | Interval Bottom: | 2025 ft. | Hole Size: | 0.4 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 32269 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 15.233 |
| Average MCFE per Day | 88.360 |
| Federal Financial Assurance | i | |
|
|
