COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-08297		Well Classification: GW Status: PR - 10/1/2025
Well Name/No:APACHE CANYON #11-06
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/1/2025
FacilityID:275727LocationID:311966
County:LAS ANIMAS #071Location:SENW 11 34S68W 6
Field:PURGATOIRE RIVER - #70830Elevation:8589 ft.
Basin:RATON BASIN
Planned Location:2006FNL  1831 FWLLat/Long: 37.100393 / -104.967602Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.100600 / -104.967770Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/1/2025             Measured TD: 2650 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/1/2025
Wellbore Permit
Permit #:20050092 Expiration Date:1/24/2006
Proposed Depth/Form:2500 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:2/28/2005
Spud Date:2/26/2005Spud Date Is:ACTUAL
Measured TD:2650 ft.Measured PB depth:2563 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CNL/TLD/AIL/GR/CBL/CCL

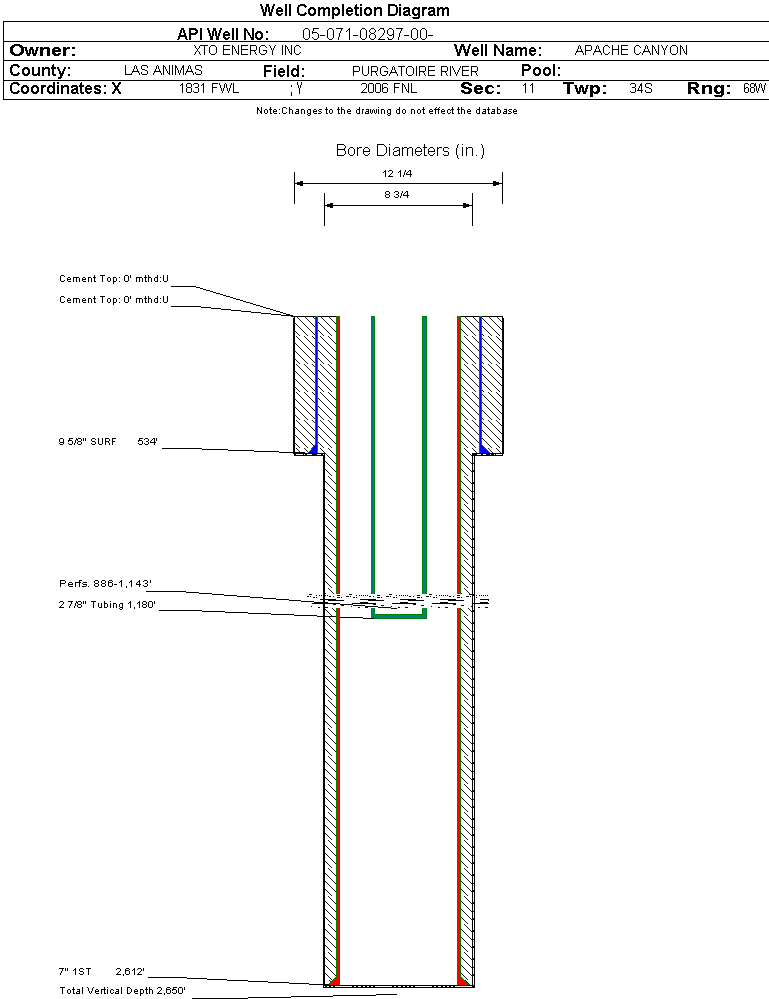

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 534 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 284, Top: 0 ft., Bottom: 534 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: , Depth: 2612 ft., Weight: 20 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 2612 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1914 ft.NN
VERMEJO COAL2023 ft.2346 ft.NN
TRINIDAD2346 ft.2640 ft.NN

Formation RTON                     Formation Classification:  GW                     Status:  PR - 10/1/2025                 Interval Top: 886 ft.    Interval Bottom: 1143 ft.

 Completed Information for Formation RATON COAL
1st Production Date:N/AChoke Size:
Formation Name:RATON COALCommingled:No
Production Method:PUMPING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/28/2005
Treatment Summary:ACIDIZED W/1835 GALS 15% HCI ACID. FRAC'D W/211,060# LIGHTNING GEL CARRYING 13,500# 16/30 & 297,000# 12/20 BRADY SAND.
Tubing Size:2.875 in.Tubing Setting Depth:1180 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/15/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 1232
BBLS_OIL 0
CALC_BBLS_H2O 1232
CALC_MCF_GAS 25
CASING_PRESS 8
MCF_GAS 25
Perforation Data:
Interval Top:886 ft.# Of Holes:80
Interval Bottom:1143 ft.Hole Size:0.4 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)2927
GOR
GOR DeterminationMCFE
Average BOE per Day1.386
Average MCFE per Day8.047

 Federal Financial Assurance  i

 Tribal Well  i No
