COGIS - WELL SCOUT CARD

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-08278
Well Classification: CBM Status: PR - 12/24/2005
Well Name/No:HILL RANCH #32-06CH
(Click Well Name for Production Data)
Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)
Federal Or State Lease #:
Facility Status:PRStatus Date12/24/2005
FacilityID:275202LocationID:333928
County:LAS ANIMAS #071Location:SENW 32 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8167 ft.
Planned Location:2015FNL  2523 FWLLat/Long: 37.042574 / -104.911730Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.042610 / -104.911630Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 12/24/2005             Measured TD: 2700 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 12/24/2005
Wellbore Permit
Permit #:20043077 Expiration Date:12/16/2005
Proposed Depth/Form:2700 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:

Wellbore Completed
Completion Date:6/5/2005
Spud Date:4/21/2005Spud Date Is:ACTUAL
Measured TD:2700 ft.Measured PB depth:1663 ft.
True Vertical TD:True Vertical PB depth:
Log Types:PLATFORM EXPRESS ARRAY INDUCTION GAMMA RAY, PLATFORM EXPRESS TRIPLE LITHOLOGY DENSITY COMPENSATED NEUTRON

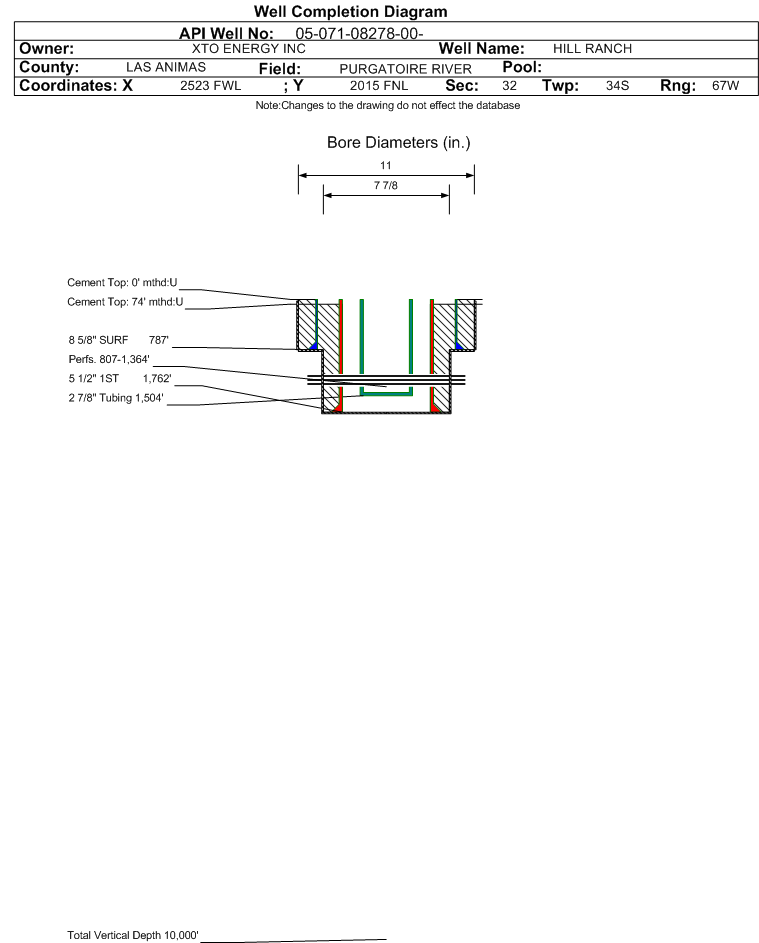

Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 787 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 787 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1762 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 74 ft., Bottom: 1762 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.2179 ft.NN
VERMEJO COAL2179 ft.2478 ft.NN
TRINIDAD2478 ft.2700 ft.NN

Formation RTON                     Formation Classification:  GW                     Status:  PR - 7/1/2011                  Interval Top: 807 ft.    Interval Bottom: 1364 ft.

 Completed Information for Formation RATON COAL
1st Production Date:N/AChoke Size:
Formation Name:RATON COALCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/5/2005
Treatment Summary:12/7/05 A. W/1500 GALS HCI AC. FRAC'D W/208,881 GALS 20# DELTA 140 W/ SW NT CARRYING 21,300# 16/30 & 338,300# 12/20 BRADY SD.
Tubing Size:2.875 in.Tubing Setting Depth:1504 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/24/2005Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 89
BBLS_OIL 0
BTU_GAS 992
CALC_BBLS_H2O 89
CALC_BBLS_OIL 0
CALC_MCF_GAS 5
CASING_PRESS 17
MCF_GAS 5
TUBING_PRESS 8
Perforation Data:
Interval Top:807 ft.# Of Holes:43
Interval Bottom:1364 ft.Hole Size:0.4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)21330
GOR
GOR DeterminationMCFE
Average BOE per Day10.071
Average MCFE per Day58.420

 Federal Financial Assurance  i

 Tribal Well  i No
