COGIS - WELL SCOUT CARD

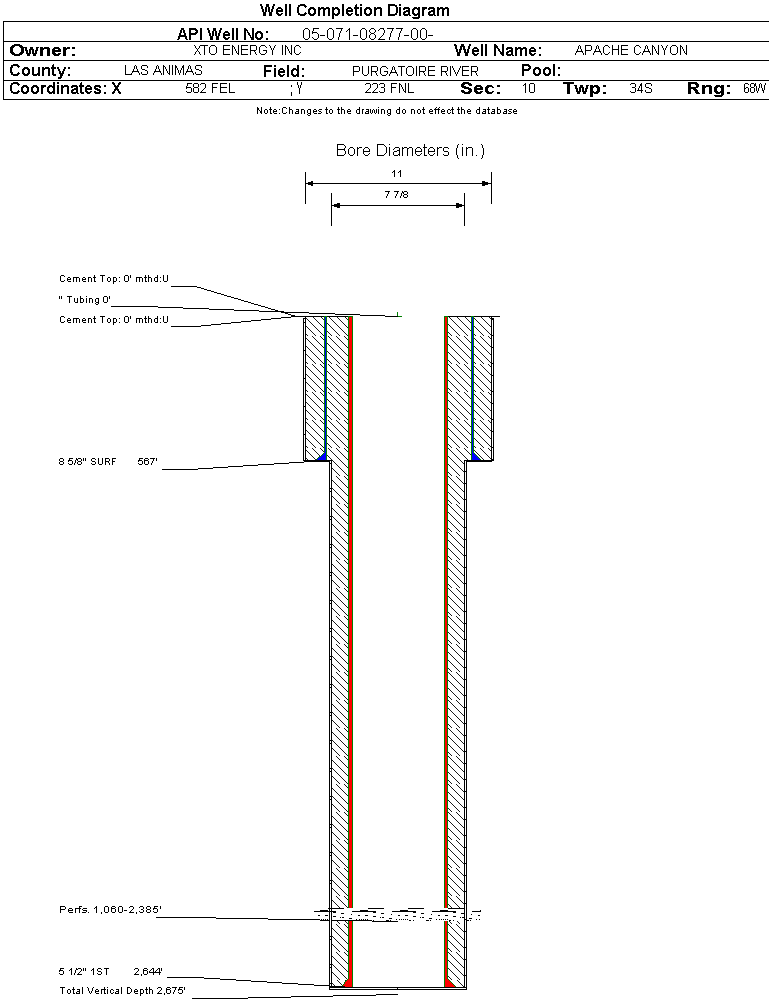

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-08277		Well Classification: GW Status: PR - 3/23/2005
Well Name/No:APACHE CANYON #10-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/23/2005
FacilityID:275148LocationID:308585
County:LAS ANIMAS #071Location:NENE 10 34S68W 6
Field:PURGATOIRE RIVER - #70830Elevation:8633 ft.
Basin:RATON BASIN
Planned Location:223FNL  582 FELLat/Long: 37.105163 / -104.975902Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.105190 / -104.975900Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/23/2005             Measured TD: 2675 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/23/2005
Wellbore Permit
Permit #:20043079 Expiration Date:12/14/2005
Proposed Depth/Form:2625 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:3/23/2005
Spud Date:1/15/2005Spud Date Is:ACTUAL
Measured TD:2675 ft.Measured PB depth:2599 ft.
True Vertical TD:True Vertical PB depth:
Log Types:AIL/GR/TLD/CSN/CA/CBL/CCL, TEMPERATURE LOG
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 567 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 264, Top: 0 ft., Bottom: 567 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2644 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: 0 ft., Bottom: 2644 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1996 ft.NN
VERMEJO COAL2074 ft.2395 ft.NN
TRINIDAD2395 ft.2655 ft.NN

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 7/1/2011                  Interval Top: 1060 ft.    Interval Bottom: 2385 ft.

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:N/AChoke Size:
Formation Name:RATON-VERMEJO COALSCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/23/2005
Treatment Summary:A. W/ 500 GALS 15% HCI ACID. FRAC'D W/ 71,953 GALS 20# DELTA 140 W/SW NT CARRYING 11,800# 16/30 & 97,700# 12/20 SD. A. W/500 GALS 15% HCI ACID. FRAC'D W/ 66,400 GALS 20# DELTA 140 SW NT CARRYING 8200# 16/30 & 66,400# 12/20 BRADY SD. A. W/500 GALS 15% HCI ACID. FRAC'D W/ 54,558 GALS 20# DELTA 240 W/SW NT CARRYING 10,000# 16/30 & 73,000# 12/20 B4RADTY SD. A. W/500 GALS 15% HCI ACID. FRAC'D W/63,714 GALS 20# DELTA 140 W/SW NT CARRYING 7800# 16/30 & 121,900# 12/20 BRADY SD. A. W/500 GALS 15% HCI ACID. FRAC'D W/ 52,290 GALS 20# DELTA 140 W/SW NT CARRYING 7200# 16/30 & 96,300# 12/20 BRADY SD.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/23/2005Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 108
BBLS_OIL 0
CALC_BBLS_H2O 108
CALC_MCF_GAS 19
CASING_PRESS 2
MCF_GAS 19
Perforation Data:
Interval Top:1060 ft.# Of Holes:92
Interval Bottom:2385 ft.Hole Size:0.4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)19624
GOR
GOR DeterminationMCFE
Average BOE per Day9.260
Average MCFE per Day53.731

 Federal Financial Assurance  i

 Tribal Well  i No
