Wellbore #00 Wellbore Classification: GW Status: PR - 12/7/2007 Measured TD: 2300 ft. Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/7/2007 | Wellbore Permit | | Permit #: | 20042843 | Expiration Date: | 11/21/2005 | Proposed Depth/Form: | 1975 ft. | Surface Mineral Owner Same: | Yes | Mineral Owner: | FEE | Surface Owner: | FEE | Unit: | | Unit Number: | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

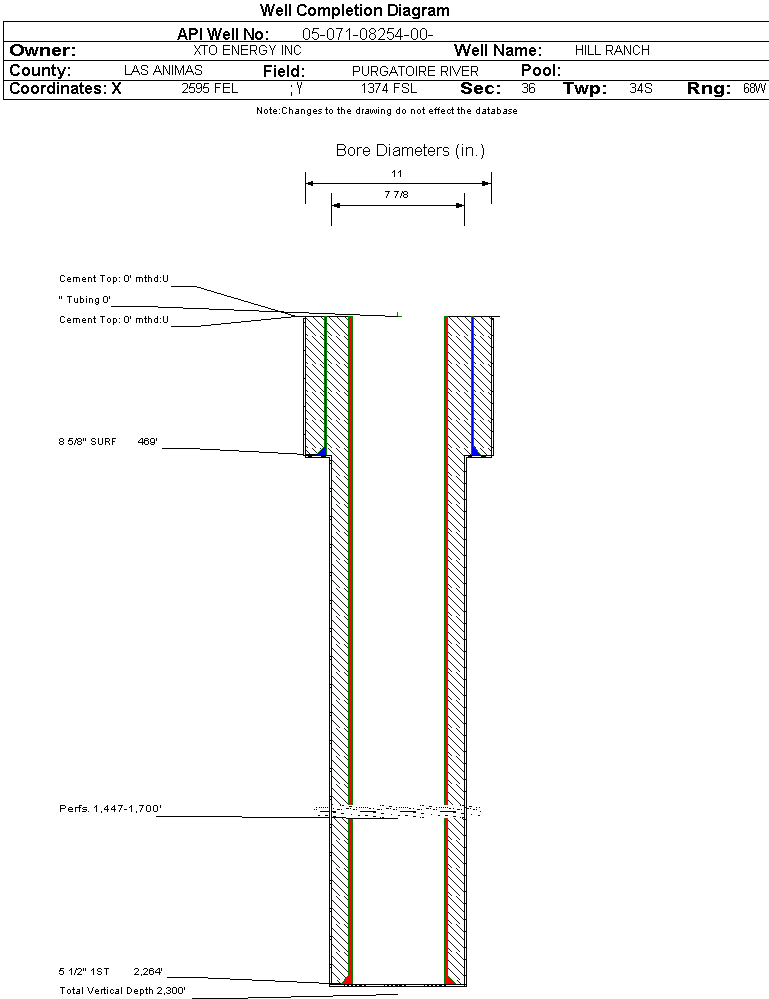

Wellbore Completed | Completion Date: | 2/26/2005 | Spud Date: | 12/14/2004 | Spud Date Is: | ACTUAL | Measured TD: | 2300 ft. | Measured PB depth: | 2218 ft. | True Vertical TD: | | True Vertical PB depth: | | Log Types: | AIL/GR/TLD/CSN/CAL, CBL, TEMPERATURE | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 469 ft., Weight: 24 , Citings Type: ACTUAL | Cement: | Sacks: 230, Top: 0 ft., Bottom: 469 ft., Determination Method: CALC | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2264 ft., Weight: 15.5 , Citings Type: ACTUAL | Cement: | Sacks: 470, Top: 0 ft., Bottom: 2264 ft., Determination Method: CBL | Formation | Interval Top | Log Bottom | Cored | DSTs | RATON COAL | 0 ft. | 1356 ft. | N | N | VERMEJO COAL | 1495 ft. | 1748 ft. | N | N | TRINIDAD | 1748 ft. | 1908 ft. | N | N | PIERRE | 1908 ft. | 2280 ft. | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 7/1/2011 Interval Top: 1447 ft. Interval Bottom: 1700 ft. Completed Information for Formation RATON-VERMEJO COALS | 1st Production Date: | N/A | Choke Size: | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | Production Method: | | Open Hole Completion: | No |
| Formation Treatment | Treatment Date: | 2/26/2005 | Treatment Summary: | A W/500 GALS 15% HCL AC. FRAC'D W/54,750 GALS 20# DELTA 140 W/SANDWEDGE NT CARRYING 19,600# 16/30 & 60,500# 12/20 SD. W/500 GALS 15% HCL AC. FRAC'D W/52,919 GALS 20# DELTA 140 W/SANDWEDGE NT CARRYING 24,200# 16/30 & 84,800# 12/20 SD. |
| Tubing Size: | | Tubing Setting Depth: | | Tubing Packer Depth: | | Tubing Multiple Packer: | | Open Hole Top: | | Open Hole Bottom: | | Initial Test Data: | Test Date: | 2/26/2005 | Test Method: | PUMPING | Hours Tested: | 24 | Gas Type: | | Gas Disposal: | | |
Test Type | Measure |
---|
BBLS_H2O | 61 | BBLS_OIL | 0 | CALC_BBLS_H2O | 61 | CALC_BBLS_OIL | 0 | CALC_MCF_GAS | 2 | CASING_PRESS | 1 | MCF_GAS | 2 | TUBING_PRESS | 0 |
| Perforation Data: | Interval Top: | 1447 ft. | # Of Holes: | 40 | Interval Bottom: | 1700 ft. | Hole Size: | 0.4 in. |
|
|
|
|
|
Reported Plugged | N | |
Out Of Service Repurposed | N | |
Out Of Service | N | |
Inactive Exception | N | |
Noticed Inactive | N | |
Defined Inactive | N | |
Low Producing | Y | Production Period 05/2024 - 04/2025 |
Total Oil Produced (Barrels) | 0 |
Total Gas Produced (MCF) | 3462 |
GOR | |
GOR Determination | MCFE |
Average BOE per Day | 1.635 |
Average MCFE per Day | 9.479 |
Federal Financial Assurance | i | |
|
|
