COGIS - WELL SCOUT CARD

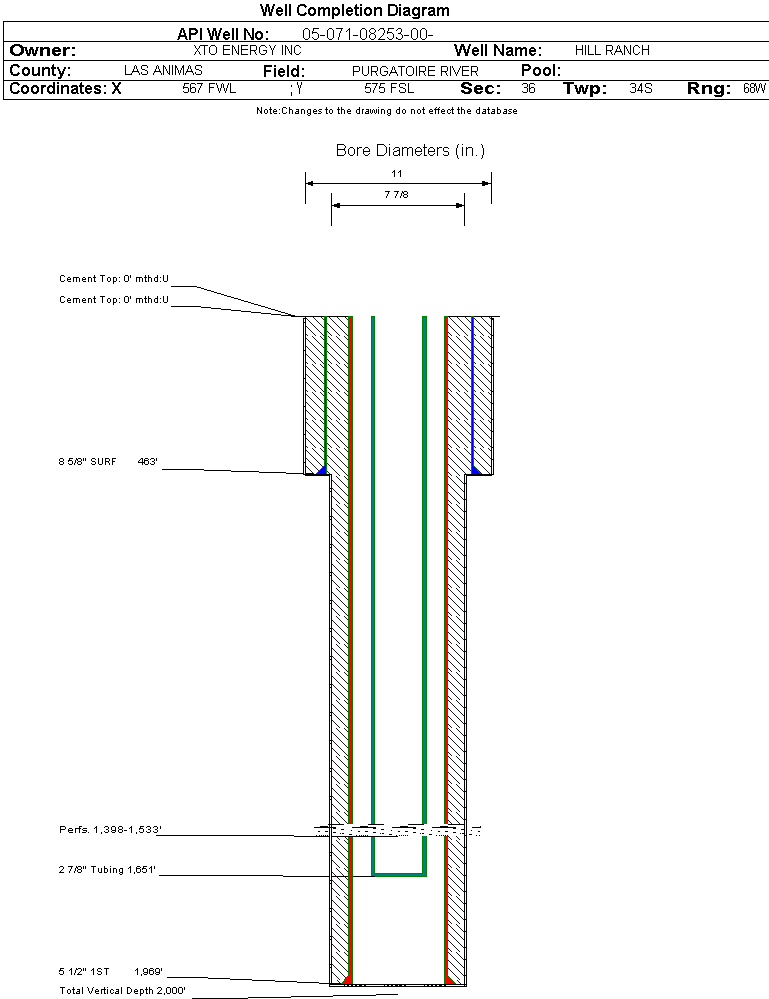

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-08253
Well Classification: GW Status: PR - 4/25/2005
Well Name/No:HILL RANCH #36-13
(Click Well Name for Production Data)
Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)
Federal Or State Lease #:
Facility Status:PRStatus Date4/25/2005
FacilityID:274793LocationID:308576
County:LAS ANIMAS #071Location:SWSW 36 34S68W 6
Field:PURGATOIRE RIVER - #70830Elevation:8351 ft.
Planned Location:575FSL  567 FWLLat/Long: 37.035024 / -104.953771Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.035000 / -104.953790Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/25/2005             Measured TD: 2000 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/25/2005
Wellbore Permit
Permit #:20042844 Expiration Date:11/21/2005
Proposed Depth/Form:1850 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:

Wellbore Completed
Completion Date:4/28/2005
Spud Date:12/12/2004Spud Date Is:ACTUAL
Measured TD:2000 ft.Measured PB depth:1925 ft.
True Vertical TD:True Vertical PB depth:
Log Types:AIL/GR/TLD/CSN/CAL/CBL/CLL, TEMPERATURE LOG
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 463 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 0 ft., Bottom: 463 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1969 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 423, Top: 0 ft., Bottom: 1969 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1220 ft.NN
VERMEJO COAL1302 ft.1590 ft.NN
TRINIDAD1590 ft.1754 ft.NN
PIERRE1754 ft.1996 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  PR - 4/25/2005                 Interval Top: 1398 ft.    Interval Bottom: 1533 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:N/AChoke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/28/2005
Treatment Summary:ACIDIZED W/500 GALS 15% HCL ACID. FRAC'D W/37,308 GALS 20# DELTA 140 W/SANDWEDGE NT CARRYING 19,000# 16/30 & 40,000# 12/20 BRADY SD. ACIDIZED W/500 GALS 15% HCL ACID. FRAC'D W/74,134 GALS 20# DELTA 140 W/SANDWEDGE NT CARRYING 19,000# 16/30 & 165,500# 12/2
Tubing Size:2.875 in.Tubing Setting Depth:1651 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/25/2005Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 190
BBLS_OIL 0
CALC_BBLS_H2O 190
CALC_BBLS_OIL 0
CALC_MCF_GAS 2
CASING_PRESS 17
MCF_GAS 2
TUBING_PRESS 5
Perforation Data:
Interval Top:1398 ft.# Of Holes:39
Interval Bottom:1533 ft.Hole Size:0.4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)22839
GOR
GOR DeterminationMCFE
Average BOE per Day10.784
Average MCFE per Day62.561

 Federal Financial Assurance  i

 Tribal Well  i No
