Wellbore #00 Wellbore Classification: GW Status: PR - 11/10/2004 Measured TD: 1675 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/10/2004 | | Wellbore Permit | | | Permit #: | 20042845 | Expiration Date: | 11/21/2005 | | Proposed Depth/Form: | 1650 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

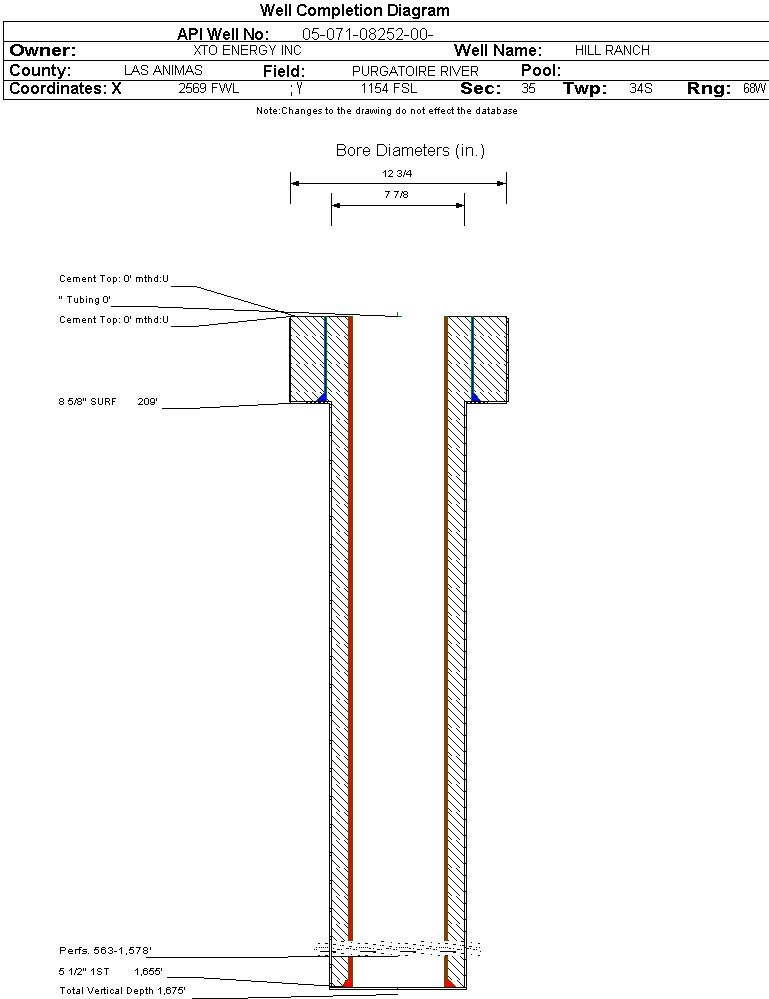

| Wellbore Completed | | Completion Date: | 4/22/2005 | | Spud Date: | 12/10/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 1675 ft. | Measured PB depth: | 1613 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | GR/CBL/CCL | | Casing: | String Type: SURF, Hole Size: 12.75 in., Size: 8.625 in., Top: 0 ft., Depth: 209 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 108, Top: 0 ft., Bottom: 209 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1655 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 490, Top: 0 ft., Bottom: 1655 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1421 ft. | N | N | | VERMEJO COAL | 1500 ft. | 1678 ft. | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 7/1/2011 Interval Top: 563 ft. Interval Bottom: 1578 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/22/2005 | | Treatment Summary: | ACIDIZED W/500 GALS 15% HCL ACID. FRAC'D W/46,193 GALS 20# DELTA 140 W/SANDWEDGE NT CARRYING 103,000# 16/30 BRADY SAND. ACIDIZED W/500 GALS 15% HCL ACID. FRAC'D W/46,905 GALS 20# DELTA 140 W/SANDWEDGE NT CARRYING 22,000# 16/30 & 60,600# CON'T |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/22/2005 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 45 | | BBLS_OIL | 0 | | CASING_PRESS | 3 | | MCF_GAS | 0 | | TUBING_PRESS | 5 |
| | Perforation Data: | | Interval Top: | 563 ft. | # Of Holes: | 60 | | Interval Bottom: | 1578 ft. | Hole Size: | 0.4 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 26654 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 12.585 |
| Average MCFE per Day | 73.015 |
| Federal Financial Assurance | i | |
|
|
