Wellbore #00 Wellbore Classification: CBM Status: PR - 8/14/2011 Measured TD: 2450 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 8/14/2011 | | Wellbore Permit | | | Permit #: | | Expiration Date: | 7/7/2005 | | Proposed Depth/Form: | 2800 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

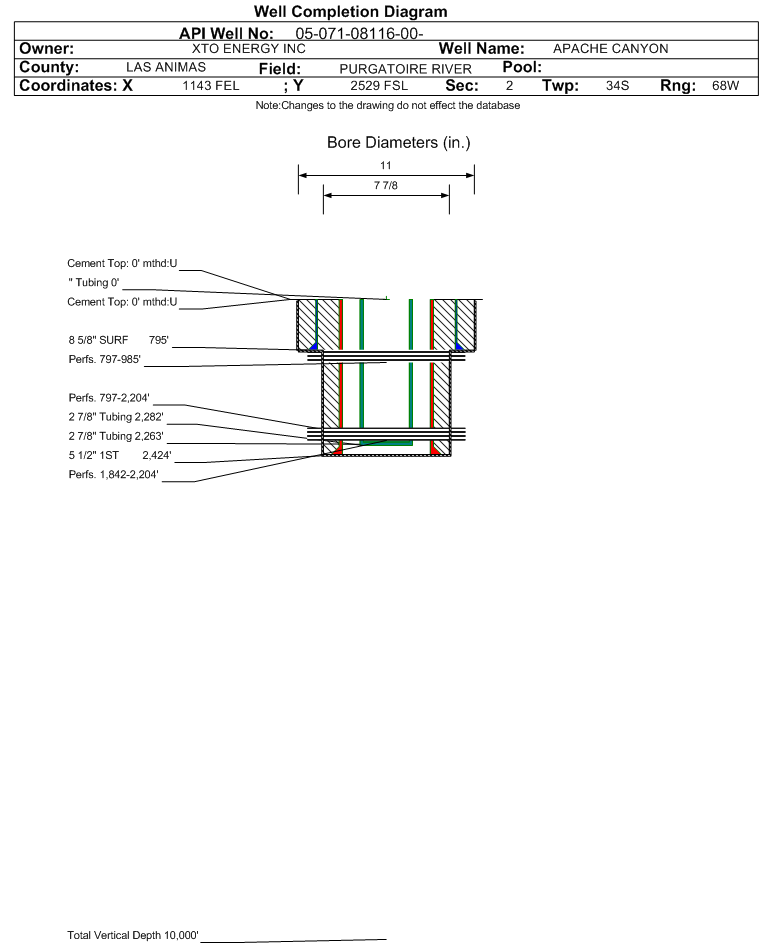

| Wellbore Completed | | Completion Date: | 9/2/2004 | | Spud Date: | 7/29/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 2450 ft. | Measured PB depth: | 2379 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | AIL/GR/TLD/CSN/CBL, TEMPERATURE | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 795 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 265, Top: 0 ft., Bottom: 795 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2424 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 570, Top: 0 ft., Bottom: 2424 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1761 ft. | N | N | | VERMEJO COAL | 1833 ft. | 2192 ft. | N | N | | TRINIDAD | 2192 ft. | 2441 ft. | N | N |
Formation VRMJ Formation Classification: GW Status: CM - 9/2/2004 Interval Top: 1842 ft. Interval Bottom: 2204 ft.| Completed Information for Formation VERMEJO COAL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | VERMEJO COAL | Commingled: | No | | Production Method: | PUMPING | | Open Hole Completion: | No |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2263 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/2/2004 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 93 | | CASING_PRESS | 0 | | MCF_GAS | 94 | | TUBING_PRESS | 0 |
| | Perforation Data: | | Interval Top: | 1842 ft. | # Of Holes: | 52 | | Interval Bottom: | 2204 ft. | Hole Size: | 0.4 in. |
|
Formation RT-VJ Formation Classification: GW Status: PR - 8/14/2011 Interval Top: 797 ft. Interval Bottom: 2204 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 8/13/2011 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2282 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/14/2011 | Test Method: | Pumping | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 3 | | BTU_GAS | 1005 | | CALC_BBLS_H2O | 3 | | CALC_MCF_GAS | 12 | | CASING_PRESS | 4 | | MCF_GAS | 12 | | TUBING_PRESS | 1 |
| | Perforation Data: | | Interval Top: | 797 ft. | # Of Holes: | 85 | | Interval Bottom: | 2204 ft. | Hole Size: | 0.42 in. |
|
Formation RTON Formation Classification: GW Status: CM - 10/17/2011 Interval Top: 797 ft. Interval Bottom: 985 ft.| Completed Information for Formation RATON COAL | | 1st Production Date: | 8/13/2011 | Choke Size: | | | Formation Name: | RATON COAL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/1/2011 | | Treatment Summary: | Acidized w/1,000 gals 15% HCl acid. Frac'd w/47,029 gals 20# Delta 140 w/Sandwedge OS carrying 159,598# 16/30 Nebraska sd. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation RTON. |
| | Perforation Data: | | Interval Top: | 797 ft. | # Of Holes: | 33 | | Interval Bottom: | 985 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 12677 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 5.986 |
| Average MCFE per Day | 34.730 |
| Federal Financial Assurance | i | |
|
|
