COGIS - WELL SCOUT CARD

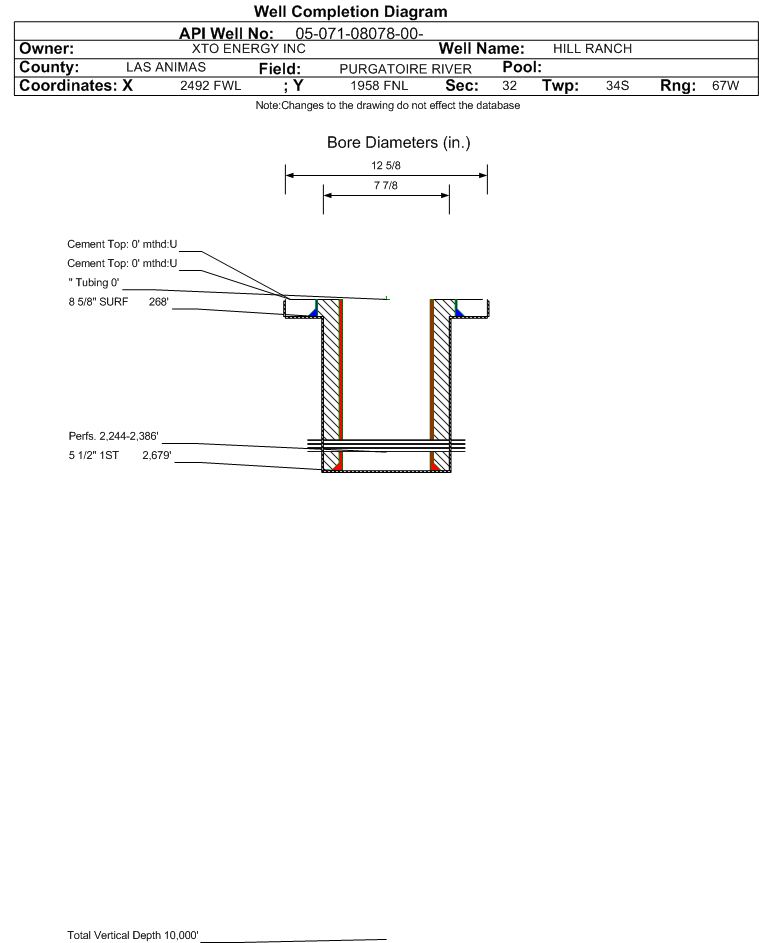

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-08078
Well Classification: OBW Status: PA - 11/22/2022
Well Name/No:HILL RANCH #32-06
(Click Well Name for Production Data)
Click Here for Transporter Gatherer Info
Operator:XTO ENERGY INC - 100264
(Click Operator Name for Company Detail Report)
Federal Or State Lease #:
Facility Status:PAStatus Date11/22/2022
FacilityID:272460LocationID:333928
County:LAS ANIMAS #071Location:SENW 32 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8168 ft.
Planned Location:1958FNL  2492 FWLLat/Long: 37.042654 / -104.911720Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.042650 / -104.911740Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 11/22/2022             Measured TD: 2750 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 11/22/2022
Wellbore Permit
Permit #:20041066 Expiration Date:5/26/2005
Proposed Depth/Form:2800 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:

Wellbore Completed
Completion Date:7/13/2004
Spud Date:7/11/2004Spud Date Is:ACTUAL
Measured TD:2750 ft.Measured PB depth:2634 ft.
True Vertical TD:True Vertical PB depth:
Log Types:AIL , TLD / CSN , GR / CBL
Log Types:
Casing:String Type: CONDUCTOR, Hole Size: 15 in., Size: 12.75 in., Top: 0 ft., Depth: 22 ft., Weight: 48 , Citings Type: ACTUAL
Cement:Sacks: 5, Top: 0 ft., Bottom: 11 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 268 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 135, Top: 0 ft., Bottom: 268 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2679 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 1836 ft., Bottom: 2679 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1836 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 158, Top: 790 ft., Bottom: 1836 ft., Determination Method: CBL
Casing:String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 770 ft., Determination Method: VISU
Casing:String Type: 3RD, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2679 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 1836 ft., Bottom: 2679 ft., Determination Method: CBL
Additional Cement:String Type: 1ST , Top: 0 ft., Depth: 770 ft., Bottom: 770 ft., Sacks: , Method: SQUEEZE
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.2126 ft.NN
VERMEJO COAL2177 ft.2477 ft.NN
TRINIDAD2477 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  AB - 11/22/2022                Interval Top: 2244 ft.    Interval Bottom: 2386 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:N/AChoke Size:
Formation Name:VERMEJO COALCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Type:
Treatment Date:7/6/2012Treatment End Date:N/A
Treatment Summary:Status Change Only
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Formation Treatment
Treatment Date:4/8/2005
Treatment Summary:W/1000 GALS.15% HCL ACID. FRAC'D W/91755 GAL 20# DELTA 140 CARRYING 39,000# 16/30 & 109,000# 12/20 BRADY SD.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 27
CASING_PRESS 27
TUBING_PRESS 3
Perforation Data:
Interval Top:2244 ft.# Of Holes:44
Interval Bottom:2386 ft.Hole Size:0.4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/22/2022
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
