Wellbore #00 Wellbore Classification: GW Status: PR - 4/1/2021 Measured TD: 1900 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/1/2021 | | Wellbore Permit | | | Permit #: | 20041071 | Expiration Date: | 5/26/2005 | | Proposed Depth/Form: | 2800 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

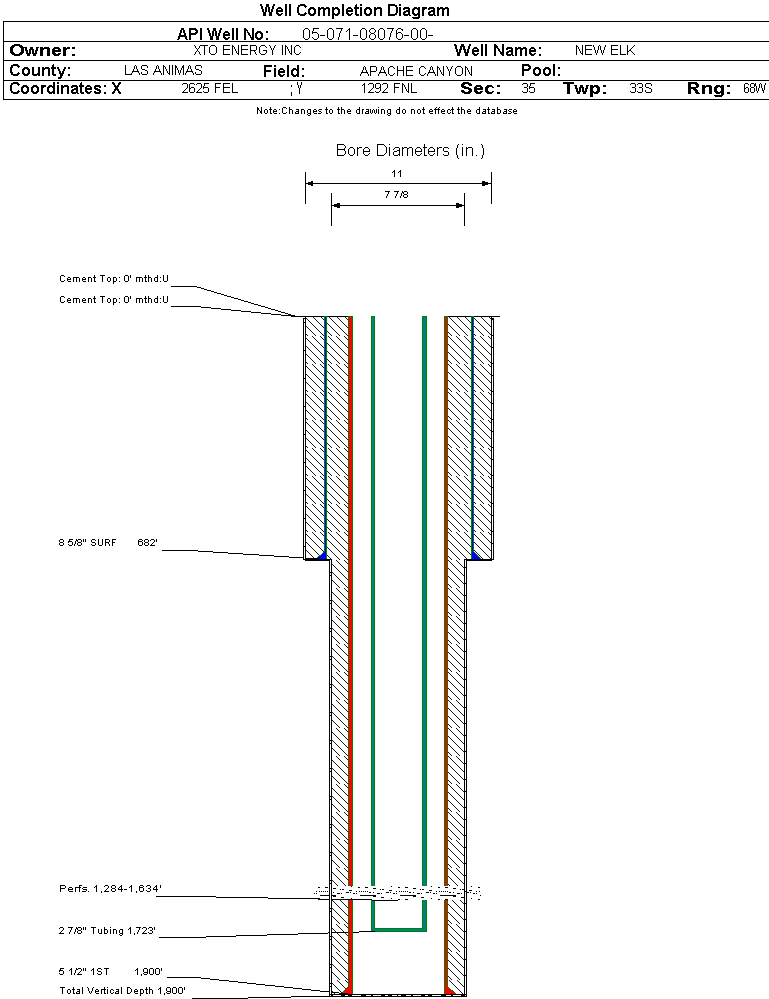

| Wellbore Completed | | Completion Date: | 9/10/2004 | | Spud Date: | 7/26/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 1900 ft. | Measured PB depth: | 1878 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | AIL -GR, TLD-CSN(2 RUNS), CBL, HIGH RES DENSITY, TEMPERATURE, DENSITY-NEUTRON (2 SCALES) | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 682 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 305, Top: 0 ft., Bottom: 682 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1900 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 270, Top: 0 ft., Bottom: 1900 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1254 ft. | N | N | | VERMEJO COAL | 1324 ft. | 1660 ft. | N | N | | TRINIDAD | 1660 ft. | 1903 ft. | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 4/1/2021 Interval Top: 1284 ft. Interval Bottom: 1634 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/10/2004 | | Treatment Summary: | W/1500 GALS 15% HCL ACID. FRAC'D W/130,004 GAL 20# DELTA 140 W/SANDWEDGE NT CARRYING 142,000# 16/30 & 130,000# 12/20 BRADY SD. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 1723 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/11/2004 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 133 | | CALC_BBLS_H2O | 133 | | CALC_MCF_GAS | 84 | | CASING_PRESS | 3 | | MCF_GAS | 84 | | TUBING_PRESS | 4 |
| | Perforation Data: | | Interval Top: | 1284 ft. | # Of Holes: | 60 | | Interval Bottom: | 1634 ft. | Hole Size: | 0.4 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 38263 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 17.793 |
| Average MCFE per Day | 103.222 |
| Federal Financial Assurance | i | |
|
|
