COGIS - WELL SCOUT CARD

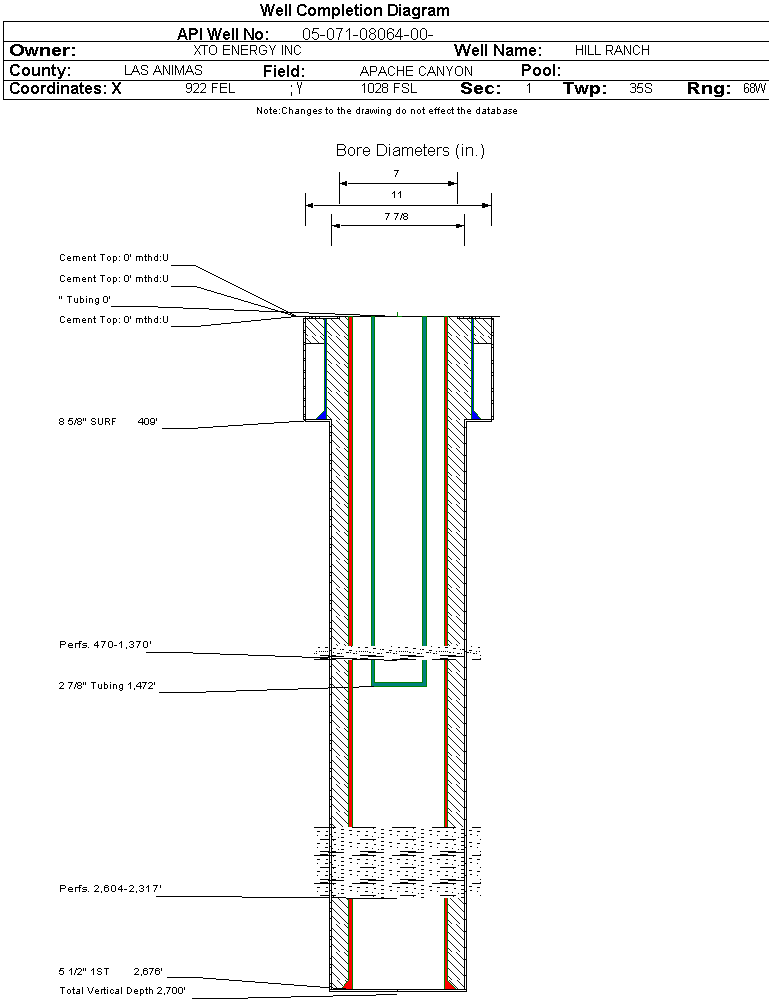

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-08064		Well Classification: CBM Status: PR - 10/31/2007
Well Name/No:HILL RANCH #1-16
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/31/2007
FacilityID:272339LocationID:308454
County:LAS ANIMAS #071Location:SESE 1 35S68W 6
Field:PURGATOIRE RIVER - #70830Elevation:8546 ft.
Basin:RATON BASIN
Planned Location:1028FSL  922 FELLat/Long: 37.021854 / -104.940780Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.021860 / -104.940740Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 10/31/2007             Measured TD: 2700 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 10/31/2007
Wellbore Permit
Permit #:20040923 Expiration Date:5/20/2005
Proposed Depth/Form:2800 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:9/22/2004
Spud Date:7/7/2004Spud Date Is:ACTUAL
Measured TD:2700 ft.Measured PB depth:2607 ft.
True Vertical TD:True Vertical PB depth:
Log Types:AIL/TLD/CSN & GR/CBL, TEMPERATURE LOG
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 409 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 203, Top: 0 ft., Bottom: 109 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2676 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 502, Top: 0 ft., Bottom: 2676 ft., Determination Method: CBL
Casing:String Type: 2ND, Hole Size: 7 in., Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1964 ft.NN
VERMEJO COAL2046 ft.2357 ft.NN
TRINIDAD2357 ft.2691 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  CM - 10/31/2007                Interval Top: 2317 ft.    Interval Bottom: 2604 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:9/22/2004Choke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/7/2004
Treatment Summary:ACIDIZED W/1500 GALS 15% HCL ACID. FRAC'D W/158,311 GALS 20# DELTA 140 W/SANDWEDGE NT CARRYING 58,500# 16/30 AND 159,500 # 12/20 BRADY SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/23/2004Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 135
CALC_BBLS_H2O 135
CALC_MCF_GAS 0
CASING_PRESS 2
MCF_GAS 0
TUBING_PRESS 38
Perforation Data:
Interval Top:2317 ft.# Of Holes:48
Interval Bottom:2604 ft.Hole Size:0.4 in.

Formation RTON                     Formation Classification:  GW                     Status:  CM - 12/7/2006                 Interval Top: 470 ft.    Interval Bottom: 1370 ft.

 Completed Information for Formation RATON COAL
1st Production Date:12/6/2006Choke Size:
Formation Name:RATON COALCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/13/2006
Treatment Summary:ACIDIZED W/2250 GALS 15% HCL ACID. FRAC'D W/152,438 GALS 20# DELTA 140 W/SANDWEDGE NT CARRYING 16,600# 16/30 BRADY SAND AND 327,213# 12/20 BRADY SAND.
Tubing Size:2.875 in.Tubing Setting Depth:1472 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/7/2006Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 90
BTU_GAS 998
CALC_BBLS_H2O 90
CALC_MCF_GAS 1
CASING_PRESS 1
GRAVITY_OIL 1
MCF_GAS 1
TUBING_PRESS 4
Perforation Data:
Interval Top:470 ft.# Of Holes:60
Interval Bottom:1370 ft.Hole Size:0.45 in.

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 12/7/2006

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:12/7/2006Choke Size:
Formation Name:RATON-VERMEJO COALSCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RT-VJ.
No Perforation Data was found for formation RT-VJ.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)7264
GOR
GOR DeterminationMCFE
Average BOE per Day3.425
Average MCFE per Day19.872

 Federal Financial Assurance  i

 Tribal Well  i No
