Wellbore #00 Wellbore Classification: CBM Status: PR - 5/6/2020 Measured TD: 2400 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 5/6/2020 | | Wellbore Permit | | | Permit #: | 20040885 | Expiration Date: | 4/29/2005 | | Proposed Depth/Form: | 2800 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

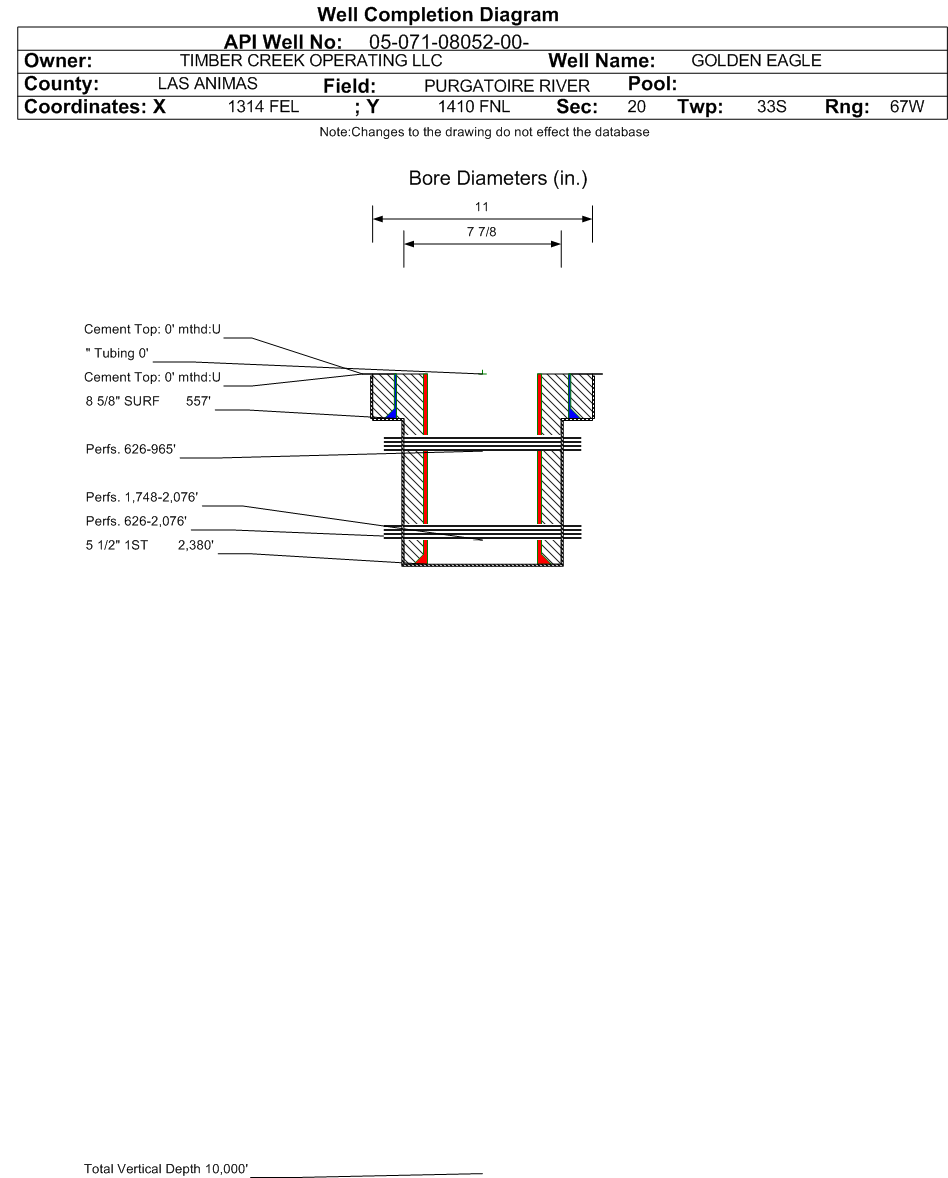

| Wellbore Completed | | Completion Date: | 10/29/2004 | | Spud Date: | 5/19/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 2400 ft. | Measured PB depth: | 2346 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | AIL/TLD/CSN & GR/CBL | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: , Depth: 557 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 250, Top: 0 ft., Bottom: 557 ft., Determination Method: CBL | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 2380 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 364, Top: 0 ft., Bottom: 2380 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1600 ft. | N | N | | VERMEJO COAL | 1672 ft. | 2097 ft. | N | N | | TRINIDAD | 2097 ft. | 2391 ft. | N | N |
Formation VRMJ Formation Classification: GW Status: CM - 4/29/2020 Interval Top: 1748 ft. Interval Bottom: 2076 ft.| Completed Information for Formation VERMEJO COAL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | VERMEJO COAL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/29/2004 | | Treatment Summary: | SEE SCANNED DOC #01260032 |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 204 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 204 | | CASING_PRESS | 5 | | MCF_GAS | 0 | | TUBING_PRESS | 44 |
| | Perforation Data: | | Interval Top: | 1748 ft. | # Of Holes: | 58 | | Interval Bottom: | 2076 ft. | Hole Size: | 0.4 in. |
|
Formation RT-VJ Formation Classification: GW Status: PR - 5/6/2020 Interval Top: 626 ft. Interval Bottom: 2076 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 10/8/2018 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation RT-VJ. |
| | Perforation Data: | | Interval Top: | 626 ft. | # Of Holes: | 148 | | Interval Bottom: | 2076 ft. | Hole Size: | 0.4 in. |
|
Formation RTON Formation Classification: GW Status: CM - 10/22/2018 Interval Top: 626 ft. Interval Bottom: 965 ft.| Completed Information for Formation RATON COAL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | RATON COAL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/14/2018 | Treatment End Date: | 10/7/2018 | | Treatment Summary: | Perforate Raton Coal intervals with 3 SPF and 120 degree phasing listed by stage and fraced Raton Coal intervals including Stage 1 - 962' - 65', 892' - 94' and 875' - 83', Stage 2 - 848' - 51', 809' - 14', 772' - 73' and 765' - 68', Stage 3 - 650' - 53' and 626' - 28' (30' net or 90 holes). A total of 76,440 gallons of produced water with 66,990 gallons of x-link and 99,140 lbs of 16/30 sand were pumped. All three stages were pumped according to design.
The ECWS #28 rigged down and moved to next location. Well was cleaned out to PBTD and returned to production as a commingled Raton Vermejo well. | | Total fluid used in treatment (bbls): | 3415 | Max pressure during treatment (psi): | 2383 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 3 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.57 | | Recycled water used in treatment (bbls): | 3415 | Total flowback volume recovered (bbls): | 0 | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | | | Total proppant used (lbs): | 99140 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/22/2018 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 35 | | BTU_GAS | 996 | | CALC_BBLS_H2O | 35 | | CALC_MCF_GAS | 81 | | CASING_PRESS | 11 | | MCF_GAS | 81 |
| | Perforation Data: | | Interval Top: | 626 ft. | # Of Holes: | 90 | | Interval Bottom: | 965 ft. | Hole Size: | 0.4 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 6563 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 3.101 |
| Average MCFE per Day | 17.978 |
| Federal Financial Assurance | i | |
|
|
