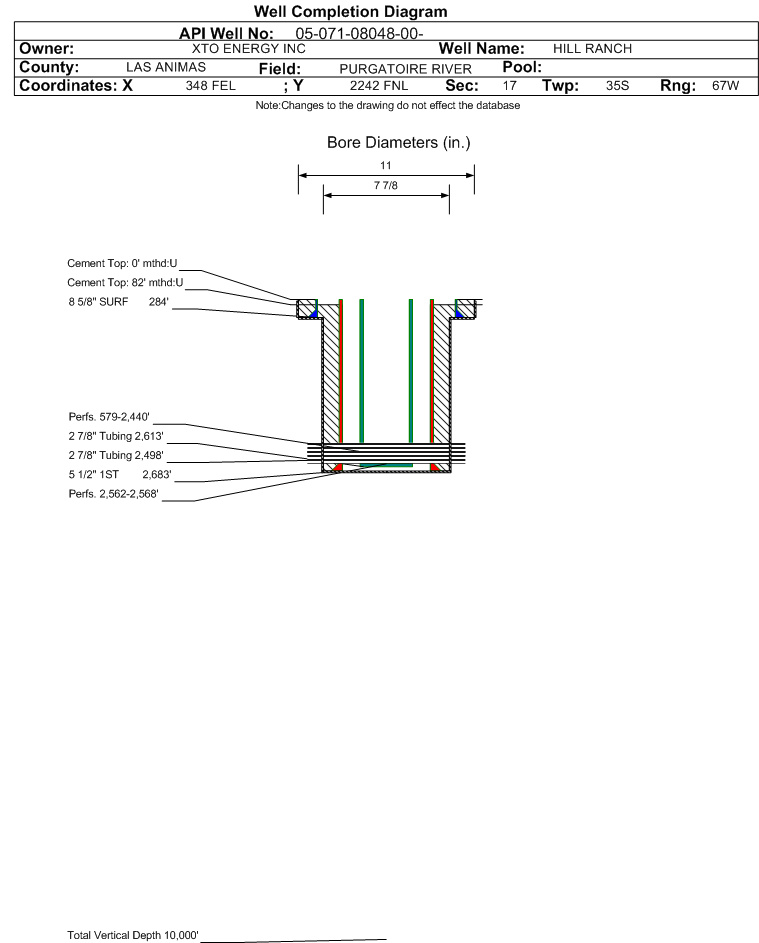

Wellbore #00 Wellbore Classification: CBM Status: PR - 9/1/2004 Measured TD: 2733 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 9/1/2004 | | Wellbore Permit | | | Permit #: | 20052688 | Expiration Date: | 9/14/2006 | | Proposed Depth/Form: | 2733 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: TRDD , Formation: TRINIDAD , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: , Depth: 284 ft., Weight: 23 , Citings Type: PLANNED | | Cement: | Sacks: 142, Top: 0 ft., Bottom: 255 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 2683 ft., Weight: 15.5 , Citings Type: PLANNED | | Cement: | Sacks: 100, Top: 82 ft., Bottom: 2683 ft. |
| | |
| Wellbore Completed | | Completion Date: | 8/21/2004 | | Spud Date: | 5/14/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 2733 ft. | Measured PB depth: | 2683 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | AIL / TLD / CSN / CBL | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 284 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 142, Top: 0 ft., Bottom: 284 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2683 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 82 ft., Bottom: 2683 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 2136 ft. | N | N | | VERMEJO COAL | 2210 ft. | 2515 ft. | N | N | | TRINIDAD | 2515 ft. | 0 ft. | N | N |
Formation TRDD Formation Classification: GW Status: SI - 5/1/2012 Interval Top: 2562 ft. Interval Bottom: 2568 ft.| Completed Information for Formation TRINIDAD | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | TRINIDAD | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/21/2004 | | Treatment Summary: | FRAC'D W/45,055 GALS 20# SELTA 140 CARRYING 114,001# 16/30 BRADY SD |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2613 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/21/2005 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 112 | | CALC_BBLS_H2O | 112 | | CASING_PRESS | 5 | | MCF_GAS | 0 | | TUBING_PRESS | 0 |
| | Perforation Data: | | Interval Top: | 2562 ft. | # Of Holes: | 35 | | Interval Bottom: | 2568 ft. | Hole Size: | 0.4 in. |
|
Formation RT-VJ Formation Classification: GW Status: PR - 9/1/2004 Interval Top: 579 ft. Interval Bottom: 2440 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 8/21/2004 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/4/2010 | | Treatment Summary: | NEW PERFS ADDED TO EXISTING RATON PERFS F/ 579' TO 1546 (86 HOLES, 0.45''). ACIDIZED W/ 4,300 GALS 15% HCI ACID. FRAC'D W/ 171,592 GALS 20# DELTA 140 W/SANDWEDGE OS CARRYING 23,793# 16/30 BRADY SND & 313,300# 12/20 BRADY SND. (CONT. NEXT PAGE) |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2498 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/7/2010 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 66 | | BTU_GAS | 1011 | | CALC_BBLS_H2O | 66 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 386 | | CASING_PRESS | 31 | | MCF_GAS | 386 | | TUBING_PRESS | 6 |
| | Perforation Data: | | Interval Top: | 579 ft. | # Of Holes: | 166 | | Interval Bottom: | 2440 ft. | Hole Size: | 0.45 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 43619 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 20.612 |
| Average MCFE per Day | 119.541 |
| Federal Financial Assurance | i | |
|
|
