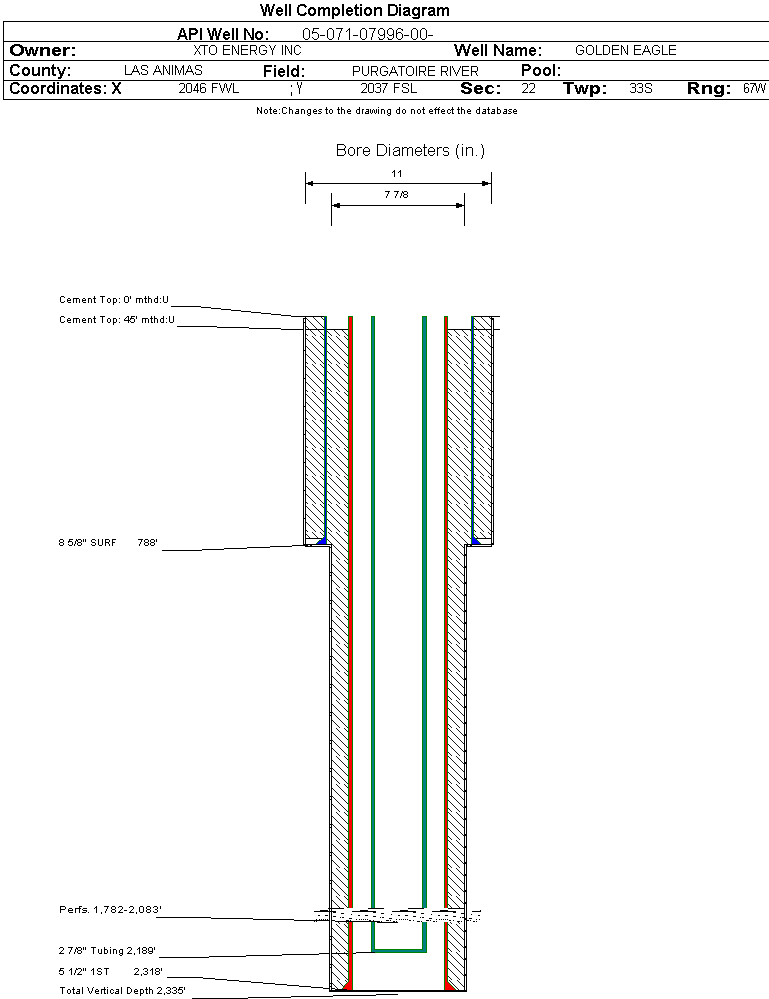

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07996		Well Classification: CBM Status: PR - 9/24/2004
Well Name/No:GOLDEN EAGLE #22-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/24/2004
FacilityID:271284LocationID:308415
County:LAS ANIMAS #071Location:NESW 22 33S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7535 ft.
Basin:RATON BASIN
Planned Location:2037FSL  2046 FWLLat/Long: 37.155682 / -104.876609Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.155890 / -104.876620Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 9/24/2004             Measured TD: 2335 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 9/24/2004
Wellbore Permit
Permit #:20040200 Expiration Date:2/18/2005
Proposed Depth/Form:2400 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:6/26/2004
Spud Date:3/13/2004Spud Date Is:ACTUAL
Measured TD:2335 ft.Measured PB depth:2282 ft.
True Vertical TD:True Vertical PB depth:
Log Types:AIL , TLD / CSN & GR / CBL, CALIPER-CEMENT VOLUME
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 788 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 330, Top: 0 ft., Bottom: 766 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2318 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 364, Top: 45 ft., Bottom: 2318 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1619 ft.NN
VERMEJO COAL1712 ft.2114 ft.NN
TRINIDAD2114 ft.2336 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  PR - 9/24/2004                 Interval Top: 1782 ft.    Interval Bottom: 2083 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:N/AChoke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:PUMPING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/26/2004
Treatment Summary:ACIDIZED W/900 GALS 15% HCL ACID. FRAC'D W/100,696 GALS 20# DELTA 140 W/SANDWDEGE NT CARRYING 9,000 # 20/40 & 91,900# 12/20 BRADY SAND.
Tubing Size:2.875 in.Tubing Setting Depth:2189 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/28/2004Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:
Test TypeMeasure
BBLS_H2O 112
CALC_BBLS_H2O 112
CALC_MCF_GAS 4
CASING_PRESS 20
MCF_GAS 4
TUBING_PRESS 4
Perforation Data:
Interval Top:1782 ft.# Of Holes:60
Interval Bottom:2083 ft.Hole Size:0.4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)12131
GOR
GOR DeterminationMCFE
Average BOE per Day5.735
Average MCFE per Day33.237

 Federal Financial Assurance  i

 Tribal Well  i No
