COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07992		Well Classification: CBM Status: PR - 1/20/2004
Well Name/No:APACHE CANYON #3-09-68
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/20/2004
FacilityID:271276LocationID:308412
County:LAS ANIMAS #071Location:NESE 3 34S68W 6
Field:PURGATOIRE RIVER - #70830Elevation:8582 ft.
Basin:RATON BASIN
Planned Location:2331FSL  266 FELLat/Long: 37.112183 / -104.974832Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.112170 / -104.974850Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 1/20/2004             Measured TD: 2600 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 1/20/2004
Wellbore Permit
Permit #:20040198 Expiration Date:2/17/2005
Proposed Depth/Form:2626 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:7/28/2004
Spud Date:3/24/2004Spud Date Is:ACTUAL
Measured TD:2600 ft.Measured PB depth:2572 ft.
True Vertical TD:True Vertical PB depth:
Log Types:EPETHERMAN NEUTRON-LITHO DENSITY, INDUCTION W/LINEAR EST, CEMENT BOND (1), CALIPER LOG, CALIPER LOG

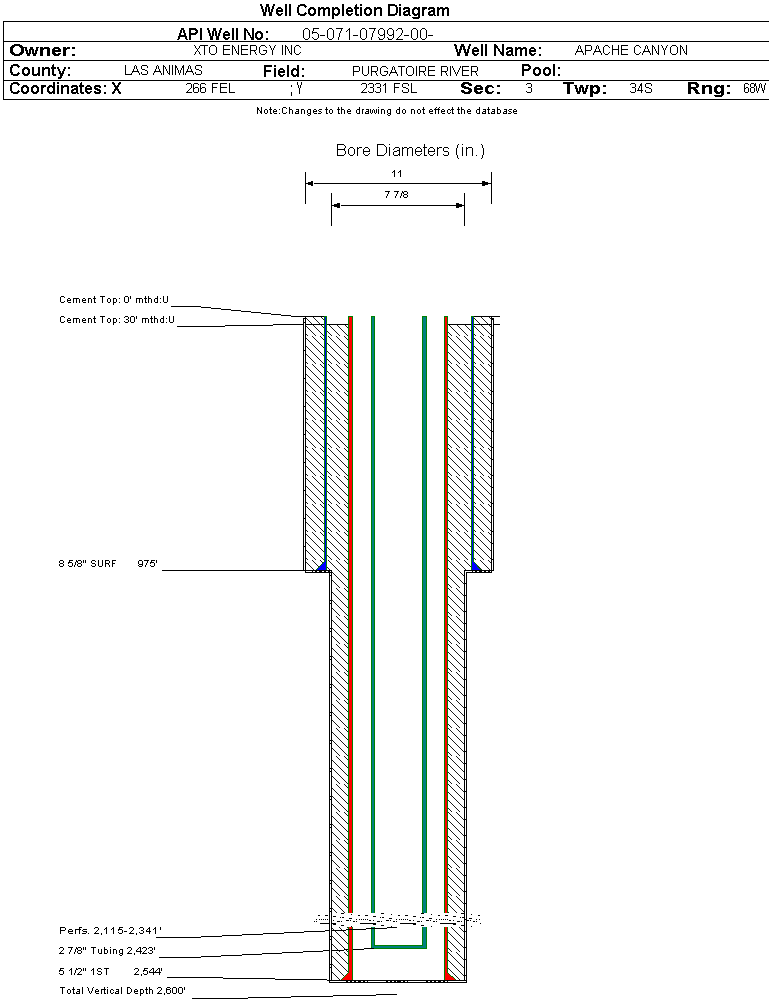

Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 975 ft., Weight: 20 , Citings Type: ACTUAL
Cement:Sacks: 395, Top: 0 ft., Bottom: 975 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2544 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 30 ft., Bottom: 2544 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.NN
VERMEJO COAL2054 ft.2366 ft.NN
TRINIDAD2366 ft.2580 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  PR - 8/3/2004                  Interval Top: 2115 ft.    Interval Bottom: 2341 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:N/AChoke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:30N095 PC PUMP
Open Hole Completion:No
Formation Treatment
Treatment Date:7/28/2004
Treatment Summary:SEE SCANNED DOC#1527164
Tubing Size:2.875 in.Tubing Setting Depth:2423 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/3/2004Test Method:FLOW
Hours Tested:15Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 55
CASING_PRESS 5
MCF_GAS 0
TUBING_PRESS 0
Perforation Data:
Interval Top:2115 ft.# Of Holes:56
Interval Bottom:2341 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)20474
GOR
GOR DeterminationMCFE
Average BOE per Day9.671
Average MCFE per Day56.095

 Federal Financial Assurance  i

 Tribal Well  i No
