COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07991		Well Classification: CBM Status: PR - 2/1/2022
Well Name/No:APACHE CANYON #14-4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/1/2022
FacilityID:271277LocationID:308411
County:LAS ANIMAS #071Location:NWNW 14 34S68W 6
Field:PURGATOIRE RIVER - #70830Elevation:8598 ft.
Planned Location:1252FNL  967 FWLLat/Long: 37.087873 / -104.970562Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.087880 / -104.970570Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 2/1/2022             Measured TD: 2500 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 2/1/2022
Wellbore Permit
Permit #:20040194 Expiration Date:2/17/2005
Proposed Depth/Form:2575 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:

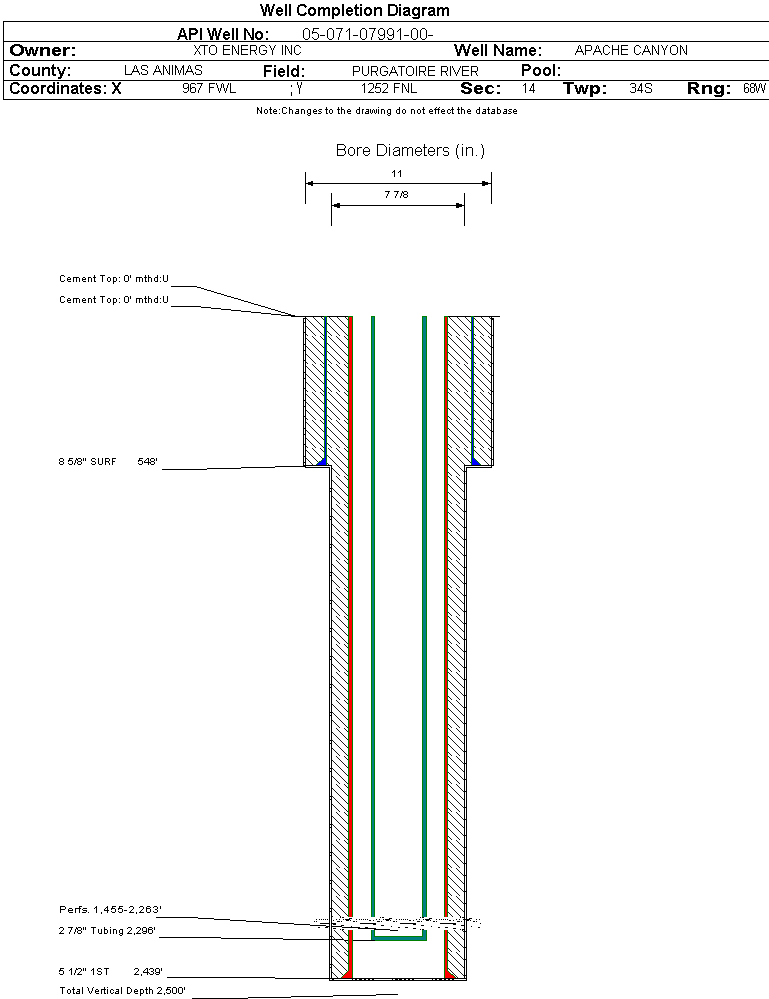

Wellbore Completed
Completion Date:3/4/2005
Spud Date:3/26/2004Spud Date Is:ACTUAL
Measured TD:2500 ft.Measured PB depth:2420 ft.
True Vertical TD:True Vertical PB depth:
Log Types:INDUCTION, NEITRON-DENSITY, GR/CBL / CCL & CEMENT VOLUME.
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: , Depth: 548 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 216, Top: 0 ft., Bottom: 548 ft., Determination Method: CBL
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 2439 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 2439 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1905 ft.NN
VERMEJO COAL1975 ft.2292 ft.NN
TRINIDAD2292 ft.NN

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 2/1/2022                  Interval Top: 1455 ft.    Interval Bottom: 2263 ft.

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:N/AChoke Size:
Formation Name:RATON-VERMEJO COALSCommingled:No
Production Method:PUMPING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/4/2005
Treatment Summary:A. W/1000 GALS. 15% HCL ACID. FRAC'D 97544 GALS. 20# DELTA 140 W/SW NT CARRYING 49000 16/30 & 129000# 12/20 BRADY SD.
Tubing Size:2.875 in.Tubing Setting Depth:2296 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/11/2004Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 72
CALC_BBLS_H2O 72
CALC_MCF_GAS 101
MCF_GAS 101
Perforation Data:
Interval Top:1455 ft.# Of Holes:43
Interval Bottom:2263 ft.Hole Size:0.4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)18000
GOR
GOR DeterminationMCFE
Average BOE per Day8.507
Average MCFE per Day49.318

 Federal Financial Assurance  i

 Tribal Well  i No
