Wellbore #00 Wellbore Classification: CBM Status: PR - 5/6/2020 Measured TD: 2415 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 5/6/2020 | | Wellbore Permit | | | Permit #: | 20030167 | Expiration Date: | 2/11/2004 | | Proposed Depth/Form: | 2800 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: , Depth: 325 ft., Weight: 23 , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 325 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 2800 ft., Weight: 15.5 , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 2800 ft. |
| | |
| Wellbore Completed | | Completion Date: | 9/19/2003 | | Spud Date: | 8/19/2003 | Spud Date Is: | ACTUAL | | Measured TD: | 2415 ft. | Measured PB depth: | 2396 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1833 ft. | N | N | | VERMEJO COAL | 1941 ft. | 2248 ft. | N | N | | TRINIDAD | 2248 ft. | 2414 ft. | N | N |
Formation VRMJ Formation Classification: GW Status: CM - 4/29/2020 Interval Top: 1979 ft. Interval Bottom: 2226 ft.| Completed Information for Formation VERMEJO COAL | | 1st Production Date: | 9/25/2003 | Choke Size: | | | Formation Name: | VERMEJO COAL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/5/2006 | | Treatment Summary: | ACIDIZED W/1000 GALS 15% HCI ACID. FRAC'D W/110,099 GALS DELTA 140 W/SANDWEDGE NT CARRYING 169,600# 16/30 BRADY SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 51 | | BTU_GAS | 1006 | | CALC_BBLS_H2O | 51 | | CALC_MCF_GAS | 21 | | CASING_PRESS | 47 | | GRAVITY_OIL | 1 | | MCF_GAS | 21 | | TUBING_PRESS | 3 |

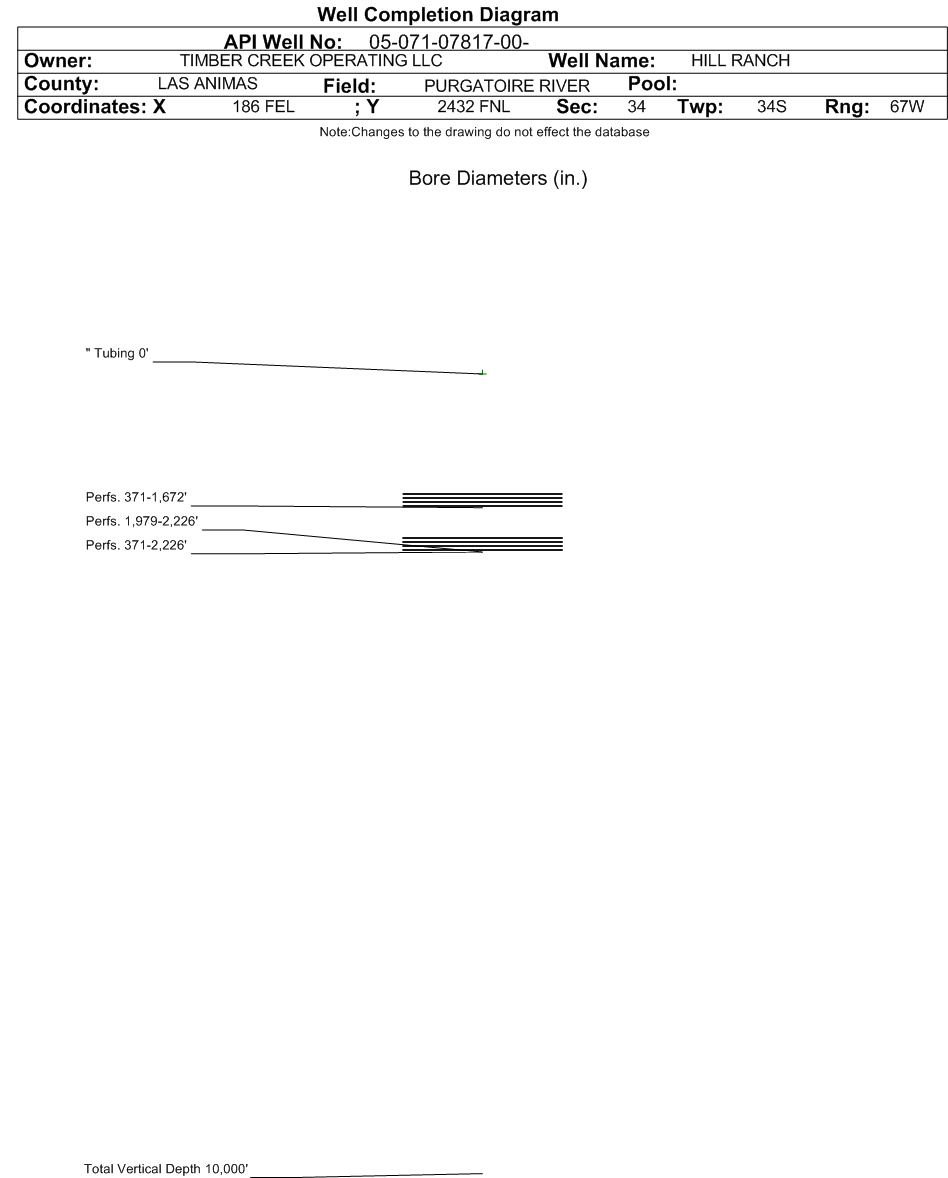

| | Perforation Data: | | Interval Top: | 1979 ft. | # Of Holes: | 27 | | Interval Bottom: | 2226 ft. | Hole Size: | 0.4 in. |
|
Formation RT-VJ Formation Classification: GW Status: PR - 5/6/2020 Interval Top: 371 ft. Interval Bottom: 2226 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 10/4/2018 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation RT-VJ. |
| | Perforation Data: | | Interval Top: | 371 ft. | # Of Holes: | 135 | | Interval Bottom: | 2226 ft. | Hole Size: | 0.4 in. |
|
Formation RTON Formation Classification: GW Status: CM - 10/12/2018 Interval Top: 371 ft. Interval Bottom: 1672 ft.| Completed Information for Formation RATON COAL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | RATON COAL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 7/26/2018 | Treatment End Date: | 10/3/2018 | | Treatment Summary: | Perforate Raton Coal intervals with 3 SPF and 120 degree phasing listed by stage and fraced Raton Coal intervals including Stage 1 - 1670' - 72', 1478' - 80' and 1322' - 23', Stage 2 - 1209' - 10', 1190' - 92' and 1139' - 41', Stage 3 - 1128' - 31', 1035' - 38' and 1000' - 01', Stage 4 - 934' - 36', 844' - 45', 832' - 34', 823' - 26', 729' - 31' and 707' - 09', Stage 5 - 606' - 08', 452' - 53', 403' - 05' and 371' - 73' (36' net or 108 holes). A total of 176,400 gallons of produced water with 113,022 gallons of x-link and 150,555 lbs of 20/40 sand were pumped. All five stages were pumped according to design.
The ECWS #28 rigged down and moved to next location. Well was cleaned out to PBTD and returned to production as a commingled Raton Vermejo well. | | Total fluid used in treatment (bbls): | 6891 | Max pressure during treatment (psi): | 3477 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.30 | | Type Of gas: | | Number Of staged intervals: | 5 | | Total acid used in treatment (bbls): | 0 | Min frac gradient (psi/ft): | 0.42 | | Recycled water used in treatment (bbls): | 6891 | Total flowback volume recovered (bbls): | 0 | | Fresh water used in treatment (bbls): | 0 | Disposition method For flowback: | | | Total proppant used (lbs): | 150555 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/12/2018 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1 | | BTU_GAS | 993 | | CALC_BBLS_H2O | 1 | | CALC_MCF_GAS | 8 | | MCF_GAS | 8 |
| | Perforation Data: | | Interval Top: | 371 ft. | # Of Holes: | 108 | | Interval Bottom: | 1672 ft. | Hole Size: | 0.4 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 21970 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 10.380 |
| Average MCFE per Day | 60.187 |
