Wellbore #00 Wellbore Classification: CBM Status: PR - 10/23/2013 Measured TD: 2540 ft. Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 10/23/2013 | Wellbore Permit | | Permit #: | 20030164 | Expiration Date: | 2/11/2004 | Proposed Depth/Form: | 2800 ft. | Surface Mineral Owner Same: | Yes | Mineral Owner: | FEE | Surface Owner: | FEE | Unit: | | Unit Number: | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

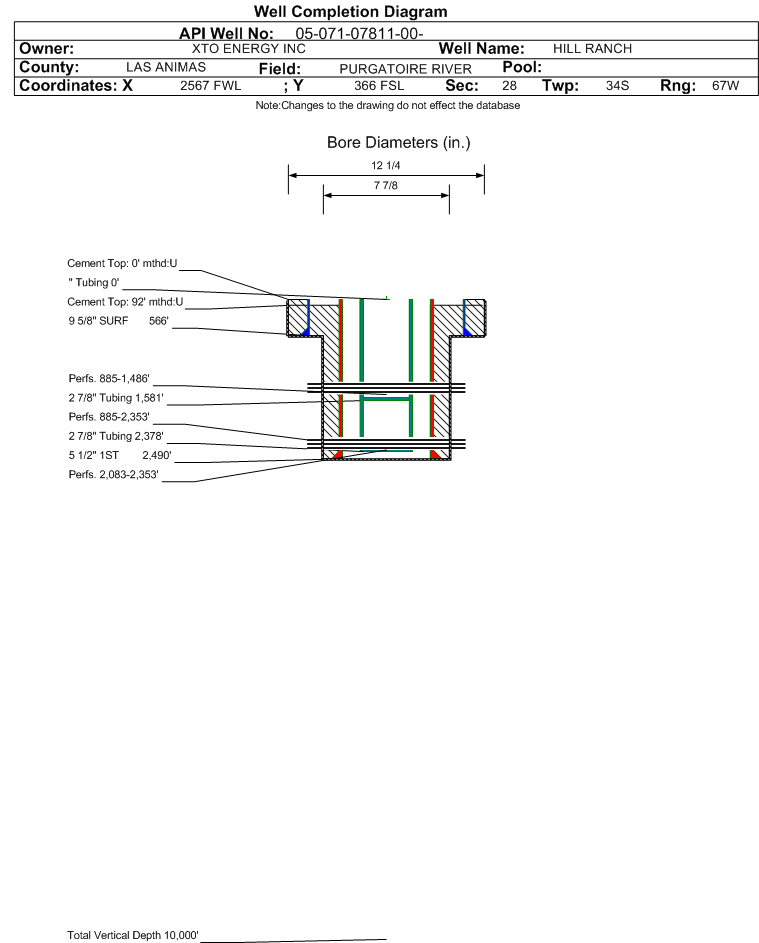

Wellbore Completed | Completion Date: | 9/26/2003 | Spud Date: | 8/21/2003 | Spud Date Is: | ACTUAL | Measured TD: | 2540 ft. | Measured PB depth: | 2463 ft. | True Vertical TD: | | True Vertical PB depth: | | Log Types: | EPITHERMAL NEUT. LITHO DENSITY, ARRAY INDUCTION, CEMENT BOND | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 566 ft., Weight: 36 , Citings Type: ACTUAL | Cement: | Sacks: 255, Top: 0 ft., Bottom: 566 ft., Determination Method: | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2490 ft., Weight: 15.5 , Citings Type: ACTUAL | Cement: | Sacks: 365, Top: 92 ft., Bottom: 2490 ft., Determination Method: CBL | Formation | Interval Top | Log Bottom | Cored | DSTs | RATON COAL | 0 ft. | 2082 ft. | N | N | VERMEJO COAL | 2082 ft. | 2376 ft. | N | N | TRINIDAD | 2376 ft. | 2530 ft. | N | N |
Formation VRMJ Formation Classification: GW Status: CM - 10/22/2013 Interval Top: 2083 ft. Interval Bottom: 2353 ft. Completed Information for Formation VERMEJO COAL | 1st Production Date: | N/A | Choke Size: | | Formation Name: | VERMEJO COAL | Commingled: | | Production Method: | | Open Hole Completion: | No |
| Formation Treatment | Treatment Date: | 5/17/2005 | Treatment Summary: | 2005 Status Changed missed filing on original Doc #01421536 | Formation Treatment | Treatment Date: | 9/26/2003 | Treatment Summary: | SEE SCANNED DOC# 1159443 |
| Tubing Size: | | Tubing Setting Depth: | | Tubing Packer Depth: | | Tubing Multiple Packer: | | Open Hole Top: | | Open Hole Bottom: | | Initial Test Data: | Test Date: | N/A | Test Method: | | Hours Tested: | | Gas Type: | | Gas Disposal: | | |
Test Type | Measure |
---|
BBLS_H2O | 100 | BTU_GAS | 1000 | CALC_BBLS_H2O | 100 | CALC_MCF_GAS | 0 | MCF_GAS | 0 |
| Perforation Data: | Interval Top: | 2083 ft. | # Of Holes: | 63 | Interval Bottom: | 2353 ft. | Hole Size: | |
|
Formation RT-VJ Formation Classification: GW Status: PR - 10/23/2013 Interval Top: 885 ft. Interval Bottom: 2353 ft. Completed Information for Formation RATON-VERMEJO COALS | 1st Production Date: | 8/17/2005 | Choke Size: | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | Production Method: | | Open Hole Completion: | No |
| Formation Treatment | Treatment Type: | | Treatment Date: | 10/23/2013 | Treatment End Date: | N/A | Treatment Summary: | 08/12/2005 Drilled out CIBP set @ 1680. | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | Type Of gas: | | Number Of staged intervals: | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | Reason green techniques Not utilized: |
| Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2378 ft. | Tubing Packer Depth: | | Tubing Multiple Packer: | | Open Hole Top: | | Open Hole Bottom: | | No Initial Test Data was found for formation RT-VJ. |
| Perforation Data: | Interval Top: | 885 ft. | # Of Holes: | 171 | Interval Bottom: | 2353 ft. | Hole Size: | |
|
Formation RTON Formation Classification: GW Status: CM - 10/22/2013 Interval Top: 885 ft. Interval Bottom: 1486 ft. Completed Information for Formation RATON COAL | 1st Production Date: | 5/25/2005 | Choke Size: | | Formation Name: | RATON COAL | Commingled: | | Production Method: | | Open Hole Completion: | No |
| Formation Treatment | Treatment Date: | 5/17/2005 | Treatment Summary: | A. w/2500 gals 15% HCl acid. Frac'd w/242,116 gals 20# Delta 140 w/sandwedge NT carrying 35,342# 16/30 & 358,033# 12/20 Brady sands. | Formation Treatment | Treatment Date: | 9/26/2003 | Treatment Summary: | ACIDIZED W/2500 GALS 15% HCL ACID.FRAC'D W/242,116 GALS 20# DELTA 140 W/SANDWEDGE NT CARRYING 35,342# 16/30 & 358,033# 12/20 BRADY SD. |
| Tubing Size: | 2.875 in. | Tubing Setting Depth: | 1581 ft. | Tubing Packer Depth: | | Tubing Multiple Packer: | | Open Hole Top: | | Open Hole Bottom: | | Initial Test Data: | Test Date: | 2/25/2005 | Test Method: | Pumping | Hours Tested: | 24 | Gas Type: | COAL GAS | Gas Disposal: | SOLD | |
Test Type | Measure |
---|
BBLS_H2O | 200 | BTU_GAS | 1005 | CALC_BBLS_H2O | 200 | CALC_MCF_GAS | 20 | CASING_PRESS | 28 | GRAVITY_OIL | 1 | MCF_GAS | 20 |
| Perforation Data: | Interval Top: | 885 ft. | # Of Holes: | 108 | Interval Bottom: | 1486 ft. | Hole Size: | 0.4 in. |
|
|
|
|
|
Reported Plugged | N | |
Out Of Service Repurposed | N | |
Out Of Service | N | |
Inactive Exception | N | |
Noticed Inactive | N | |
Defined Inactive | N | |
Low Producing | N | |
Total Oil Produced (Barrels) | 0 |
Total Gas Produced (MCF) | 54212 |
GOR | |
GOR Determination | MCFE |
Average BOE per Day | 25.609 |
Average MCFE per Day | 148.499 |
