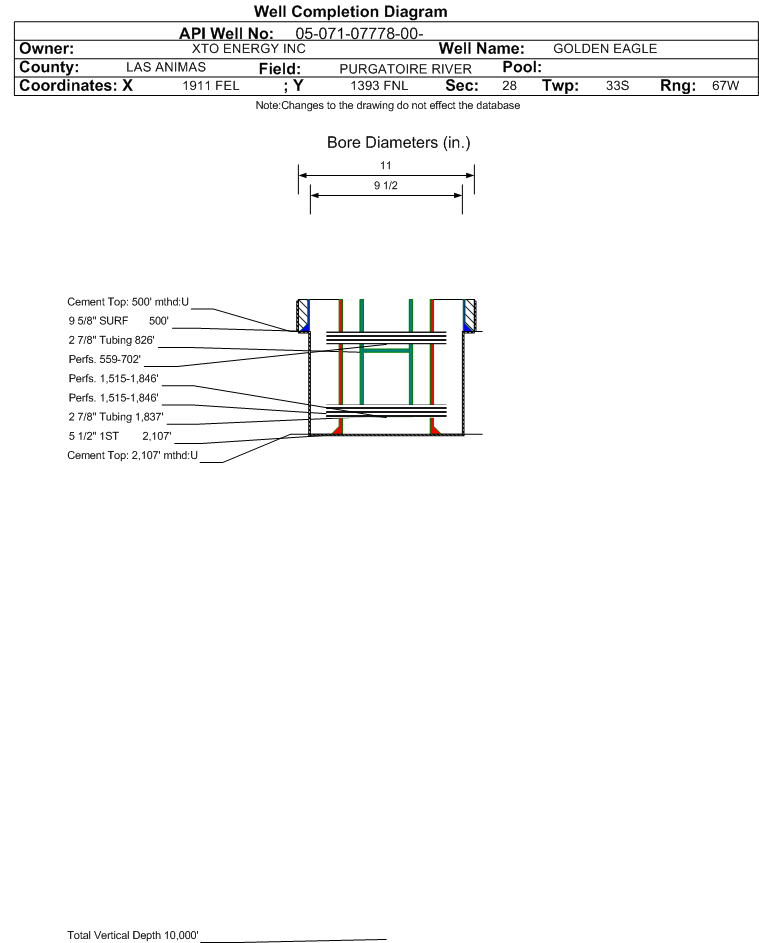

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07778		Well Classification: CBM Status: PR - 6/1/2025
Well Name/No:GOLDEN EAGLE #28-7
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/1/2025
FacilityID:265527LocationID:311983
County:LAS ANIMAS #071Location:SWNE 28 33S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7407 ft.
Basin:RATON BASIN
Planned Location:1393FNL  1911 FELLat/Long: 37.146622 / -104.889860Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.146830 / -104.890270Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 6/1/2025             Measured TD: 2125 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 6/1/2025
Wellbore Permit
Permit #:20022193 Expiration Date:12/15/2003
Proposed Depth/Form:2800 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: , Depth: 490 ft., Weight: 23 , Citings Type: PLANNED
Cement:Sacks: , Top: 0 ft., Bottom: 490 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 2800 ft., Weight: 15.5 , Citings Type: PLANNED
Cement:Sacks: , Top: 0 ft., Bottom: 2800 ft.
Wellbore Completed
Completion Date:11/25/2003
Spud Date:9/27/2003Spud Date Is:ACTUAL
Measured TD:2125 ft.Measured PB depth:2067 ft.
True Vertical TD:True Vertical PB depth:
Log Types:EPITHERMAN NEUTRON, ARRAY INDUCTION, CEMENT BOND (2)
Casing:String Type: SURF, Hole Size: 11 in., Size: 9.625 in., Top: , Depth: 500 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 500 ft., Bottom: 0 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: , Size: 5.5 in., Top: , Depth: 2107 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 2107 ft., Bottom: 0 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
RATON COAL1532 ft.NN
VERMEJO COAL1601 ft.2019 ft.NN
TRINIDAD2019 ft.2294 ft.NN

Formation RT-VJ                   Formation Classification:  GW                   Status:  AB - 11/22/2005                Interval Top: 1515 ft.    Interval Bottom: 1846 ft.

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:N/AChoke Size:
Formation Name:RATON-VERMEJO COALSCommingled:No
Production Method:30N-095 - PC PUMP
Open Hole Completion:No
Formation Treatment
Treatment Date:11/25/2003
Treatment Summary:PERF: 1743-1846 (3 SPF 61 HOLES). FRAC 1ST STAGE: PUMPED 80920 GALS DELTA FRAC FLUID, 80120# 16/30 66730# 12/20 SAND. PERF; 1515-1693 (3 SPF 33 HOLES). FRAC 2ND STAGE:PUMPED 7327 GALS DELTA FRAC FLUID 55970# 16/30 38130# 12/20 SAND.
Tubing Size:2.875 in.Tubing Setting Depth:1837 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/11/2003Test Method:ORIFICE METER
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 100
BBLS_OIL 0
BTU_GAS 1004
CALC_BBLS_H2O 100
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 0
CASING_PRESS 25
MCF_GAS 0
Perforation Data:
Interval Top:1515 ft.# Of Holes:84
Interval Bottom:1846 ft.Hole Size:

Formation VRMJ                     Formation Classification:  GW                     Status:  CM - 11/22/2005                Interval Top: 1515 ft.    Interval Bottom: 1846 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:12/11/2003Choke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/25/2003
Treatment Summary:FRAC'D W/88,247 GALS DELTA 140 CARRYING 136,090# 16/30 & 104,860# 12/20 BRDAY SD.
Tubing Size:2.875 in.Tubing Setting Depth:1837 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/11/2003Test Method:ORIFICE METER
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 100
BBLS_OIL 0
BTU_GAS 1004
CASING_PRESS 25
MCF_GAS 0
Perforation Data:
Interval Top:1515 ft.# Of Holes:84
Interval Bottom:1846 ft.Hole Size:0.4 in.

Formation RTON                     Formation Classification:  GW                     Status:  PR - 6/1/2025                  Interval Top: 559 ft.    Interval Bottom: 702 ft.

 Completed Information for Formation RATON COAL
1st Production Date:12/23/2005Choke Size:
Formation Name:RATON COALCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:2.875 in.Tubing Setting Depth:826 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/24/2005Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 48
BBLS_OIL 0
BTU_GAS 1018
CALC_BBLS_H2O 48
CALC_BBLS_OIL 0
CALC_MCF_GAS 0
CASING_PRESS 10
MCF_GAS 0
TUBING_PRESS 10
Perforation Data:
Interval Top:559 ft.# Of Holes:15
Interval Bottom:702 ft.Hole Size:0.4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)25781
GOR
GOR DeterminationMCFE
Average BOE per Day12.158
Average MCFE per Day70.519

 Federal Financial Assurance  i

 Tribal Well  i No
