COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07732		Well Classification: CBM Status: PR - 11/13/2010
Well Name/No:VPR C #104
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:WAPITI OPERATING LLC - 10351
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date11/13/2010
FacilityID:264827LocationID:308254
County:LAS ANIMAS #071Location:NWSE 13 35S66W 6
Field:PURGATOIRE RIVER - #70830Elevation:7584 ft.
Planned Location:3173FNL  1508 FELLat/Long: 36.996206 / -104.726804Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 36.996200 / -104.726800Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 11/13/2010             Measured TD: 2230 ft.    Vertical TD: 2230 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 11/13/2010
Wellbore Permit
Permit #:20021766 Expiration Date:10/1/2003
Proposed Depth/Form:2200 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:6/2/2003
Spud Date:4/2/2003Spud Date Is:ACTUAL
Measured TD:2230 ft.Measured PB depth:1991 ft.
True Vertical TD:2230 ft.True Vertical PB depth:1991 ft.
Log Types:AI,EPITHERMAL NEU. LITHO DEN., CBL, AFTER FRAC., & MUD LOG

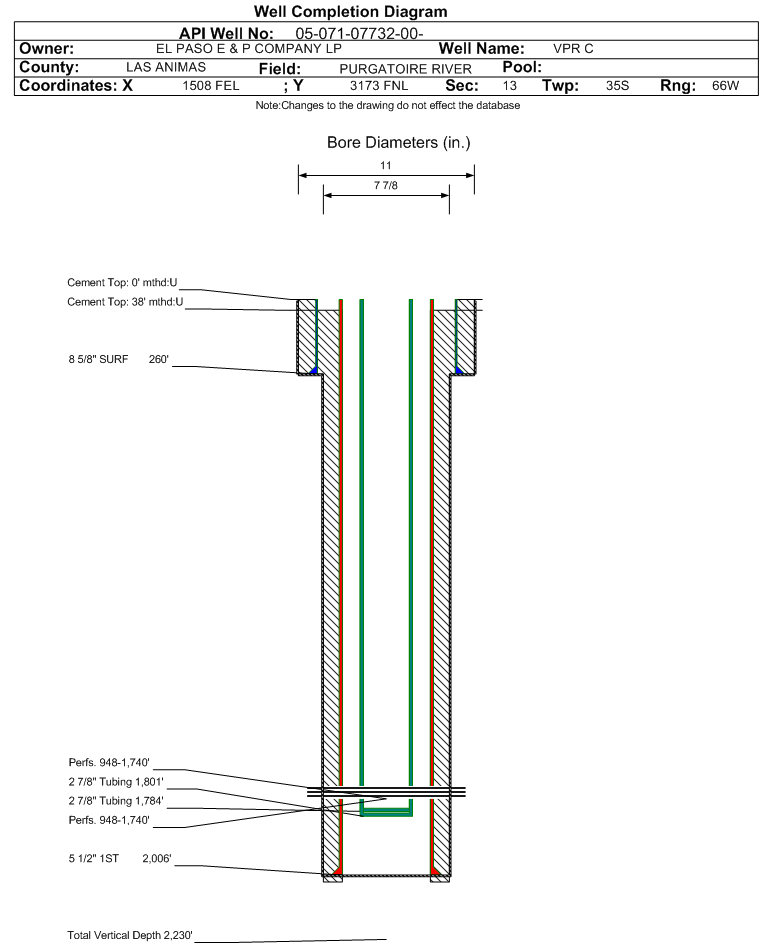

Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 260 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 85, Top: 0 ft., Bottom: 260 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2006 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 290, Top: 38 ft., Bottom: 2030 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1567 ft.NN
VERMEJO COAL1567 ft.1741 ft.NN
TRINIDAD1779 ft.NN

Formation RT-VJ                   Formation Classification:  GW                   Status:  CM - 6/10/2003                 Interval Top: 948 ft.    Interval Bottom: 1740 ft.

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:N/AChoke Size:0.250 in.
Formation Name:RATON-VERMEJO COALSCommingled:Yes
Production Method:PUMPING CBM GAS WELL. PRODUCED WATER INJECTED IN WDW.
Open Hole Completion:No
Formation Treatment
Treatment Date:6/2/2003
Treatment Summary:SEE SCANNED DOC# 1200045
Tubing Size:2.875 in.Tubing Setting Depth:1784 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/10/2003Test Method:PUMPING FLOW
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 257
CALC_BBLS_H2O 257
CALC_MCF_GAS 7
CASING_PRESS 15
MCF_GAS 7
Perforation Data:
Interval Top:948 ft.# Of Holes:46
Interval Bottom:1740 ft.Hole Size:

Formation RTS-VJ                 Formation Classification:  GW                 Status:  PR - 11/13/2010                Interval Top: 948 ft.    Interval Bottom: 1740 ft.

 Completed Information for Formation RATON SAND - VERMEJO COAL
1st Production Date:8/28/2010Choke Size:
Formation Name:RATON SAND - VERMEJO COALCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:8/28/2010
Treatment Summary:ACID 1737'-1741' W/250 GALS 15% HCL, 1623'-1628' W/350 GALS 15% HCL, 1472'-1475' W/300 GALS 15% HCL, 1050'-1053' 250 GALS 15% HCL *46 HOLES IN FROM PREVIOUS. NO NEW PREF'S THIS TIME.
Tubing Size:2.875 in.Tubing Setting Depth:1801 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/13/2010Test Method:PRODUCTION
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 66
BTU_GAS 998
CALC_BBLS_H2O 66
CALC_MCF_GAS 34
CASING_PRESS 14
MCF_GAS 34
TUBING_PRESS 250
Perforation Data:
Interval Top:948 ft.# Of Holes:46
Interval Bottom:1740 ft.Hole Size:0.51 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)11138
GOR
GOR DeterminationMCFE
Average BOE per Day5.261
Average MCFE per Day30.533

 Federal Financial Assurance  i

 Tribal Well  i No
