COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07589		Well Classification: CBM Status: PR - 1/25/2010
Well Name/No:HILL RANCH #08-08V
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/25/2010
FacilityID:262941LocationID:308148
County:LAS ANIMAS #071Location:SENE 8 35S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8248 ft.
Basin:RATON BASIN
Planned Location:2079FNL  505 FELLat/Long: 37.013315 / -104.903879Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.013290 / -104.903850Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 1/25/2010             Measured TD: 2628 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 1/25/2010
Wellbore Permit
Permit #:20020433 Expiration Date:3/4/2003
Proposed Depth/Form:2800 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:8/7/2002
Spud Date:7/12/2002Spud Date Is:ACTUAL
Measured TD:2628 ft.Measured PB depth:2632 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CDL, SIL, CBL

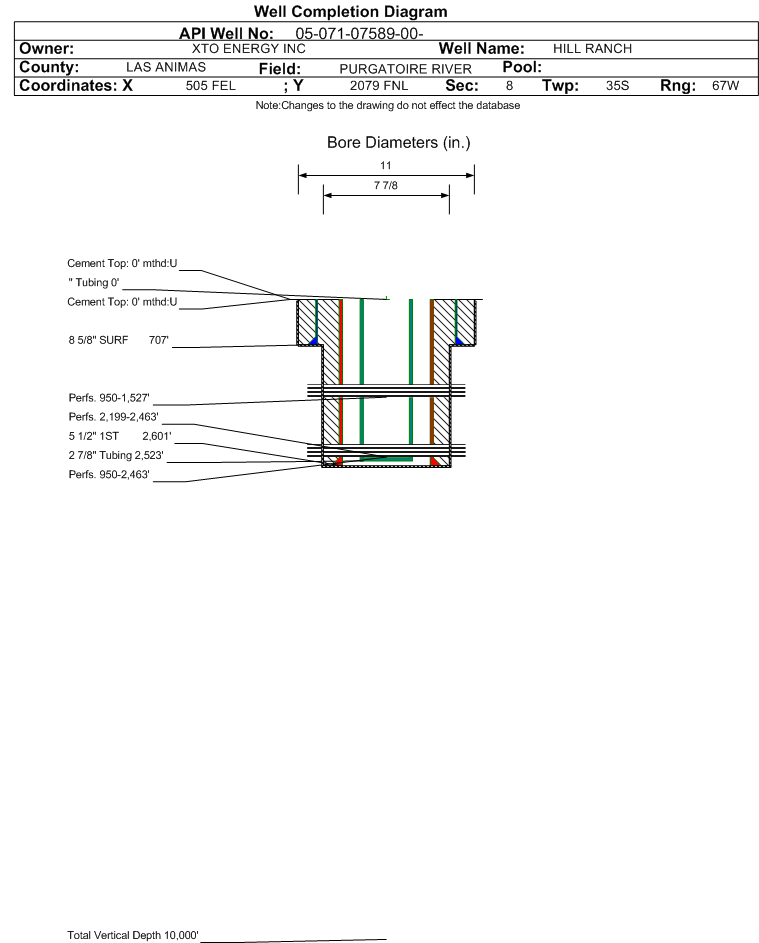

Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 707 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 220, Top: 0 ft., Bottom: 707 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2601 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 2601 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.2198 ft.NN
VERMEJO COAL2198 ft.2498 ft.NN
TRINIDAD2498 ft.2628 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  CM - 1/25/2010                 Interval Top: 2199 ft.    Interval Bottom: 2463 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:8/12/2002Choke Size:
Formation Name:VERMEJO COALCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/14/2010
Treatment Summary:ACIDIZED W/1,000 GAL 15% CHI ACID. REFRACD W/ 86,078 GAL 20# DELTA 140 W/SANDWEDGE OS CARRYING 8,452# 16/30 BRADY SD & 178,591# 12/20 BRADY SND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 262
BBLS_OIL 0
BTU_GAS 1000
CALC_BBLS_H2O 262
CALC_MCF_GAS 31
CASING_PRESS 25
MCF_GAS 31
Perforation Data:
Interval Top:2199 ft.# Of Holes:120
Interval Bottom:2463 ft.Hole Size:0.4 in.

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 1/25/2010                 Interval Top: 950 ft.    Interval Bottom: 2463 ft.

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:1/22/2010Choke Size:
Formation Name:RATON-VERMEJO COALSCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/7/2002
Treatment Summary:
Tubing Size:2.875 in.Tubing Setting Depth:2523 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/25/2010Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 94
BTU_GAS 1002
CALC_BBLS_H2O 94
CALC_BBLS_OIL 0
CALC_MCF_GAS 18
CASING_PRESS 96
MCF_GAS 18
TUBING_PRESS 4
Perforation Data:
Interval Top:950 ft.# Of Holes:176
Interval Bottom:2463 ft.Hole Size:0.45 in.

Formation RTON                     Formation Classification:  GW                     Status:  CM - 1/25/2010                 Interval Top: 950 ft.    Interval Bottom: 1527 ft.

 Completed Information for Formation RATON COAL
1st Production Date:1/22/2010Choke Size:
Formation Name:RATON COALCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/14/2010
Treatment Summary:ACIDIZED W/3,400 GALS 15% HCL ACID. FRACD W/ 100,527 GAL 20# DELTA 140 W/ SANDWEDGE OS CARRYING 15,367# 16/30 BRADY SD & 186,231# 12/20 BRADY SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RTON.
Perforation Data:
Interval Top:950 ft.# Of Holes:56
Interval Bottom:1527 ft.Hole Size:0.45 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)20023
GOR
GOR DeterminationMCFE
Average BOE per Day9.459
Average MCFE per Day54.852

 Federal Financial Assurance  i

 Tribal Well  i No
