COGIS - WELL SCOUT CARD

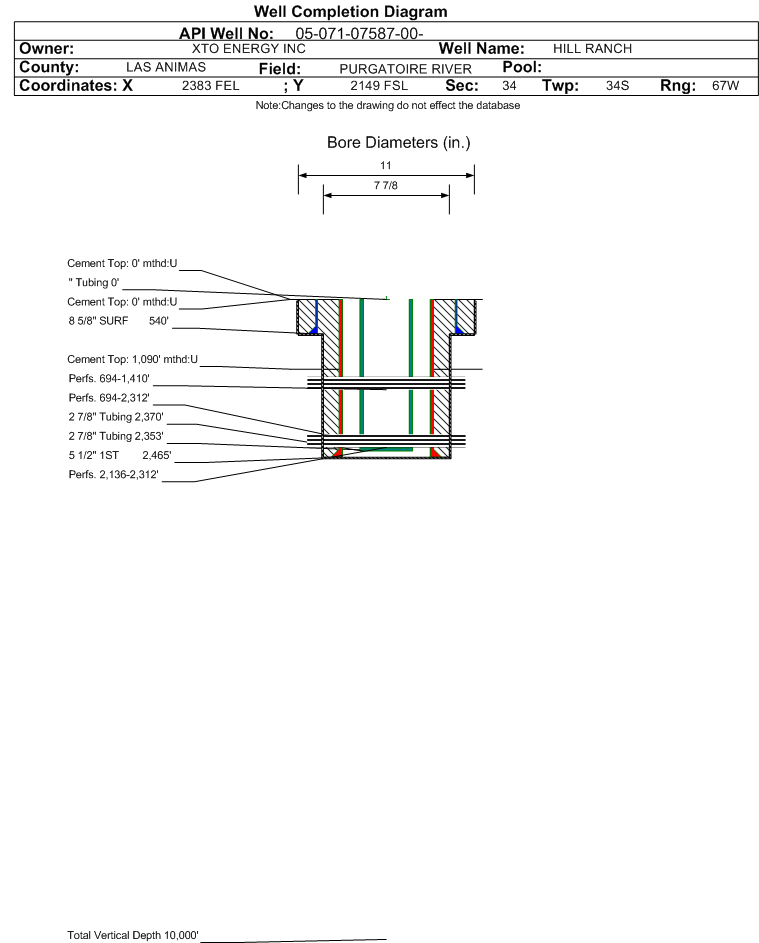

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07587		Well Classification: CBM Status: PR - 8/24/2010
Well Name/No:HILL RANCH #34-10V
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/24/2010
FacilityID:262939LocationID:308146
County:LAS ANIMAS #071Location:NWSE 34 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8001 ft.
Basin:RATON BASIN
Planned Location:2149FSL  2383 FELLat/Long: 37.039394 / -104.874579Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.039380 / -104.874540Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 8/24/2010             Measured TD: 2481 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 8/24/2010
Wellbore Permit
Permit #:20020432 Expiration Date:3/4/2003
Proposed Depth/Form:2800 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:8/4/2002
Spud Date:7/9/2002Spud Date Is:ACTUAL
Measured TD:2481 ft.Measured PB depth:2470 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:CDL,SIL,CBL
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 540 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 145, Top: 0 ft., Bottom: 540 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2465 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 347, Top: 1090 ft., Bottom: 2465 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: 152, Top: 0 ft., Bottom: 1090 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.2021 ft.NN
VERMEJO COAL2021 ft.2350 ft.NN
TRINIDAD2350 ft.2481 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  CM - 8/1/2002                  Interval Top: 2136 ft.    Interval Bottom: 2312 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:N/AChoke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:PUMPING
Open Hole Completion:No
Formation Treatment
Treatment Date:8/4/2002
Treatment Summary:SEE SCANNED DOC.
Tubing Size:2.875 in.Tubing Setting Depth:2353 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/1/2002Test Method:ORIFICE METER
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 192
BBLS_OIL 0
BTU_GAS 1000
CALC_BBLS_H2O 192
CASING_PRESS 25
MCF_GAS 0
Perforation Data:
Interval Top:2136 ft.# Of Holes:100
Interval Bottom:2312 ft.Hole Size:4 in.

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 8/24/2010                 Interval Top: 694 ft.    Interval Bottom: 2312 ft.

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:8/22/2010Choke Size:
Formation Name:RATON-VERMEJO COALSCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:2.875 in.Tubing Setting Depth:2370 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/24/2010Test Method:Pumping
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 76
BTU_GAS 1006
CALC_BBLS_H2O 76
CALC_MCF_GAS 223
CASING_PRESS 8
MCF_GAS 223
TUBING_PRESS 2
Perforation Data:
Interval Top:694 ft.# Of Holes:236
Interval Bottom:2312 ft.Hole Size:0.51 in.

Formation RTON                     Formation Classification:  GW                     Status:  CM - 2/18/2011                 Interval Top: 694 ft.    Interval Bottom: 1410 ft.

 Completed Information for Formation RATON COAL
1st Production Date:8/22/2010Choke Size:
Formation Name:RATON COALCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/11/2010
Treatment Summary:Acidized w/3,000 gals 15% HCl acid. Frac'd w/113,084 gals Delta 140 w/Sandwedge OS carrying 22,450# 16/30 Brady sd & 274,280# 12/20 Brady sd.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RTON.
Perforation Data:
Interval Top:694 ft.# Of Holes:112
Interval Bottom:1410 ft.Hole Size:0.45 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)29894
GOR
GOR DeterminationMCFE
Average BOE per Day14.126
Average MCFE per Day81.920

 Federal Financial Assurance  i

 Tribal Well  i No
