COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07561		Well Classification: CBM Status: SI - 12/1/2023
Well Name/No:APACHE CANYON #08-02R
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date12/1/2023
FacilityID:262544LocationID:312069
County:LAS ANIMAS #071Location:NWNE 8 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7447 ft.
Planned Location:664FNL  1771 FELLat/Long: 37.104193 / -104.908270Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.104180 / -104.908300Lat/Long Source: Field Measured

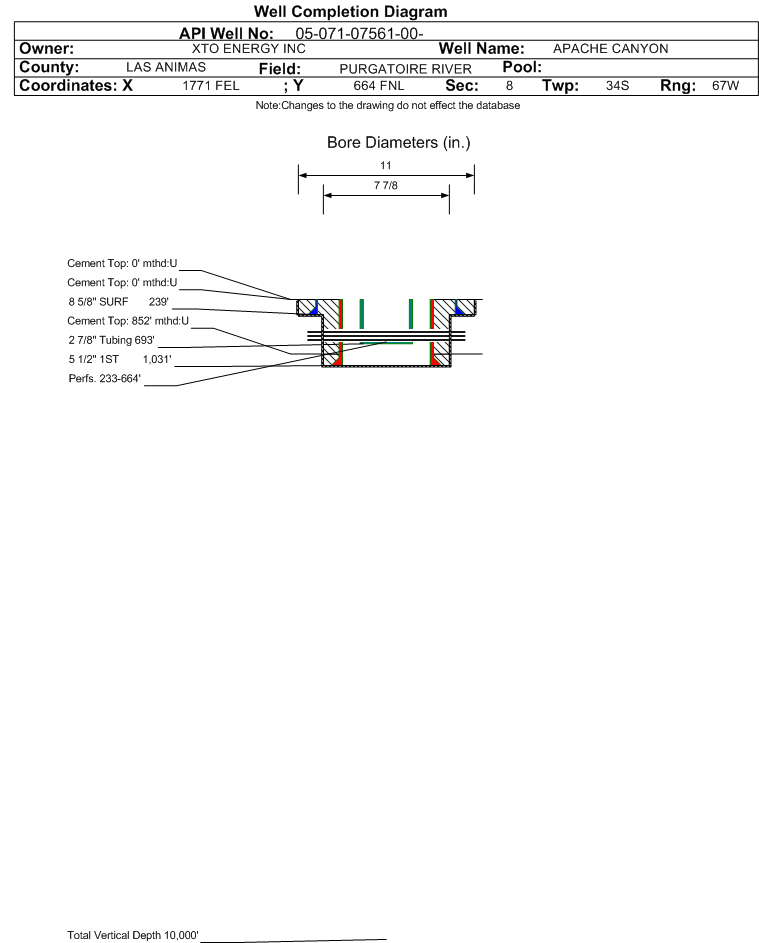

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: SI - 12/1/2023             Measured TD: 1046 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        SI - 12/1/2023
Wellbore Permit
Permit #:20020131 Expiration Date:1/23/2003
Proposed Depth/Form:2000 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:2/26/2002
Spud Date:2/3/2002Spud Date Is:ACTUAL
Measured TD:1046 ft.Measured PB depth:1044 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:CDL, SIL, CBL (2)
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 239 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 65, Top: 0 ft., Bottom: 239 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1031 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 165, Top: 852 ft., Bottom: 1031 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 1031 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 127, Top: 0 ft., Bottom: 852 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.997 ft.NN

Formation RTON                     Formation Classification:  GW                     Status:  SI - 12/1/2023                 Interval Top: 233 ft.    Interval Bottom: 664 ft.

 Completed Information for Formation RATON COAL
1st Production Date:N/AChoke Size:
Formation Name:RATON COALCommingled:No
Production Method:20NO95 PC PUMP
Open Hole Completion:No
Formation Treatment
Treatment Date:2/26/2002
Treatment Summary:SEE SCANNED DOC# 1336283
Tubing Size:2.875 in.Tubing Setting Depth:693 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/9/2002Test Method:
Hours Tested:Gas Type:COAL GAS
Gas Disposal:
Test TypeMeasure
BBLS_H2O 12
CALC_BBLS_H2O 12
Perforation Data:
Interval Top:233 ft.# Of Holes:224
Interval Bottom:664 ft.Hole Size:4 in.
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
11/30/2023
Low ProducingYProduction Period
04/2024 - 03/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
