COGIS - WELL SCOUT CARD

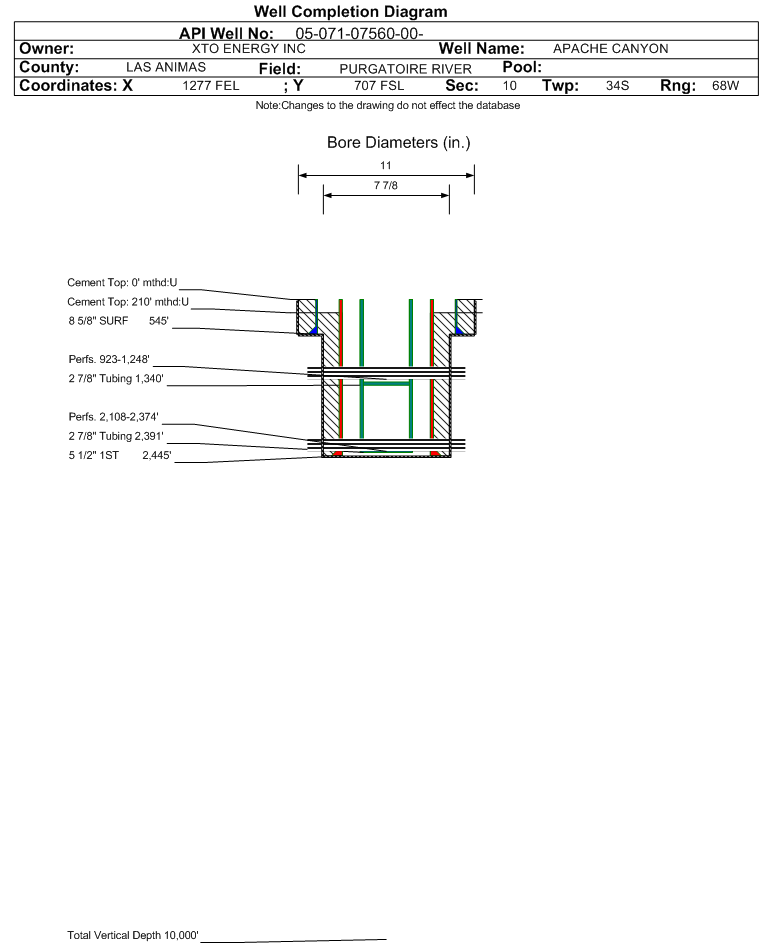

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07560		Well Classification: CBM Status: PR - 4/1/2024
Well Name/No:APACHE CANYON #10-16V
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/1/2024
FacilityID:262543LocationID:308128
County:LAS ANIMAS #071Location:SESE 10 34S68W 6
Field:PURGATOIRE RIVER - #70830Elevation:8597 ft.
Basin:RATON BASIN
Planned Location:707FSL  1277 FELLat/Long: 37.093203 / -104.978262Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.093230 / -104.978280Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 4/1/2024             Measured TD: 2448 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 4/1/2024
Wellbore Permit
Permit #:20020129 Expiration Date:1/23/2003
Proposed Depth/Form:2800 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:3/11/2002
Spud Date:2/15/2002Spud Date Is:ACTUAL
Measured TD:2448 ft.Measured PB depth:2446 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CDL, SIL, CBL
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 545 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 0 ft., Bottom: 545 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2445 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 370, Top: 210 ft., Bottom: 2445 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.2072 ft.NN
VERMEJO COAL2072 ft.2390 ft.NN
TRINIDAD2390 ft.2480 ft.NN
PIERRE2480 ft.2515 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  CM - 3/24/2002                 Interval Top: 2108 ft.    Interval Bottom: 2374 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:3/24/2002Choke Size:
Formation Name:VERMEJO COALCommingled:
Production Method:30NO45 PC PUMP
Open Hole Completion:
Formation Treatment
Treatment Date:3/11/2002
Treatment Summary:SEE SCANNED DOC# 1336307
Tubing Size:2.875 in.Tubing Setting Depth:2391 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/24/2002Test Method:
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:
Test TypeMeasure
BBLS_H2O 65
CALC_BBLS_H2O 65
CALC_MCF_GAS 5
MCF_GAS 5
Perforation Data:
Interval Top:2108 ft.# Of Holes:160
Interval Bottom:2374 ft.Hole Size:4 in.

Formation RTON                     Formation Classification:  GW                     Status:  CM - 6/25/2006                 Interval Top: 923 ft.    Interval Bottom: 1248 ft.

 Completed Information for Formation RATON COAL
1st Production Date:6/24/2006Choke Size:
Formation Name:RATON COALCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:6/9/2006
Treatment Summary:ACIDIZED W/1600 GALS 15% HCL ACID. FRAC'D W/178,774 GALS 20# DELTA 140 W/SANDWEDGE NT CARRYING 13,700# 16/30 AND 233,031# 12/20 BRADY SAND.
Tubing Size:2.875 in.Tubing Setting Depth:1340 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/25/2006Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 42
BBLS_OIL 0
BTU_GAS 1089.7
CALC_BBLS_H2O 42
CALC_BBLS_OIL 0
CALC_MCF_GAS 0
GRAVITY_OIL 0.632
MCF_GAS 0
TUBING_PRESS 2
Perforation Data:
Interval Top:923 ft.# Of Holes:60
Interval Bottom:1248 ft.Hole Size:0.41 in.

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 4/1/2024

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:6/24/2006Choke Size:
Formation Name:RATON-VERMEJO COALSCommingled:No
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RT-VJ.
No Perforation Data was found for formation RT-VJ.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
July 2024 - June 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)14380
GOR
GOR DeterminationMCFE
Average BOE per Day6.789
Average MCFE per Day39.383

 Federal Financial Assurance  i

 Tribal Well  i No
