COGIS - WELL SCOUT CARD

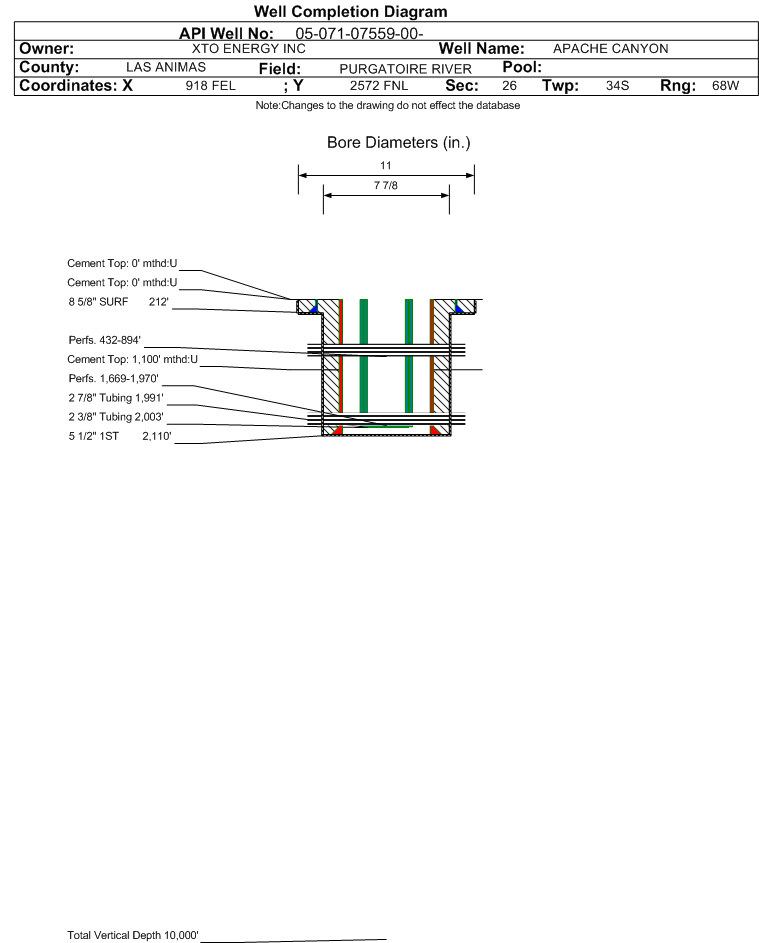

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07559		Well Classification: CBM Status: PR - 11/16/2007
Well Name/No:APACHE CANYON #26-8V
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date11/16/2007
FacilityID:262542LocationID:308127
County:LAS ANIMAS #071Location:SENE 26 34S68W 6
Field:PURGATOIRE RIVER - #70830Elevation:8383 ft.
Planned Location:2572FNL  918 FELLat/Long: 37.055334 / -104.958891Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.055290 / -104.958920Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 11/16/2007             Measured TD: 2125 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 11/16/2007
Wellbore Permit
Permit #:20020128 Expiration Date:1/23/2003
Proposed Depth/Form:2800 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:3/27/2002
Spud Date:2/25/2002Spud Date Is:ACTUAL
Measured TD:2125 ft.Measured PB depth:2126 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CDL, SIL, CBL (2)
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 212 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 60, Top: 0 ft., Bottom: 212 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2110 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 325, Top: 1100 ft., Bottom: 2110 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: 134, Top: 0 ft., Bottom: 1100 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1660 ft.NN
VERMEJO COAL1660 ft.1980 ft.NN
TRINIDAD1980 ft.2090 ft.NN
PIERRE2090 ft.2125 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  CM - 11/16/2007                Interval Top: 1669 ft.    Interval Bottom: 1970 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:3/27/2002Choke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/25/2002
Treatment Summary:FRAC'D W/99,241 BBLS FRAC FLUID, 65,096 SLF AND 167,630# 16/30 BRADY SAND.
Tubing Size:2.875 in.Tubing Setting Depth:1991 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 27
BBLS_OIL 0
BTU_GAS 998
CALC_BBLS_H2O 27
CALC_BBLS_OIL 0
CALC_MCF_GAS 3
CASING_PRESS 0
MCF_GAS 3
Perforation Data:
Interval Top:1669 ft.# Of Holes:140
Interval Bottom:1970 ft.Hole Size:4 in.

Formation RTON                     Formation Classification:  GW                     Status:  CM - 8/19/2007                 Interval Top: 432 ft.    Interval Bottom: 894 ft.

 Completed Information for Formation RATON COAL
1st Production Date:8/10/2007Choke Size:
Formation Name:RATON COALCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/1/2007
Treatment Summary:ACIDIZED W/2000 GALS 15% HCL ACID. FRAC'D W/82,338 GALS 20# DELTA 140 FRAC FLUID W/SANDWEDGE OS CARRYING 8314# 16/30 BRADY SAND AND 140,400# 12/20 BRADY SAND.
Tubing Size:2.375 in.Tubing Setting Depth:2003 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/19/2007Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 6
BBLS_OIL 0
BTU_GAS 1006
CALC_BBLS_H2O 6
CALC_BBLS_OIL 0
CALC_MCF_GAS 5
CASING_PRESS 4
GRAVITY_OIL 1
MCF_GAS 5
TUBING_PRESS 4
Perforation Data:
Interval Top:432 ft.# Of Holes:59
Interval Bottom:894 ft.Hole Size:0.45 in.

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 11/16/2007

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:8/10/2007Choke Size:
Formation Name:RATON-VERMEJO COALSCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RT-VJ.
No Perforation Data was found for formation RT-VJ.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)23847
GOR
GOR DeterminationMCFE
Average BOE per Day11.269
Average MCFE per Day65.348

 Federal Financial Assurance  i

 Tribal Well  i No
