COGIS - WELL SCOUT CARD

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07553
Well Classification: CBM Status: PA - 7/31/2024
Well Name/No:HILL RANCH #29-14V
(Click Well Name for Production Data)
Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)
Federal Or State Lease #:
Facility Status:PAStatus Date7/31/2024
FacilityID:262487LocationID:333804
County:LAS ANIMAS #071Location:SESW 29 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8175 ft.
Planned Location:903FSL  2238 FWLLat/Long: 37.050504 / -104.912590Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.050510 / -104.912640Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: AB - 7/31/2024             Measured TD: 2660 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        AB - 7/31/2024
Wellbore Permit
Permit #:20020125 Expiration Date:1/16/2003
Proposed Depth/Form:2800 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:

Wellbore Completed
Completion Date:2/22/2002
Spud Date:1/31/2002Spud Date Is:ACTUAL
Measured TD:2660 ft.Measured PB depth:2647 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage:  FL   FL
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:CDL, SIL, CBL

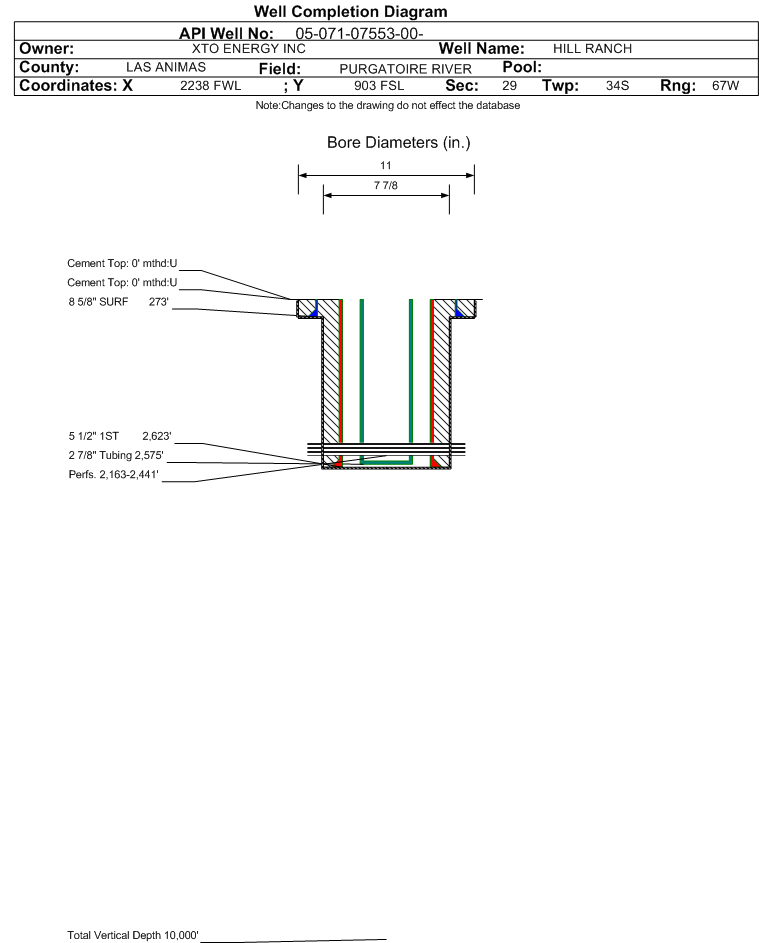

Casing:String Type: SURF, Hole Size: , Size: 8.625 in., Top: 0 ft., Depth: 273 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 75, Top: 0 ft., Bottom: 273 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2623 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 391, Top: 0 ft., Bottom: 2623 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.2144 ft.NN
VERMEJO COAL2144 ft.2490 ft.NN
TRINIDAD2490 ft.2620 ft.NN
PIERRE2620 ft.2660 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  AB - 7/31/2024                 Interval Top: 2163 ft.    Interval Bottom: 2441 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:N/AChoke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:PUMPING ( 30NO095 - PC )
Open Hole Completion:No
Formation Treatment
Treatment Date:2/22/2002
Treatment Summary:DELTA FRAC PERFORATIONS; 2417'-20, 2438'-41' (4 SPF. 24 HOLES) FRAC 1ST STAGE; 13,006 15# GEL, 21,000# 16/30, N2 N/A, 50 GAL HCL PERFORATIONS; 2376'-80' (4 SPF, 16 HOLES) FRAC 2ND STAGE; 13,006 15# GEL, 21,000# 16/30, N2 N/A, 50 GAL HCL FRAC 3RD STAGE;
Tubing Size:2.875 in.Tubing Setting Depth:2575 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/8/2002Test Method:ORIFICE METER
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:
Test TypeMeasure
BBLS_H2O 186
BBLS_OIL 0
BTU_GAS 1000
CALC_BBLS_H2O 186
CALC_BBLS_OIL 0
CALC_MCF_GAS 18
CASING_PRESS 25
MCF_GAS 18
Perforation Data:
Interval Top:2163 ft.# Of Holes:108
Interval Bottom:2441 ft.Hole Size:4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/31/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2028
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
