Wellbore #00 Wellbore Classification: CBM Status: PR - 10/1/2025 Measured TD: 2691 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 10/1/2025 | | Wellbore Permit | | | Permit #: | 20020127 | Expiration Date: | 1/16/2003 | | Proposed Depth/Form: | 2800 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

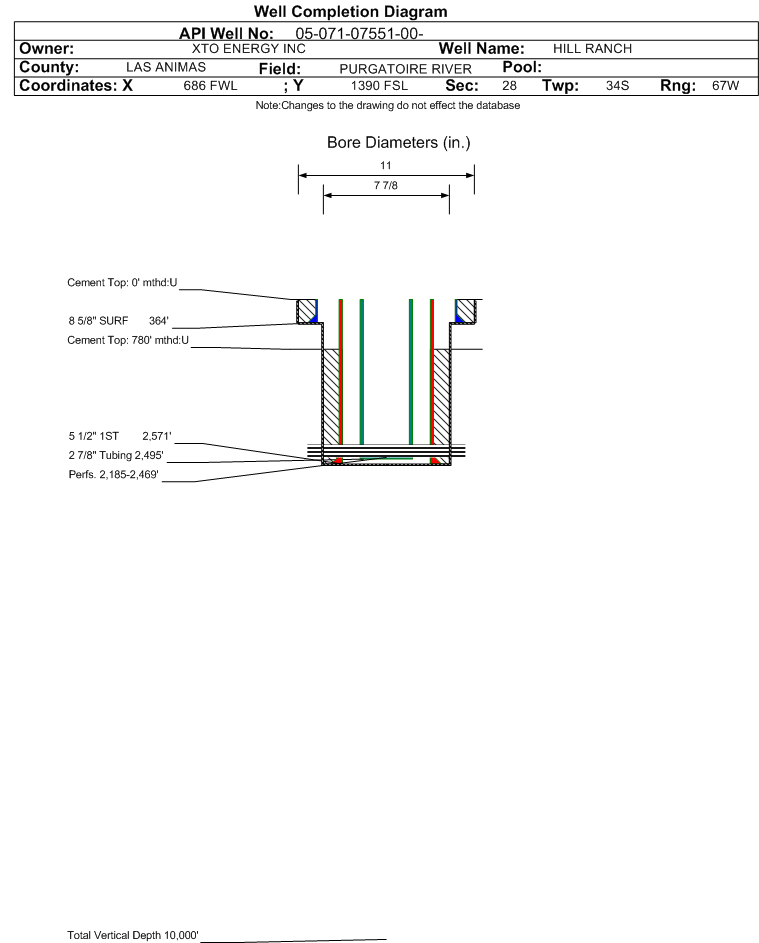

| Wellbore Completed | | Completion Date: | 2/17/2002 | | Spud Date: | 1/26/2002 | Spud Date Is: | ACTUAL | | Measured TD: | 2691 ft. | Measured PB depth: | 2554 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: FL FL | | Bottom Hole Location: | Sec: Twp: | Footage: FL FL | | Log Types: | CDL, SIL, CBL | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 364 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 364 ft., Determination Method: CBL | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2571 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 400, Top: 780 ft., Bottom: 2571 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 2202 ft. | N | N | | VERMEJO COAL | 2202 ft. | 2553 ft. | N | N | | TRINIDAD | 2553 ft. | 2683 ft. | N | N |
Formation VRMJ Formation Classification: GW Status: PR - 10/1/2025 Interval Top: 2185 ft. Interval Bottom: 2469 ft.| Completed Information for Formation VERMEJO COAL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | VERMEJO COAL | Commingled: | No | | Production Method: | PUMPING ( 30NO095 - RC ) | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/17/2002 | | Treatment Summary: | DELTA FRAC PERFORATIONS; 2445'-50', 2461'-64', 2466'-69' (4SPF. 44 HOLES) FRAC 1ST STAGE; 237.1 BBL FRAC FLUID, 270.8 SKS 16/30 BRADY, 1.2 BBL ACID PERFORATIONS; 2380'-84', 2386'-89 2410'-19' (4 SPF, 64 HOLES) FRAC 2ND STAGE; 551.1 BBL FRAC FLUID, 569.2 |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2495 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/15/2002 | Test Method: | ORIFICE METER | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 181 | | BBLS_OIL | 0 | | BTU_GAS | 1000 | | CALC_BBLS_H2O | 181 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 9 | | CASING_PRESS | 25 | | MCF_GAS | 9 |
| | Perforation Data: | | Interval Top: | 2185 ft. | # Of Holes: | 164 | | Interval Bottom: | 2469 ft. | Hole Size: | 4 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 2719 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 1.285 |
| Average MCFE per Day | 7.448 |
| Federal Financial Assurance | i | |
|
|
