COGIS - WELL SCOUT CARD

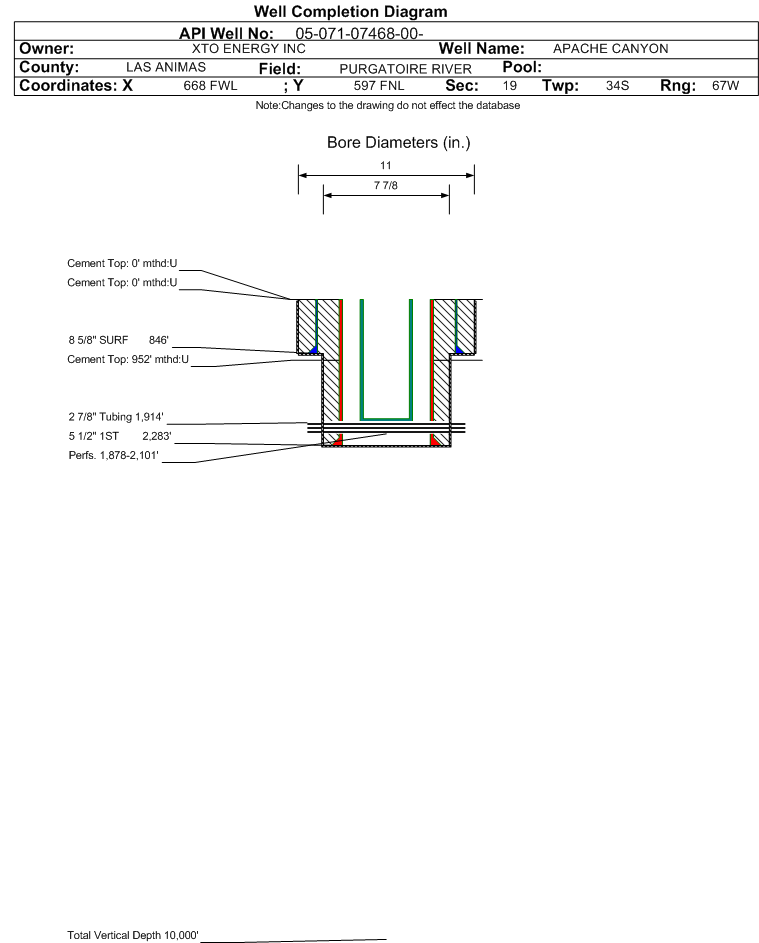

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07468		Well Classification: CBM Status: PR - 2/11/2003
Well Name/No:APACHE CANYON #19-4VX
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:26922
Facility Status:PRStatus Date2/11/2003
FacilityID:260689LocationID:308063
County:LAS ANIMAS #071Location:NWNW 19 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8000 ft.
Planned Location:597FNL  668 FWLLat/Long: 37.075464 / -104.935421Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.075450 / -104.935380Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 2/11/2003             Measured TD: 2305 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 2/11/2003
Wellbore Permit
Permit #:011411 Expiration Date:7/17/2002
Proposed Depth/Form:2800 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:9/28/2001
Spud Date:7/11/2001Spud Date Is:ACTUAL
Measured TD:2305 ft.Measured PB depth:2305 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CDL, SIL, CBL
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 846 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 311, Top: 0 ft., Bottom: 846 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2283 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 275, Top: 952 ft., Bottom: 2283 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: 115, Top: 0 ft., Bottom: 952 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1806 ft.NN
VERMEJO COAL1806 ft.2160 ft.NN
TRINIDAD2160 ft.2305 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  PR - 2/11/2003                 Interval Top: 1878 ft.    Interval Bottom: 2101 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:N/AChoke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:20N - 095 PC PUMP
Open Hole Completion:No
Formation Treatment
Treatment Date:9/28/2001
Treatment Summary:SEE SCANNED DOC# 1335931
Tubing Size:2.875 in.Tubing Setting Depth:1914 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/29/2001Test Method:
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:
Test TypeMeasure
BBLS_H2O 121
BBLS_OIL 0
CALC_BBLS_H2O 121
CALC_MCF_GAS 4
MCF_GAS 4
Perforation Data:
Interval Top:1878 ft.# Of Holes:80
Interval Bottom:2101 ft.Hole Size:4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)9441
GOR
GOR DeterminationMCFE
Average BOE per Day4.414
Average MCFE per Day25.591

 Federal Financial Assurance  i

 Tribal Well  i No
