COGIS - WELL SCOUT CARD

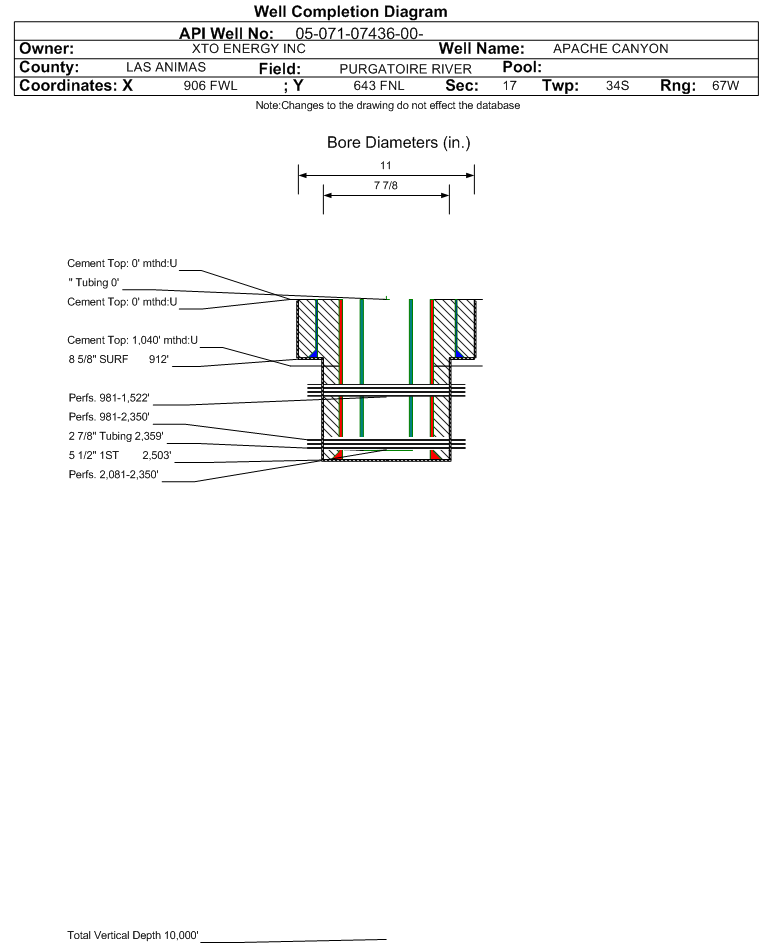

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07436		Well Classification: CBM Status: PR - 7/8/2007
Well Name/No:APACHE CANYON #17-04V
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/8/2007
FacilityID:260444LocationID:308042
County:LAS ANIMAS #071Location:NWNW 17 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8090 ft.
Basin:RATON BASIN
Planned Location:643FNL  906 FWLLat/Long: 37.089753 / -104.917190Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.089710 / -104.917210Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 7/8/2007             Measured TD: 2525 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 7/8/2007
Wellbore Permit
Permit #:011193 Expiration Date:6/19/2002
Proposed Depth/Form:2800 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:9/13/2001
Spud Date:7/25/2001Spud Date Is:ACTUAL
Measured TD:2525 ft.Measured PB depth:2522 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CDL, SIL, CBL
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 912 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 0 ft., Bottom: 912 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2503 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 305, Top: 1040 ft., Bottom: 2503 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 2503 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 130, Top: 0 ft., Bottom: 1040 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.2023 ft.NN
VERMEJO COAL2023 ft.2387 ft.NN
TRINIDAD2387 ft.2545 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  CM - 9/25/2013                 Interval Top: 2081 ft.    Interval Bottom: 2350 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:9/7/2001Choke Size:
Formation Name:VERMEJO COALCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/22/2007
Treatment Summary:2007 Corrected Data - New perfs 2082-2315 (32 new holes). Acidized w/1,250 gals 15% HCl acid. Frac'd w/57,852 gals 20# Delta 140 w/sandwedge OS carrying 150,037# 16/30 Brady sand. Pervious Verjemo data was correctly submitted on Form 5A dated 02/03/2003.
Formation Treatment
Treatment Date:9/13/2001
Treatment Summary:PERF 2333-2335, 2346-50 (24 HOLES), FRAC W/33,313 GALS FRAC FLD, 385,000 SCF N2, 29,500# 16/30 BRADY SD. PERF 2309-16 (28 HOLES), FRAC 2NS STG W/29,628 GALS FRAC FLD, 410,000 SCF N2, 547# 16/30 BRADY SD PERF 2150-46 (46 HOLES) FRAC 3RD STG W/22,416
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 4
BBLS_OIL 0
BTU_GAS 993
CALC_BBLS_H2O 4
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 4
CASING_PRESS 0
MCF_GAS 4
Perforation Data:
Interval Top:2081 ft.# Of Holes:120
Interval Bottom:2350 ft.Hole Size:4 in.

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 7/8/2007                  Interval Top: 981 ft.    Interval Bottom: 2350 ft.

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:7/6/2007Choke Size:
Formation Name:RATON-VERMEJO COALSCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:2.875 in.Tubing Setting Depth:2359 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/8/2007Test Method:Pumping
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 180
BTU_GAS 1002
CALC_BBLS_H2O 180
CASING_PRESS 10
GRAVITY_OIL 591
TUBING_PRESS 5
Perforation Data:
Interval Top:981 ft.# Of Holes:212
Interval Bottom:2350 ft.Hole Size:0.45 in.

Formation RTON                     Formation Classification:  GW                     Status:  CM - 9/25/2013                 Interval Top: 981 ft.    Interval Bottom: 1522 ft.

 Completed Information for Formation RATON COAL
1st Production Date:7/6/2007Choke Size:
Formation Name:RATON COALCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/22/2007
Treatment Summary:Corrected Data - Acidized w/2,750 gals 15% HCl acid. Frac'd w/144,929 gals 20# Delta 140 w/sandwedge OS carrying 16,800# 16/30 and 435,002# 12/20 Brady sands.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 180
BTU_GAS 1002
CALC_BBLS_H2O 180
CASING_PRESS 10
GRAVITY_OIL 1
TUBING_PRESS 10
Perforation Data:
Interval Top:981 ft.# Of Holes:92
Interval Bottom:1522 ft.Hole Size:0.45 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)26819
GOR
GOR DeterminationMCFE
Average BOE per Day12.668
Average MCFE per Day73.477

 Federal Financial Assurance  i

 Tribal Well  i No
