COGIS - WELL SCOUT CARD

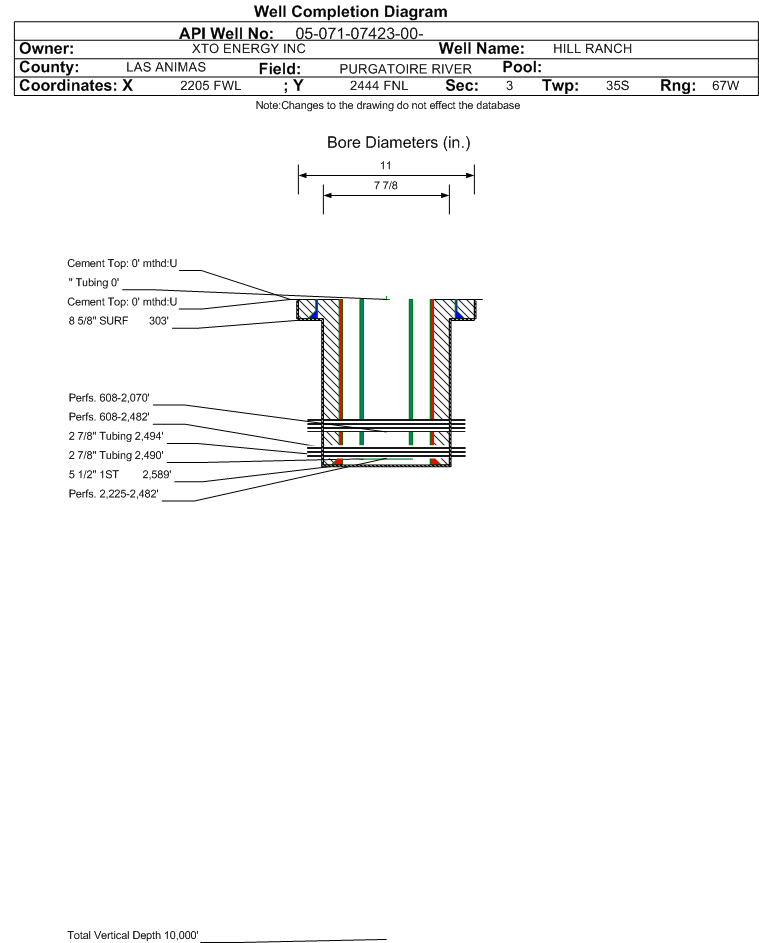

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07423		Well Classification: CBM Status: PR - 6/21/2011
Well Name/No:HILL RANCH #03-06V
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/21/2011
FacilityID:260404LocationID:308036
County:LAS ANIMAS #071Location:SENW 3 35S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8149 ft.
Planned Location:2444FNL  2205 FWLLat/Long: 37.026785 / -104.876529Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.026820 / -104.876470Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 6/4/2011
End Date: 6/4/2011
Reported: 4/16/2012
Prior to rule 205A.b.(2)(A)
Days to report: 317
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 6/21/2011             Measured TD: 2635 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 6/21/2011
Wellbore Permit
Permit #:201144 Expiration Date:6/14/2002
Proposed Depth/Form:2800 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:10/18/2001
Spud Date:8/5/2001Spud Date Is:ACTUAL
Measured TD:2635 ft.Measured PB depth:2584 ft.
True Vertical TD:True Vertical PB depth:
Log Types:COMPENSATED DENSITY/NEUTRON SINGLE INDUCTION, CBL
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 303 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 85, Top: 0 ft., Bottom: 303 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2589 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 415, Top: 0 ft., Bottom: 2589 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.2200 ft.NN
VERMEJO COAL2200 ft.2510 ft.NN
TRINIDAD2510 ft.2635 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  CM - 10/27/2001                Interval Top: 2225 ft.    Interval Bottom: 2482 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:10/18/2001Choke Size:
Formation Name:VERMEJO COALCommingled:
Production Method:PUMP
Open Hole Completion:
Formation Treatment
Treatment Date:10/18/2001
Treatment Summary:16,700# 16/30 SAND & 165 BBLS FLUID // 25,700# 16/30 SAND & 214 BBLS FLUID // 16,200# 16/30 SAND & 156 BBLS FLUID //24,500# 16/30 SAND & 211 BBLS FLUID. // 50 GALS 7.5% HCL; 14,000# 16/30 SAND & 231 BBLS FLUID // 16,600# 16/30 SAND & 146 BBLS FLUID.
Tubing Size:2.875 in.Tubing Setting Depth:2490 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/27/2001Test Method:PUMP
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 290
BBLS_OIL 0
CALC_BBLS_H2O 290
CALC_BBLS_OIL 0
CALC_MCF_GAS 407
CASING_PRESS 40
MCF_GAS 407
Perforation Data:
Interval Top:2225 ft.# Of Holes:32
Interval Bottom:2482 ft.Hole Size:0.51 in.

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 6/21/2011                 Interval Top: 608 ft.    Interval Bottom: 2482 ft.

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:6/20/2011Choke Size:
Formation Name:RATON-VERMEJO COALSCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:2.875 in.Tubing Setting Depth:2494 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/21/2011Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 79
BTU_GAS 1006
CALC_BBLS_H2O 79
CALC_MCF_GAS 117
CASING_PRESS 39
MCF_GAS 117
TUBING_PRESS 3
Perforation Data:
Interval Top:608 ft.# Of Holes:184
Interval Bottom:2482 ft.Hole Size:0.51 in.

Formation RTON                     Formation Classification:  GW                     Status:  CM - 7/18/2011                 Interval Top: 608 ft.    Interval Bottom: 2070 ft.

 Completed Information for Formation RATON COAL
1st Production Date:6/20/2011Choke Size:
Formation Name:RATON COALCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/4/2011
Treatment Summary:Acidized w/2,750 gals 15% HCl acid. Frac'd w/196,421 gals 20# Delta 140 w/Sandwedge OS carrying 429,314# 16/30 Nebraska sd.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RTON.
Perforation Data:
Interval Top:608 ft.# Of Holes:72
Interval Bottom:2070 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)41056
GOR
GOR DeterminationMCFE
Average BOE per Day19.259
Average MCFE per Day111.726

 Federal Financial Assurance  i

 Tribal Well  i No
