Wellbore #00 Wellbore Classification: GW Status: SI - 10/1/2017 Measured TD: 2298 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 10/1/2017 | | Wellbore Permit | | | Permit #: | 20011054 | Expiration Date: | 5/28/2002 | | Proposed Depth/Form: | 2800 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

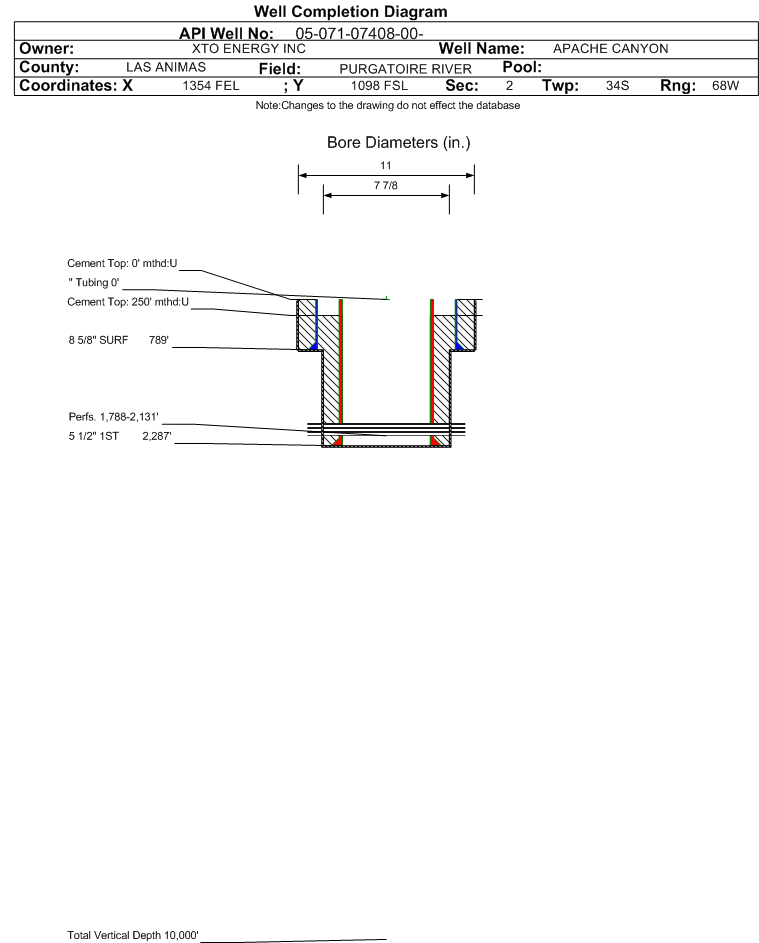

| Wellbore Completed | | Completion Date: | 3/5/2002 | | Spud Date: | 2/7/2002 | Spud Date Is: | ACTUAL | | Measured TD: | 2298 ft. | Measured PB depth: | 2296 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CDL, SIL, CBL | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 789 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 280, Top: 0 ft., Bottom: 789 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2287 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 262, Top: 250 ft., Bottom: 2287 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1776 ft. | N | N | | VERMEJO COAL | 1776 ft. | 2150 ft. | N | N | | TRINIDAD | 2150 ft. | 2255 ft. | N | N | | PIERRE | 2255 ft. | 2290 ft. | N | N |
Formation VRMJ Formation Classification: GW Status: SI - 1/1/2015 Interval Top: 1788 ft. Interval Bottom: 2131 ft.| Completed Information for Formation VERMEJO COAL | | 1st Production Date: | 1/21/2005 | Choke Size: | | | Formation Name: | VERMEJO COAL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/11/2005 | | Treatment Summary: | Original 2002 Vermejo Perfs 1816'-2131' (132 holes). New 2005 Vermejo Perfs 1788'-2129' (36 holes).
2005 Frac Treatment: Acidized 1788'-2129' perfs w/100 gals 15% HCl acid and frac'd w/108,396 gals 20# Delta 140 w/sandwedge NT carrying 39,800# 16/30 & 137,900# 12/20 Brady sand.
2005 Frac is not broken down due to it being completed prior to the 2012 Frac Ruling. | | Formation Treatment | | Treatment Date: | 3/5/2002 | | Treatment Summary: | SEE SCANNED DOC# 1336298 |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 25 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 25 | | CALC_MCF_GAS | 2 | | MCF_GAS | 2 |
| | Perforation Data: | | Interval Top: | 1788 ft. | # Of Holes: | 168 | | Interval Bottom: | 2131 ft. | Hole Size: | 4 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2028 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (SI ) | Y | Defined Inactive
10/31/2014 |
| Low Producing | Y | Production Period
07/2024 - 06/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
