Wellbore #00 Wellbore Classification: CBM Status: PR - 1/1/2022 Measured TD: 2215 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 1/1/2022 | | Wellbore Permit | | | Permit #: | 20011053 | Expiration Date: | 5/28/2002 | | Proposed Depth/Form: | 2800 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

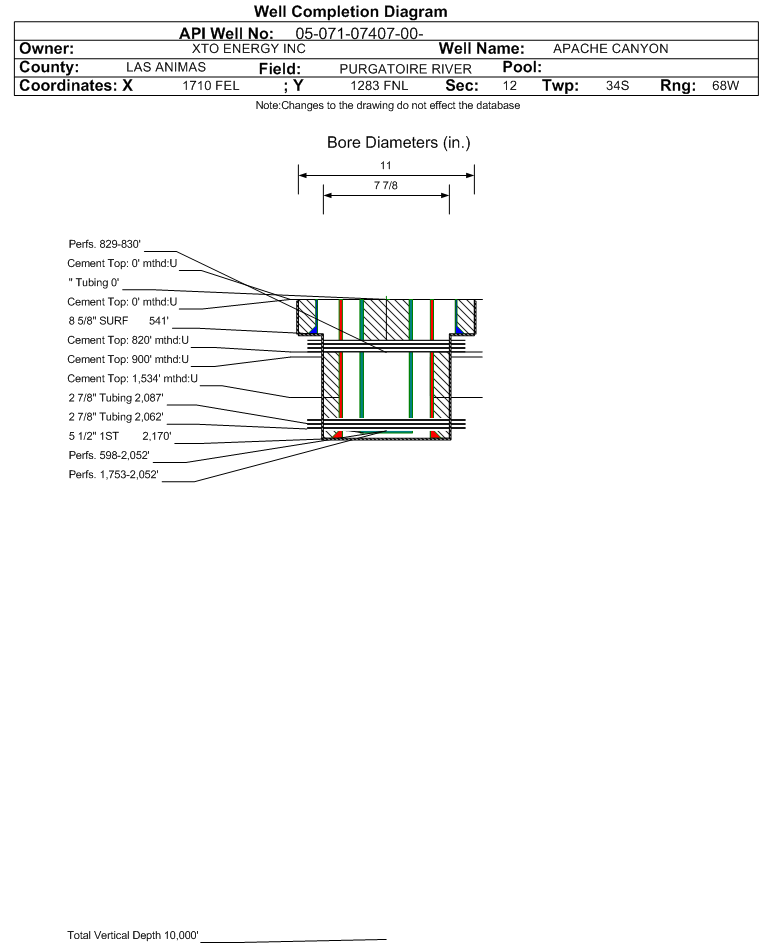

| Wellbore Completed | | Completion Date: | 9/17/2001 | | Spud Date: | 7/26/2001 | Spud Date Is: | ACTUAL | | Measured TD: | 2215 ft. | Measured PB depth: | 2209 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CDL, SIL, CBL (4) | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 541 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 150, Top: 0 ft., Bottom: 541 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2170 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 422, Top: 1534 ft., Bottom: 2170 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 155, Top: 900 ft., Bottom: 1513 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 50, Top: 820 ft., Bottom: 1534 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 85, Top: 0 ft., Bottom: 680 ft., Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1700 ft. | N | N | | VERMEJO COAL | 1700 ft. | 2070 ft. | N | N | | TRINIDAD | 2070 ft. | 2215 ft. | N | N |
Formation VRMJ Formation Classification: GW Status: CM - 3/10/2010 Interval Top: 1753 ft. Interval Bottom: 2052 ft.| Completed Information for Formation VERMEJO COAL | | 1st Production Date: | 9/17/2001 | Choke Size: | | | Formation Name: | VERMEJO COAL | Commingled: | | | Production Method: | 30N-095 PC PUMP | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 9/17/2001 | | Treatment Summary: | SEE SCANNED DOC# 1336292 |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2062 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/17/2001 | Test Method: | | | Hours Tested: | | Gas Type: | COAL GAS | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 190 | | CALC_BBLS_H2O | 190 | | CALC_MCF_GAS | 2 | | MCF_GAS | 2 |
| | Perforation Data: | | Interval Top: | 1753 ft. | # Of Holes: | 180 | | Interval Bottom: | 2052 ft. | Hole Size: | 4 in. |
|
Formation RTON Formation Classification: GW Status: CM - 8/2/2010 Interval Top: 829 ft. Interval Bottom: 830 ft.| Completed Information for Formation RATON COAL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | RATON COAL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 7/17/2010 | | Treatment Summary: | Acidized w/3,000 gals 15% HCl acid. Frac'd w/185,526 gals 20# Delta 140 w/Sandwedge OS carrying 27,356# 16/30 Brady sd & 365,539# 12/20 Brady sd. | | Formation Treatment | | Treatment Date: | 7/6/2010 | | Treatment Summary: | SET 5 1/2 CICR @ 656 PUMPED 75 SKS CMT DOWN 2 7/8 TBG TO SQZ PERFS FROM829 TO 803. GOOD CMT BOND FR/ 1,000 TO 828. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation RTON. |
| | Perforation Data: | | Interval Top: | 829 ft. | # Of Holes: | 4 | | Interval Bottom: | 830 ft. | Hole Size: | 0.45 in. |
|
Formation RT-VJ Formation Classification: GW Status: PR - 1/1/2022 Interval Top: 598 ft. Interval Bottom: 2052 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 8/10/2010 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2087 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/11/2010 | Test Method: | Pumping | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 15 | | BTU_GAS | 1008 | | CALC_BBLS_H2O | 15 | | CASING_PRESS | 4 | | TUBING_PRESS | 5 |
| | Perforation Data: | | Interval Top: | 598 ft. | # Of Holes: | 254 | | Interval Bottom: | 2052 ft. | Hole Size: | 0.45 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 12172 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 5.742 |
| Average MCFE per Day | 33.265 |
| Federal Financial Assurance | i | |
|
|
