COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07404		Well Classification: CBM Status: PR - 4/19/2010
Well Name/No:APACHE CANYON #07-14V
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/19/2010
FacilityID:260234LocationID:308022
County:LAS ANIMAS #071Location:SESW 7 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8068 ft.
Basin:RATON BASIN
Planned Location:1154FSL  1267 FWLLat/Long: 37.094763 / -104.933351Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.094660 / -104.933400Lat/Long Source: Field Measured

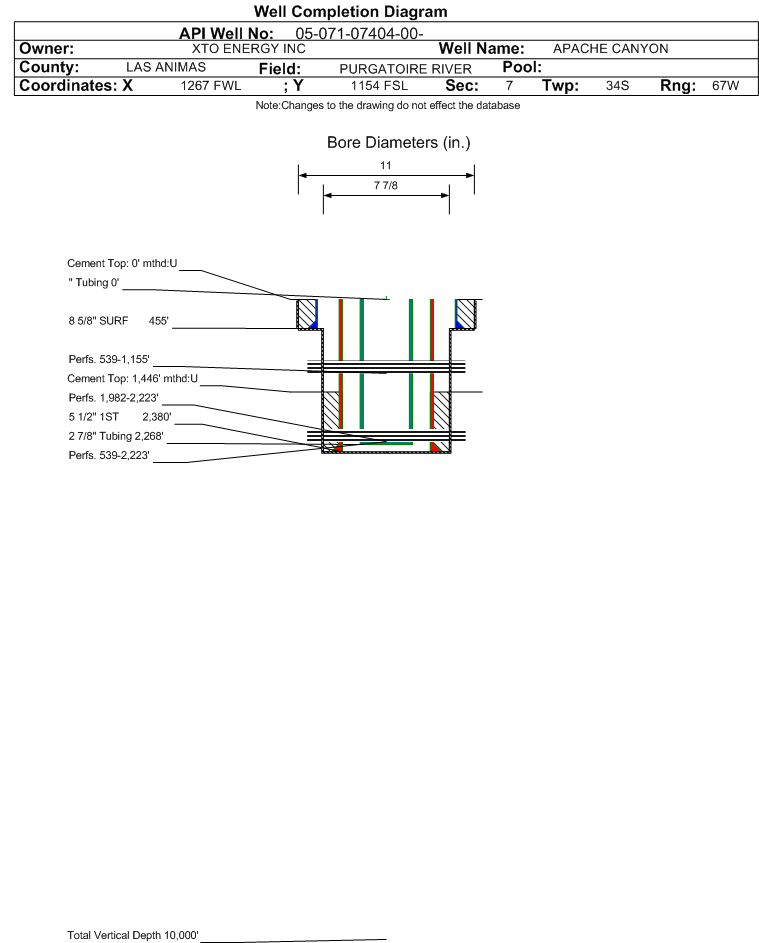

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 4/19/2010             Measured TD: 2422 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 4/19/2010
Wellbore Permit
Permit #:20011047 Expiration Date:5/27/2002
Proposed Depth/Form:2800 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:STATE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:9/20/2001
Spud Date:7/21/2001Spud Date Is:ACTUAL
Measured TD:2422 ft.Measured PB depth:2419 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CDL, SIL, CBL
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 455 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 125, Top: 0 ft., Bottom: 455 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2380 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 315, Top: 1446 ft., Bottom: 2380 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1911 ft.NN
VERMEJO COAL1911 ft.2282 ft.NN
TRINIDAD2282 ft.2425 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  CM - 2/14/2003                 Interval Top: 1982 ft.    Interval Bottom: 2223 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:9/21/2001Choke Size:
Formation Name:VERMEJO COALCommingled:
Production Method:30H200 PC PUMP
Open Hole Completion:
Formation Treatment
Treatment Date:9/20/2001
Treatment Summary:SEE SCANNED DOC# 1336304
Tubing Size:2.875 in.Tubing Setting Depth:2268 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/21/2001Test Method:
Hours Tested:Gas Type:COAL GAS
Gas Disposal:
Test TypeMeasure
BBLS_H2O 229
CALC_BBLS_H2O 229
Perforation Data:
Interval Top:1982 ft.# Of Holes:72
Interval Bottom:2223 ft.Hole Size:4 in.

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 4/19/2010                 Interval Top: 539 ft.    Interval Bottom: 2223 ft.

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:4/18/2010Choke Size:
Formation Name:RATON-VERMEJO COALSCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/17/2010
Treatment Summary:
Tubing Size:2.875 in.Tubing Setting Depth:2268 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/19/2010Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 111
BTU_GAS 1009
CALC_BBLS_H2O 111
CASING_PRESS 5
TUBING_PRESS 5
Perforation Data:
Interval Top:539 ft.# Of Holes:179
Interval Bottom:2223 ft.Hole Size:0.45 in.

Formation RTON                     Formation Classification:  GW                     Status:  CM - 4/19/2010                 Interval Top: 539 ft.    Interval Bottom: 1155 ft.

 Completed Information for Formation RATON COAL
1st Production Date:4/18/2010Choke Size:
Formation Name:RATON COALCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/17/2010
Treatment Summary:ACIDIZED WITH 4000 GALS 15 HCL ACID. FRACD WITH 252386 GALS 20# DELTA 140 WITH SANDWEDGE OS CARRYING 30302 # 16/30 BRADY SD AND 484300# 12/20 BRADY SD.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RTON.
Perforation Data:
Interval Top:539 ft.# Of Holes:107
Interval Bottom:1155 ft.Hole Size:0.45 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)16830
GOR
GOR DeterminationMCFE
Average BOE per Day7.953
Average MCFE per Day46.124

 Federal Financial Assurance  i

 Tribal Well  i No
