COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07400		Well Classification: CBM Status: PR - 1/8/2002
Well Name/No:VPR C #78
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:WAPITI OPERATING LLC - 10351
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/8/2002
FacilityID:260186LocationID:308018
County:LAS ANIMAS #071Location:SENE 23 34S66W 6
Field:PURGATOIRE RIVER - #70830Elevation:7548 ft.
Basin:RATON BASIN
Planned Location:1436FNL  1022 FELLat/Long: 37.073474 / -104.743235Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.073470 / -104.743230Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 1/8/2002             Measured TD: 2085 ft.    Vertical TD: 2085 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 1/8/2002
Wellbore Permit
Permit #:20011017 Expiration Date:5/21/2002
Proposed Depth/Form:2240 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:11/7/2001
Spud Date:10/12/2001Spud Date Is:ACTUAL
Measured TD:2085 ft.Measured PB depth:1993 ft.
True Vertical TD:2085 ft.True Vertical PB depth:1993 ft.
Log Types:ARRAY INDUCTION, ENLD, CBL AND MUD LOG

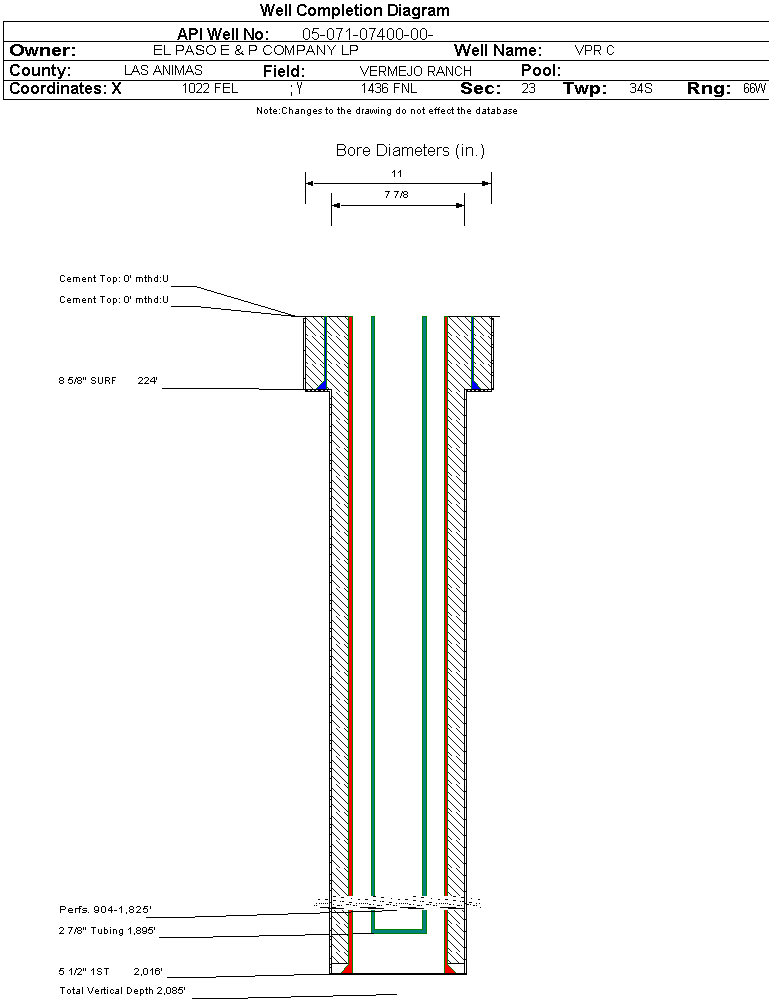

Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 224 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 75, Top: 0 ft., Bottom: 224 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2016 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 234, Top: 0 ft., Bottom: 1987 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1399 ft.NN
VERMEJO COAL1538 ft.1832 ft.NN
TRINIDAD1835 ft.NN

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 1/8/2002                  Interval Top: 904 ft.    Interval Bottom: 1825 ft.

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:11/8/2001Choke Size:0.250 in.
Formation Name:RATON-VERMEJO COALSCommingled:
Production Method:PUMPING CBM GAS WELL. PRODUCED WATER INJECTED IN WDW.
Open Hole Completion:
Formation Treatment
Treatment Date:11/7/2001
Treatment Summary:10/30/01 PUMPED 1,000 GALS OF 7.5% HCL ACID; 120 BIO BALLS; 1,043,000 SCF N2 W/ 137,140# OF 16/30 MESH SAND AT 16 BPM (STAGE 1THRU STAGE 3) THRU 88 HOLES 904' - 1,825'.
Tubing Size:2.875 in.Tubing Setting Depth:1895 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/8/2001Test Method:PUMPING FLOW
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
CALC_MCF_GAS 0
CASING_PRESS 0
MCF_GAS 0
Perforation Data:
Interval Top:904 ft.# Of Holes:88
Interval Bottom:1825 ft.Hole Size:0.51 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)5996
GOR
GOR DeterminationMCFE
Average BOE per Day2.836
Average MCFE per Day16.444

 Federal Financial Assurance  i

 Tribal Well  i No
