COGIS - WELL SCOUT CARD

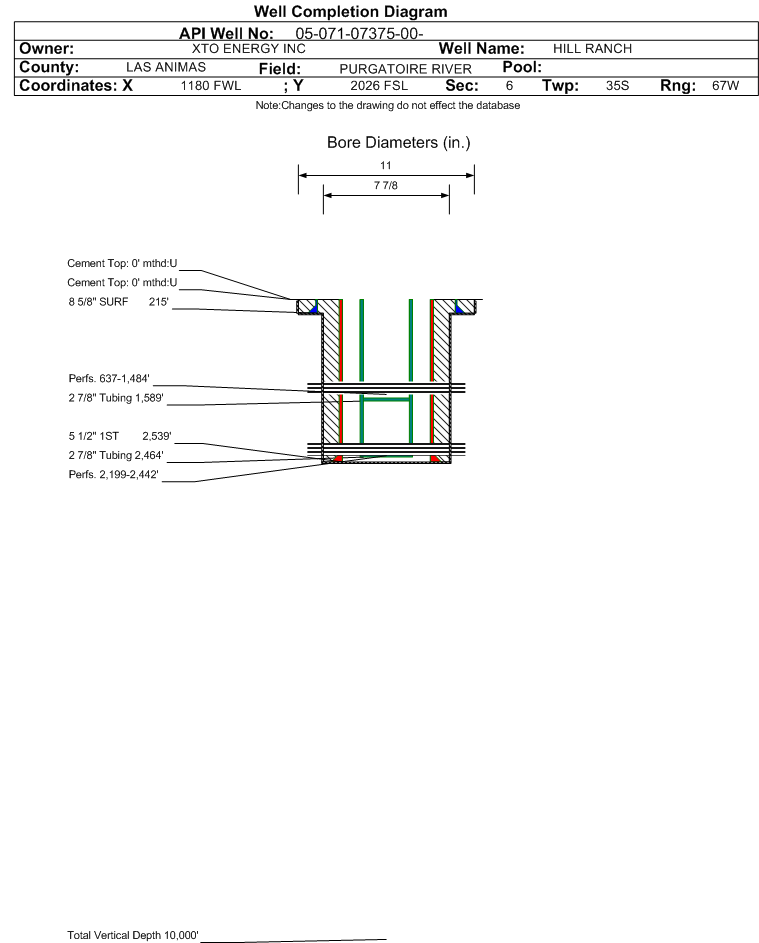

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07375		Well Classification: CBM Status: PR - 12/24/2006
Well Name/No:HILL RANCH #06-12V
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/24/2006
FacilityID:260050LocationID:308001
County:LAS ANIMAS #071Location:NWSW 6 35S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8289 ft.
Planned Location:2026FSL  1180 FWLLat/Long: 37.024694 / -104.934160Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.024650 / -104.933540Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 12/24/2006             Measured TD: 2560 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 12/24/2006
Wellbore Permit
Permit #:20010902 Expiration Date:5/7/2002
Proposed Depth/Form:2800 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:7/29/2001
Spud Date:6/20/2001Spud Date Is:ACTUAL
Measured TD:2560 ft.Measured PB depth:2537 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CDL, SIL, CBL
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 215 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 55, Top: 0 ft., Bottom: 215 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2539 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 2539 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.2180 ft.NN
VERMEJO COAL2180 ft.2486 ft.NN
TRINIDAD2486 ft.2560 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  CM - 8/15/2001                 Interval Top: 2199 ft.    Interval Bottom: 2442 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:8/9/2001Choke Size:
Formation Name:VERMEJO COALCommingled:
Production Method:PUMPING(30NO095-PC)
Open Hole Completion:
Formation Treatment
Treatment Date:7/29/2001
Treatment Summary:COBRA FRAC W/ PERFORATIONS: 2426'-34', 2439'-42' (4 SPF, 44 HOLES) FRAC 1ST STAGE: 14,638 FRAC FLUID INC. PAD, 49,100# 16/30 BRADY, 390,333 SCF NC, DELTA FOAM PERFORATIONS: 2347'-50', 2359'-62', 2369'-71' (4 SPF. 32 HOLES) FRAC 2ND STAGE: 4,361 FRAC FLUID INC. PAD, 16,250# 16/30 BRADY, 111,392 SCF N2, PERFORATIONS: 2263'-67', 2276'-79', 2281'-88' (4 SPF, 56 HOLES) FRAC 3RD STAGE: 12,452 FRAC FLUID INC. PAD, 49,570# 16/30 BRADY, 358,657 SCF N2, PERFORATIONS: 2199'-06' (4 SPF, 56 HOLES) FRAC 4TH STAGE: 4,299 FRAC FLUID INC. PAD, 17,490# 16/30 BRADY, 129,486 SCF N2,
Tubing Size:2.875 in.Tubing Setting Depth:2464 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/9/2001Test Method:ORIFICE METER
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 136
BBLS_OIL 0
BTU_GAS 1000
CALC_BBLS_H2O 136
CALC_BBLS_OIL 0
CALC_MCF_GAS 2
CASING_PRESS 25
MCF_GAS 2
Perforation Data:
Interval Top:2199 ft.# Of Holes:188
Interval Bottom:2442 ft.Hole Size:4 in.

Formation RTON                     Formation Classification:  GW                     Status:  CM - 12/24/2006                Interval Top: 637 ft.    Interval Bottom: 1484 ft.

 Completed Information for Formation RATON COAL
1st Production Date:12/23/2006Choke Size:
Formation Name:RATON COALCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:12/11/2006
Treatment Summary:ACIDIZED W/3250GALS 15% HCI ACID. FRAC'D W/ 161,146 GALS 20# DELTA 140 W/SANDWEDGE NT CARRYING 19,000# 16/30 & 337,902# 12/20 BRADY SAND.
Tubing Size:2.875 in.Tubing Setting Depth:1589 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/24/2006Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 92
BBLS_OIL 0
BTU_GAS 968.9
CALC_BBLS_H2O 92
CALC_BBLS_OIL 0
CALC_MCF_GAS 0
CASING_PRESS 0
GRAVITY_OIL 0.576
MCF_GAS 0
TUBING_PRESS 4
Perforation Data:
Interval Top:637 ft.# Of Holes:67
Interval Bottom:1484 ft.Hole Size:0.45 in.

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 12/24/2006

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:12/24/2006Choke Size:
Formation Name:RATON-VERMEJO COALSCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RT-VJ.
No Perforation Data was found for formation RT-VJ.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
June 2024 - May 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)12903
GOR
GOR DeterminationMCFE
Average BOE per Day6.090
Average MCFE per Day35.334

 Federal Financial Assurance  i

 Tribal Well  i No
