COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07359		Well Classification: CBM Status: PR - 12/1/2010
Well Name/No:HILL RANCH #26-09V
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/1/2010
FacilityID:260022LocationID:307994
County:LAS ANIMAS #071Location:NESE 26 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7839 ft.
Basin:RATON BASIN
Planned Location:2144FSL  1281 FELLat/Long: 37.053884 / -104.852318Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.053820 / -104.852280Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 12/1/2010             Measured TD: 2365 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 12/1/2010
Wellbore Permit
Permit #:010880 Expiration Date:5/3/2002
Proposed Depth/Form:2800 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:11/27/2001
Spud Date:5/16/2001Spud Date Is:ACTUAL
Measured TD:2365 ft.Measured PB depth:2360 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CDL, SIL, ACBL

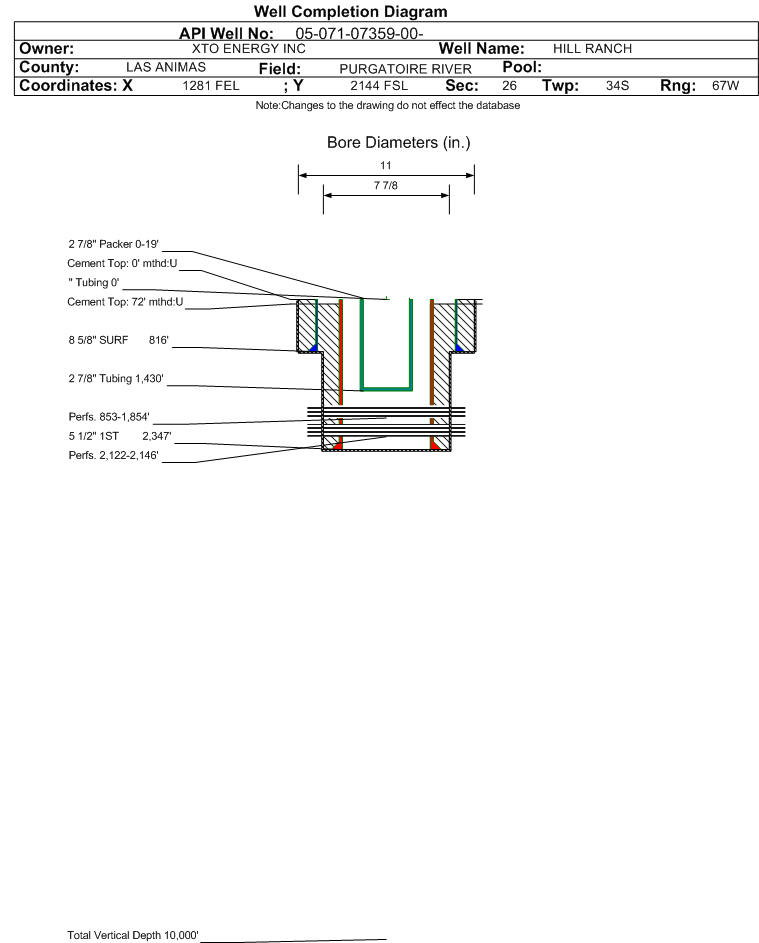

Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 816 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 210, Top: 0 ft., Bottom: 816 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2347 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 392, Top: 72 ft., Bottom: 2347 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1872 ft.NN
VERMEJO COAL1872 ft.2193 ft.NN
TRINIDAD2193 ft.2365 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  CM - 9/9/2006                  Interval Top: 2122 ft.    Interval Bottom: 2146 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:12/31/2001Choke Size:
Formation Name:VERMEJO COALCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/24/2006
Treatment Summary:RE-FRAC'D VRMJ COAL ACIDIZING W/800 GALS 15% HCI ACID. FRAC'D W/56,329 GALS 203 DELTA 140 W/SANDWEDGE NT CARRYING 87,927# 16/30 BRADY SD. ORIGINAL PERFS FOR VMRJ COAL WERE 1880' - 2176'.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/9/2006Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 32
BBLS_OIL 0
BTU_GAS 990
CALC_BBLS_H2O 32
CALC_BBLS_OIL 0
CALC_MCF_GAS 30
CASING_PRESS 15
GRAVITY_OIL 1
MCF_GAS 30
TUBING_PRESS 6
Perforation Data:
Interval Top:2122 ft.# Of Holes:24
Interval Bottom:2146 ft.Hole Size:0.4 in.

Formation RTON                     Formation Classification:  GW                     Status:  CM - 9/9/2006                  Interval Top: 853 ft.    Interval Bottom: 1854 ft.

 Completed Information for Formation RATON COAL
1st Production Date:9/8/2006Choke Size:
Formation Name:RATON COALCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/25/2006
Treatment Summary:ACIDIZED W/2700 GALS 15% HCI ACID. FRAC'D W/216,690 GALS 20# DELTA 140 FRAC W/SANDWEDGE NT CARRYING 367,977# 12/20 BRADY SD&30,000# 12/20 SLC SD AND 24,600# 16/30 BRADY SAND.
Tubing Size:2.875 in.Tubing Setting Depth:1430 ft.
Tubing Packer Depth:1 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/9/2006Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 32
BTU_GAS 990
CALC_BBLS_H2O 32
CALC_MCF_GAS 30
CASING_PRESS 15
GRAVITY_OIL 1
MCF_GAS 30
TUBING_PRESS 6
Perforation Data:
Interval Top:853 ft.# Of Holes:96
Interval Bottom:1854 ft.Hole Size:0.4 in.

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 12/1/2010

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:9/8/2006Choke Size:
Formation Name:RATON-VERMEJO COALSCommingled:No
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RT-VJ.
No Perforation Data was found for formation RT-VJ.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)25758
GOR
GOR DeterminationMCFE
Average BOE per Day12.160
Average MCFE per Day70.561

 Federal Financial Assurance  i

 Tribal Well  i No
