Wellbore #00 Wellbore Classification: CBM Status: PR - 3/10/2010 Measured TD: 2395 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 3/10/2010 | | Wellbore Permit | | | Permit #: | 010860 | Expiration Date: | 5/3/2002 | | Proposed Depth/Form: | 2800 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

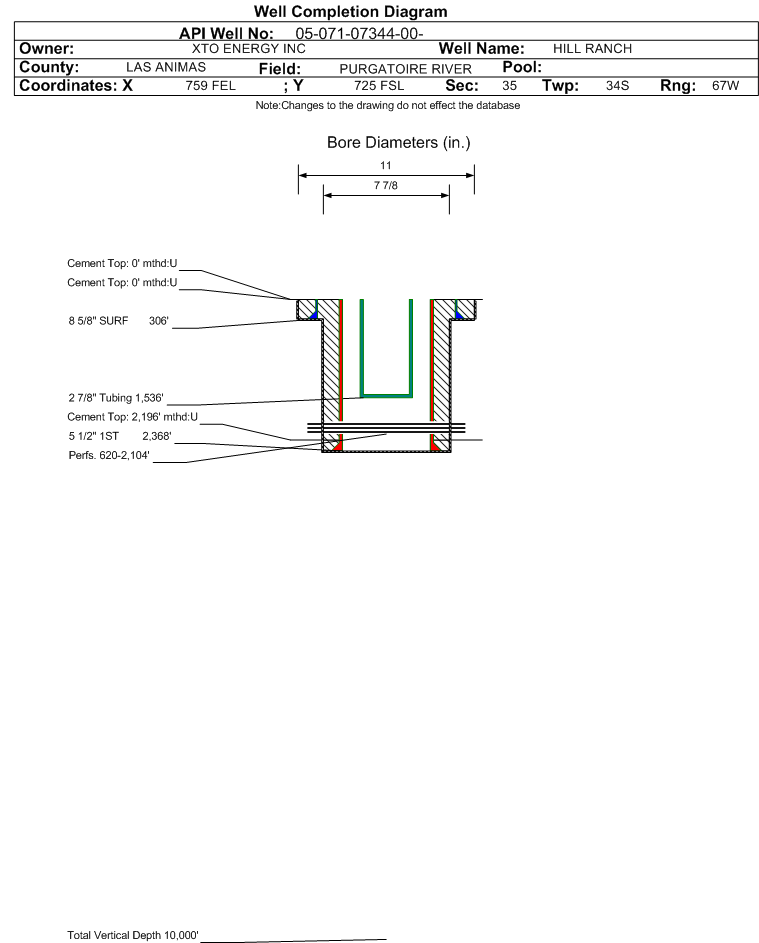

| Wellbore Completed | | Completion Date: | 1/9/2002 | | Spud Date: | 5/18/2002 | Spud Date Is: | ACTUAL | | Measured TD: | 2395 ft. | Measured PB depth: | 2363 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CDL, SIL, CBL, SECTOR BOND, PULSED ECHO CSG. INSPECTION LOG,THEMAL MULT. DECAY LITHO,LOG | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 306 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 85, Top: 0 ft., Bottom: 306 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2368 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 355, Top: 2196 ft., Bottom: 2368 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 0 ft., Bottom: 2196 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1900 ft. | N | N | | VERMEJO COAL | 1900 ft. | 2210 ft. | N | N | | TRINIDAD | 2210 ft. | 2395 ft. | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 3/10/2010 Interval Top: 620 ft. Interval Bottom: 2104 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | 5/23/2006 | Choke Size: | | | Formation Name: | RATON-VERMEJO COALS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/13/2006 | | Treatment Summary: | ACIDIZED W/4500 GALS 15% HCI ACID. FRAC'D W/260,563 GALS 20# DELTA 140 W/SANDWEDGE NT CARRYING 25,000# 16/30 & 504,031# 12/20 BRADY SAND. |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 1536 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/24/2006 | Test Method: | PUMPING | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 93 | | BBLS_OIL | 0 | | BTU_GAS | 1048 | | CALC_BBLS_H2O | 93 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 0 | | CASING_PRESS | 6 | | GRAVITY_OIL | 1 | | MCF_GAS | 0 | | TUBING_PRESS | 3 |
| | Perforation Data: | | Interval Top: | 620 ft. | # Of Holes: | 105 | | Interval Bottom: | 2104 ft. | Hole Size: | 0.4 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 12683 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 5.994 |
| Average MCFE per Day | 34.744 |
| Federal Financial Assurance | i | |
|
|
