COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07309		Well Classification: CBM Status: PR - 10/18/2001
Well Name/No:VPR C #61
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:WAPITI OPERATING LLC - 10351
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/18/2001
FacilityID:259840LocationID:307956
County:LAS ANIMAS #071Location:NWNW 35 34S66W 6
Field:PURGATOIRE RIVER - #70830Elevation:7562 ft.
Planned Location:1123FNL  839 FWLLat/Long: 37.045325 / -104.754935Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.045310 / -104.754940Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 10/18/2001             Measured TD: 2040 ft.    Vertical TD: 2040 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 10/18/2001
Wellbore Permit
Permit #:20010721 Expiration Date:4/18/2002
Proposed Depth/Form:2220 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:

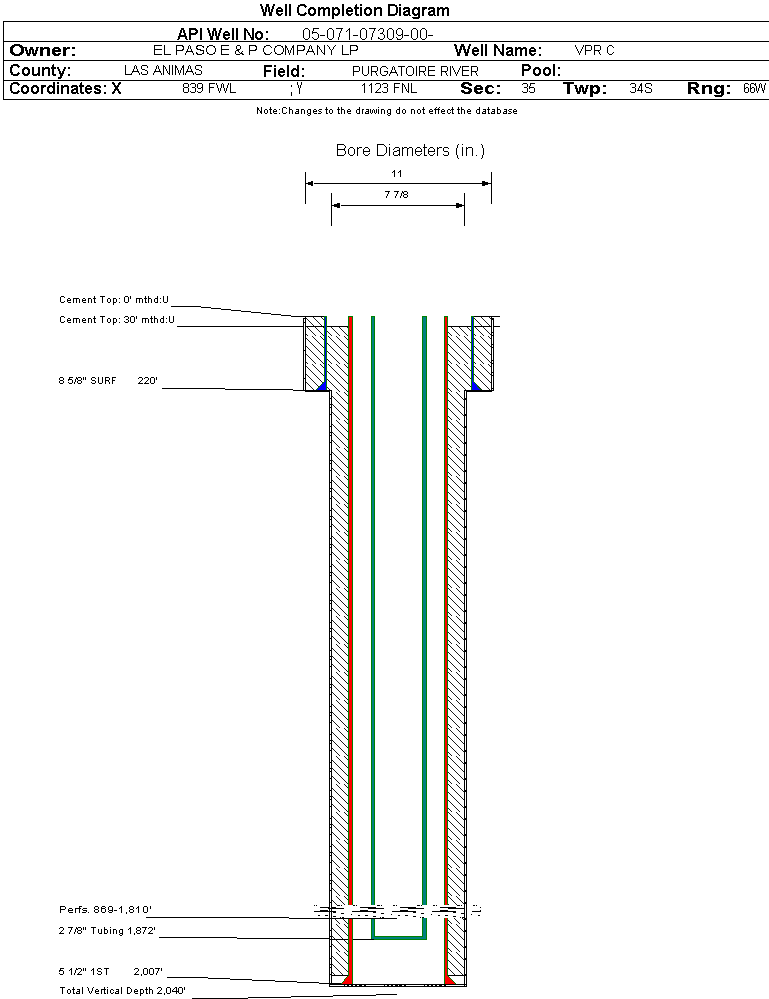

Wellbore Completed
Completion Date:10/11/2001
Spud Date:9/21/2001Spud Date Is:ACTUAL
Measured TD:2040 ft.Measured PB depth:2007 ft.
True Vertical TD:2040 ft.True Vertical PB depth:2007 ft.
Log Types:ARRAY INDUCTION, ENLD, AND CEMENT BOND LOG
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 220 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 75, Top: 0 ft., Bottom: 220 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2007 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 316, Top: 30 ft., Bottom: 1982 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.987 ft.NN
VERMEJO COAL1565 ft.1816 ft.NN
TRINIDAD1826 ft.NN

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 10/18/2001                Interval Top: 869 ft.    Interval Bottom: 1810 ft.

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:10/18/2001Choke Size:0.250 in.
Formation Name:RATON-VERMEJO COALSCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:10/11/2001
Treatment Summary:10/03/2001 PUMPED 1,050 GALS OF 7.5% HCL; 66 BALL SEALERS; 865,000 SCF N2 W/ 136,000 # OF 16/30 MESH SAND AT 16 BPM (STAGE 1 THRU STAGE 3) THRU 76 HOLES 869' - 1810'.
Tubing Size:2.875 in.Tubing Setting Depth:1872 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/18/2001Test Method:PUMP
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
CALC_BBLS_H2O 0
CALC_MCF_GAS 0
CASING_PRESS 0
MCF_GAS 0
TUBING_PRESS 0
Perforation Data:
Interval Top:869 ft.# Of Holes:76
Interval Bottom:1810 ft.Hole Size:0.51 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)8271
GOR
GOR DeterminationMCFE
Average BOE per Day3.906
Average MCFE per Day22.637

 Federal Financial Assurance  i

 Tribal Well  i No
