COGIS - WELL SCOUT CARD

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07287
Well Classification: CBM Status: PR - 6/9/2006
Well Name/No:HILL RANCH #27-05
(Click Well Name for Production Data)
Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)
Federal Or State Lease #:
Facility Status:PRStatus Date6/9/2006
FacilityID:259802LocationID:307944
County:LAS ANIMAS #071Location:SWNW 27 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7941 ft.
Planned Location:1868FNL  174 FWLLat/Long: 37.057374 / -104.883489Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.057330 / -104.883480Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 6/9/2006             Measured TD: 2455 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 6/9/2006
Wellbore Permit
Permit #:20031708 Expiration Date:9/14/2004
Proposed Depth/Form:2455 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: , Depth: 720 ft., Weight: 23 , Citings Type: PLANNED
Cement:Sacks: 185, Top: 0 ft., Bottom: 720 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 2407 ft., Weight: 15.5 , Citings Type: PLANNED
Cement:Sacks: 477, Top: 0 ft., Bottom: 2407 ft.

Wellbore Completed
Completion Date:10/2/2001
Spud Date:5/15/2001Spud Date Is:ACTUAL
Measured TD:2455 ft.Measured PB depth:2445 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CDL, SIL, ACBL, SECTOR BOND LOG

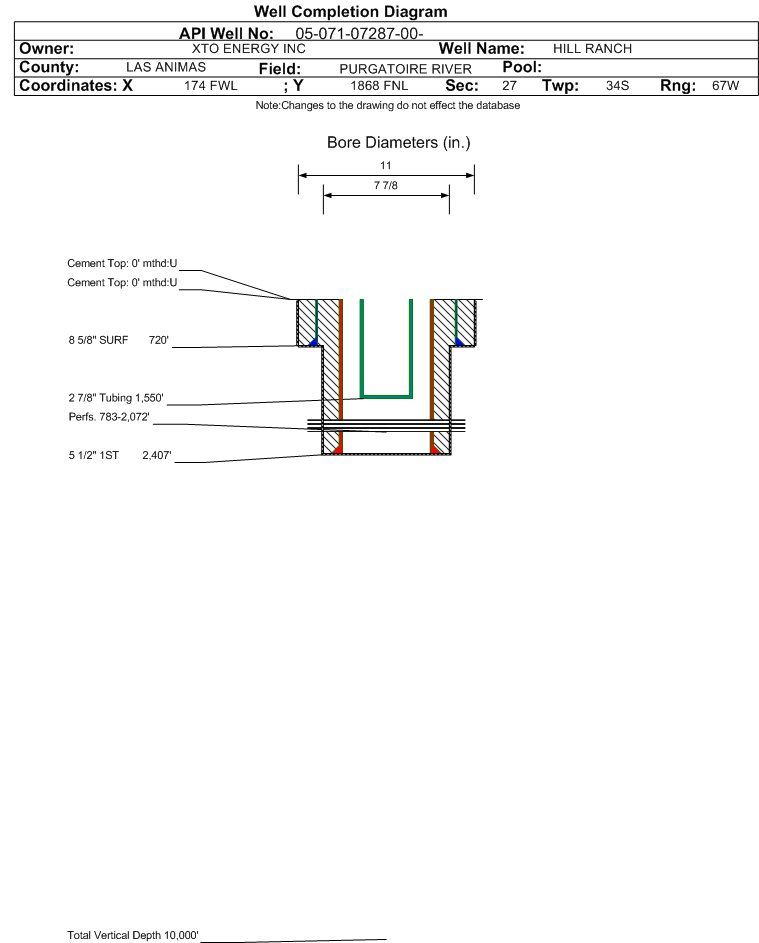

Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 720 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 185, Top: 0 ft., Bottom: 720 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2407 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 477, Top: 0 ft., Bottom: 2407 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1969 ft.NN
VERMEJO COAL1969 ft.2305 ft.NN
TRINIDAD2305 ft.2455 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  PR - 6/9/2006                  Interval Top: 783 ft.    Interval Bottom: 2072 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:6/8/2006Choke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:5/31/2006
Treatment Summary:ACIDIZED W/3600 GALS 15% HCI ACID. FRACD W/271,074 GALS 10# DELTA 140 W/SANDWEDGE NT CARRYING 102,089 AND 371,832# 12/20 BRADY SAND.
Tubing Size:2.875 in.Tubing Setting Depth:1550 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/9/2006Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 102
BBLS_OIL 0
BTU_GAS 1001
CALC_BBLS_H2O 102
CALC_BBLS_OIL 0
CALC_MCF_GAS 1
CASING_PRESS 5
GRAVITY_OIL 1
MCF_GAS 1
TUBING_PRESS 4
Perforation Data:
Interval Top:783 ft.# Of Holes:96
Interval Bottom:2072 ft.Hole Size:0.4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)34927
GOR
GOR DeterminationMCFE
Average BOE per Day16.497
Average MCFE per Day95.668

 Federal Financial Assurance  i

 Tribal Well  i No
