COGIS - WELL SCOUT CARD

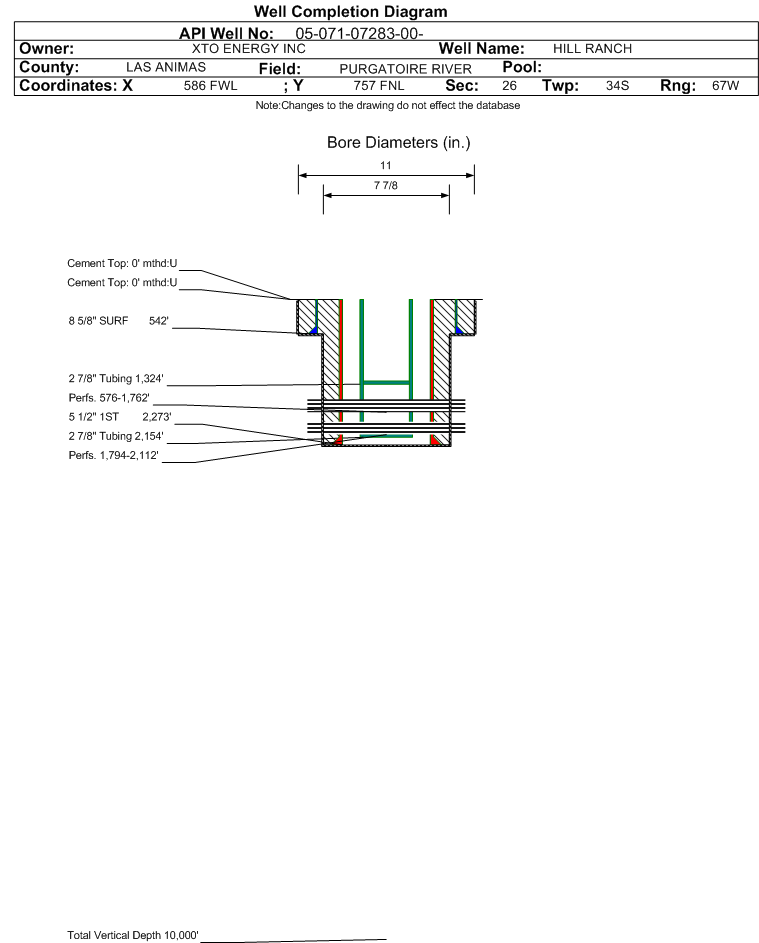

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07283
Well Classification: CBM Status: PR - 9/11/2006
Well Name/No:HILL RANCH #26-04V
(Click Well Name for Production Data)
Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)
Federal Or State Lease #:
Facility Status:PRStatus Date9/11/2006
FacilityID:259798LocationID:307942
County:LAS ANIMAS #071Location:NWNW 26 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7759 ft.
Planned Location:757FNL  586 FWLLat/Long: 37.060394 / -104.863988Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.060440 / -104.863970Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 9/11/2006             Measured TD: 2305 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 9/11/2006
Wellbore Permit
Permit #:010678 Expiration Date:4/12/2002
Proposed Depth/Form:2800 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:

Wellbore Completed
Completion Date:12/2/2001
Spud Date:5/12/2001Spud Date Is:ACTUAL
Measured TD:2305 ft.Measured PB depth:2291 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CDL,SIL,CBL
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 542 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 140, Top: 0 ft., Bottom: 542 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2273 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 358, Top: 0 ft., Bottom: 2273 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1791 ft.NN
VERMEJO COAL1791 ft.2124 ft.NN
TRINIDAD2124 ft.2305 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  CM - 2/11/2003                 Interval Top: 1794 ft.    Interval Bottom: 2112 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:N/AChoke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:PUMPING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/2/2001
Treatment Summary:
Tubing Size:2.875 in.Tubing Setting Depth:2154 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/5/2002Test Method:ORIFICE METER
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 216
BBLS_OIL 0
BTU_GAS 1000
CALC_BBLS_H2O 216
CALC_BBLS_OIL 0
CALC_MCF_GAS 6
CASING_PRESS 25
MCF_GAS 6
Perforation Data:
Interval Top:1794 ft.# Of Holes:144
Interval Bottom:2112 ft.Hole Size:4 in.

Formation RTON                     Formation Classification:  GW                     Status:  CM - 9/11/2006                 Interval Top: 576 ft.    Interval Bottom: 1762 ft.

 Completed Information for Formation RATON COAL
1st Production Date:9/10/2006Choke Size:
Formation Name:RATON COALCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/22/2006
Treatment Summary:ACIDIZED W/3100 GALS 15% HCI ACID. FRAC W/193,273 GALS 203 DELTA 140 W/SANDWEDGE NT CARRYING 17,500# 16/30 BRADY SAND 375,521# 12/20 BRADY SAND.
Tubing Size:2.875 in.Tubing Setting Depth:1324 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/11/2006Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 42
BTU_GAS 1003
CALC_BBLS_H2O 42
CALC_MCF_GAS 35
CASING_PRESS 40
GRAVITY_OIL 1
MCF_GAS 35
TUBING_PRESS 5
Perforation Data:
Interval Top:576 ft.# Of Holes:91
Interval Bottom:1762 ft.Hole Size:0.4 in.

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 9/11/2006

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:9/10/2006Choke Size:
Formation Name:RATON-VERMEJO COALSCommingled:No
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RT-VJ.
No Perforation Data was found for formation RT-VJ.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)19914
GOR
GOR DeterminationMCFE
Average BOE per Day9.408
Average MCFE per Day54.572

 Federal Financial Assurance  i

 Tribal Well  i No
