Wellbore #00 Wellbore Classification: CBM Status: PR - 3/29/2001 Measured TD: 2440 ft. Vertical TD: 2440 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM PR - 3/29/2001 | | Wellbore Permit | | | Permit #: | 010671 | Expiration Date: | 4/12/2002 | | Proposed Depth/Form: | 2600 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: RT-VJ , Formation: RATON-VERMEJO COALS , Order: , Unit Acreage: , Drill Unit: |
| | |

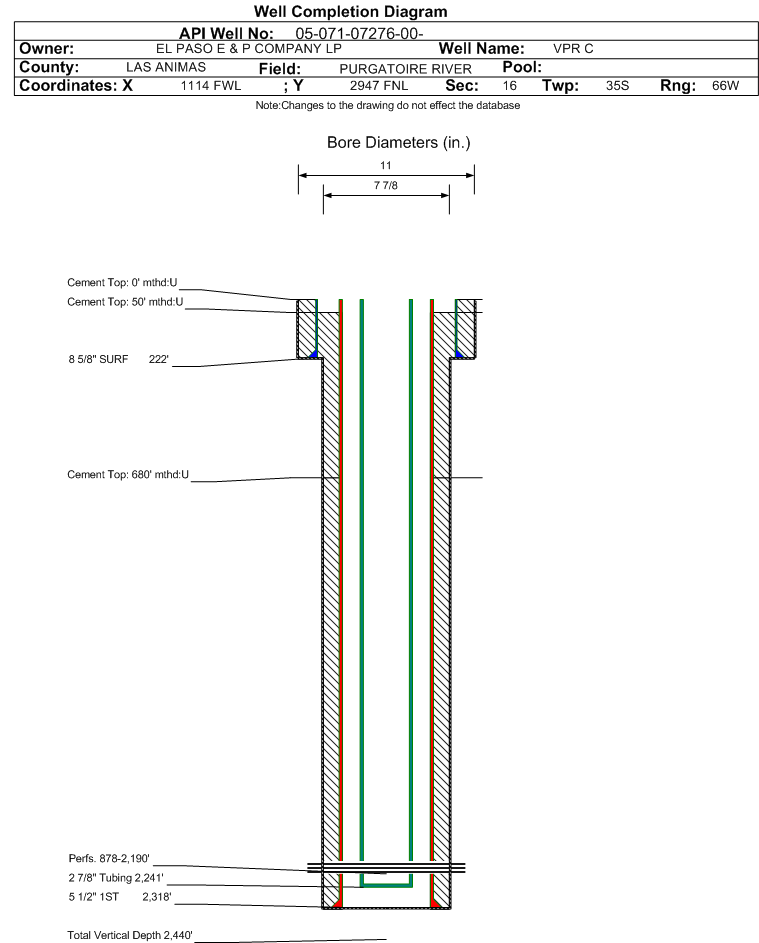

| Wellbore Completed | | Completion Date: | 10/5/2001 | | Spud Date: | 8/30/2001 | Spud Date Is: | ACTUAL | | Measured TD: | 2440 ft. | Measured PB depth: | 2321 ft. | | True Vertical TD: | 2440 ft. | True Vertical PB depth: | 2321 ft. | | Log Types: | LINEAR CORRELATION, LITHO DENSITY, MUD LOG, CEMENT BOND LOG AND TEMPERATURE LOG | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 222 ft., Weight: 23 , Citings Type: ACTUAL | | Cement: | Sacks: 85, Top: 0 ft., Bottom: 222 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2318 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 350, Top: 680 ft., Bottom: 2325 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 107, Top: 50 ft., Bottom: 680 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 150 ft. | 1872 ft. | N | N | | VERMEJO COAL | 1958 ft. | 2190 ft. | N | N | | TRINIDAD | 2203 ft. | | N | N |
Formation RT-VJ Formation Classification: GW Status: PR - 5/14/2002 Interval Top: 878 ft. Interval Bottom: 2190 ft.| Completed Information for Formation RATON-VERMEJO COALS | | 1st Production Date: | N/A | Choke Size: | 0.250 in. | | Formation Name: | RATON-VERMEJO COALS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/5/2001 | | Treatment Summary: | |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 2241 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/11/2001 | Test Method: | PUMP | | Hours Tested: | 24 | Gas Type: | COAL GAS | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 160 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 160 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 0 | | CASING_PRESS | 0 | | MCF_GAS | 0 |
| | Perforation Data: | | Interval Top: | 878 ft. | # Of Holes: | 220 | | Interval Bottom: | 2190 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 60266 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 28.484 |
| Average MCFE per Day | 165.205 |
| Federal Financial Assurance | i | |
|
|
