COGIS - WELL SCOUT CARD

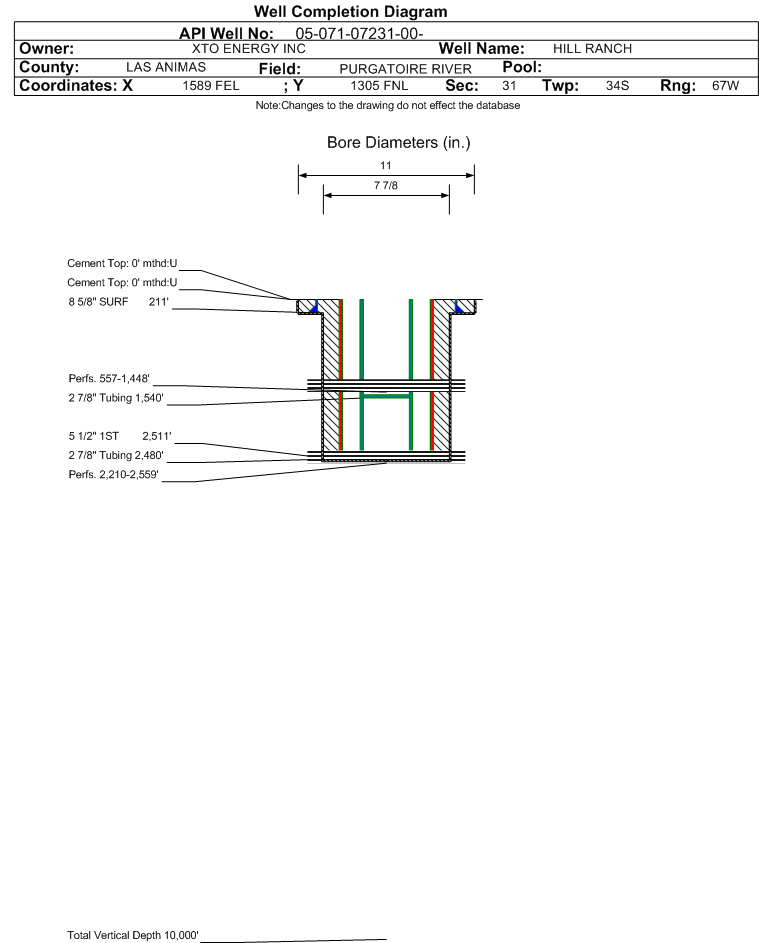

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07231		Well Classification: CBM Status: PR - 5/5/2007
Well Name/No:HILL RANCH #31-02 V
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/5/2007
FacilityID:259273LocationID:307902
County:LAS ANIMAS #071Location:NWNE 31 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8221 ft.
Basin:RATON BASIN
Planned Location:1305FNL  1589 FELLat/Long: 37.044454 / -104.925710Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.044450 / -104.925670Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 5/5/2007             Measured TD: 2545 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 5/5/2007
Wellbore Permit
Permit #:010266 Expiration Date:2/11/2002
Proposed Depth/Form:2800 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:10/5/2001
Spud Date:4/23/2001Spud Date Is:ACTUAL
Measured TD:2545 ft.Measured PB depth:2514 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CDL, SIL, CBL
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 211 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 60, Top: 0 ft., Bottom: 211 ft., Determination Method: CBL
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2511 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: , Bottom: 2505 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.2121 ft.NN
VERMEJO COAL2121 ft.2431 ft.NN
TRINIDAD2431 ft.2545 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  CM - 10/9/2001                 Interval Top: 2210 ft.    Interval Bottom: 2559 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:10/9/2001Choke Size:
Formation Name:VERMEJO COALCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/5/2001
Treatment Summary:ACIDIZED W/100 GALS 7.5% HCI ACID. FRAC'D W/26,855 GALS FLUID (INC PAD), 99,320# 16/30 BRADY SAND & 634,129 SCF N2.
Tubing Size:2.875 in.Tubing Setting Depth:2480 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/9/2001Test Method:ORIFICE MTR
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 230
BBLS_OIL 0
BTU_GAS 1000
CALC_BBLS_H2O 230
CALC_BBLS_OIL 0
CALC_MCF_GAS 9
CASING_PRESS 25
MCF_GAS 9
Perforation Data:
Interval Top:2210 ft.# Of Holes:128
Interval Bottom:2559 ft.Hole Size:0.4 in.

Formation RTON                     Formation Classification:  GW                     Status:  CM - 5/8/2007                  Interval Top: 557 ft.    Interval Bottom: 1448 ft.

 Completed Information for Formation RATON COAL
1st Production Date:5/5/2007Choke Size:
Formation Name:RATON COALCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/5/2007
Treatment Summary:ACIDIZED W/3000 GALS 15% HCI ACID. FRAC'D W/198,154 GALS 20# DELTA 140 W/SANDWEDGE OS CARRYING 18,000# 16/30 & 435,951 12/20 BRADY SAND.
Tubing Size:2.875 in.Tubing Setting Depth:1540 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/8/2007Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 100
BBLS_OIL 0
BTU_GAS 1005
CALC_BBLS_H2O 100
CALC_BBLS_OIL 0
CALC_MCF_GAS 21
CASING_PRESS 3
MCF_GAS 21
TUBING_PRESS 7
Perforation Data:
Interval Top:557 ft.# Of Holes:83
Interval Bottom:1448 ft.Hole Size:0.45 in.

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 5/5/2007

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:5/5/2007Choke Size:
Formation Name:RATON-VERMEJO COALSCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RT-VJ.
No Perforation Data was found for formation RT-VJ.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)13461
GOR
GOR DeterminationMCFE
Average BOE per Day6.358
Average MCFE per Day36.861

 Federal Financial Assurance  i

 Tribal Well  i No
