COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07229		Well Classification: CBM Status: PR - 10/18/2001
Well Name/No:HILL RANCH #09-12 R
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/18/2001
FacilityID:259271LocationID:333719
County:LAS ANIMAS #071Location:NWSW 9 35S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8195 ft.
Basin:RATON BASIN
Planned Location:1721FSL  1060 FWLLat/Long: 37.009535 / -104.898519Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.009460 / -104.898460Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 10/18/2001             Measured TD: 2250 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 10/18/2001
Wellbore Permit
Permit #:20020504 Expiration Date:3/11/2003
Proposed Depth/Form:2500 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: RTON , Formation: RATON COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:4/16/2002
Spud Date:3/14/2002Spud Date Is:ACTUAL
Measured TD:2250 ft.Measured PB depth:2213 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CDL,SIL,CBL(2)

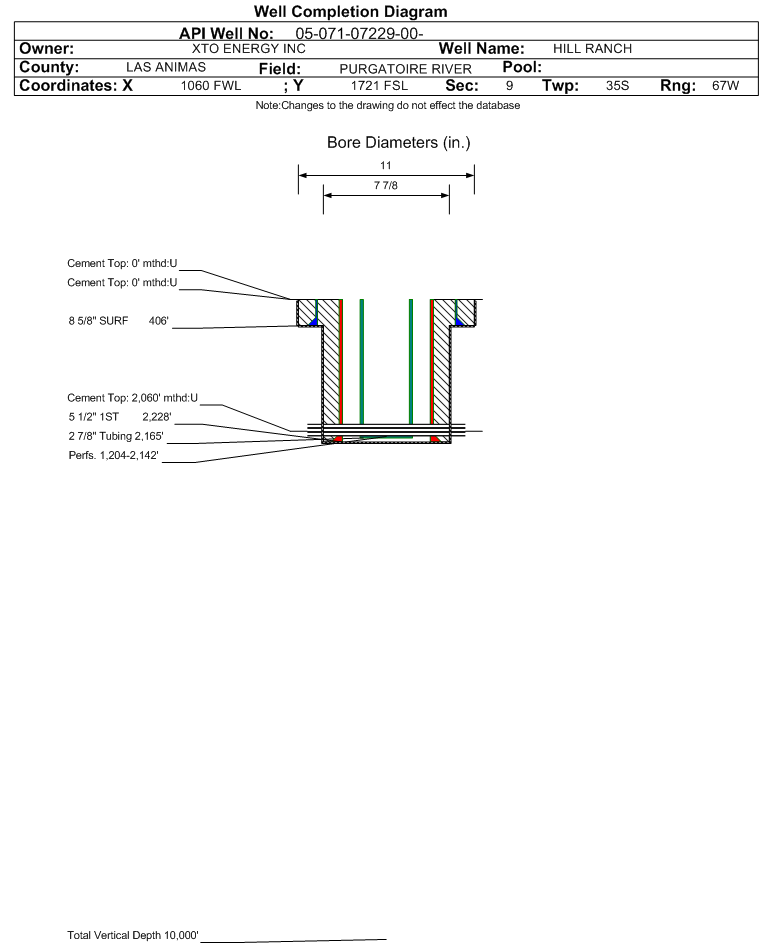

Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 406 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 110, Top: 0 ft., Bottom: 406 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2228 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 195, Top: 2060 ft., Bottom: 2228 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 2060 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.2250 ft.NN

Formation RTON                     Formation Classification:  GW                     Status:  PR - 10/18/2001                Interval Top: 1204 ft.    Interval Bottom: 2142 ft.

 Completed Information for Formation RATON COAL
1st Production Date:10/18/2001Choke Size:
Formation Name:RATON COALCommingled:
Production Method:PUMPING (30NO025-PC)
Open Hole Completion:
Formation Treatment
Treatment Date:4/16/2002
Treatment Summary:SEE SCANNED DOC 01098112
Tubing Size:2.875 in.Tubing Setting Depth:2165 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/18/2001Test Method:ORIFICE METER
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 222
BBLS_OIL 0
BTU_GAS 1000
CALC_BBLS_H2O 222
CALC_BBLS_OIL 0
CALC_MCF_GAS 0
CASING_PRESS 25
MCF_GAS 0
Perforation Data:
Interval Top:1204 ft.# Of Holes:380
Interval Bottom:2142 ft.Hole Size:4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)14699
GOR
GOR DeterminationMCFE
Average BOE per Day6.945
Average MCFE per Day40.272

 Federal Financial Assurance  i

 Tribal Well  i No
