COGIS - WELL SCOUT CARD

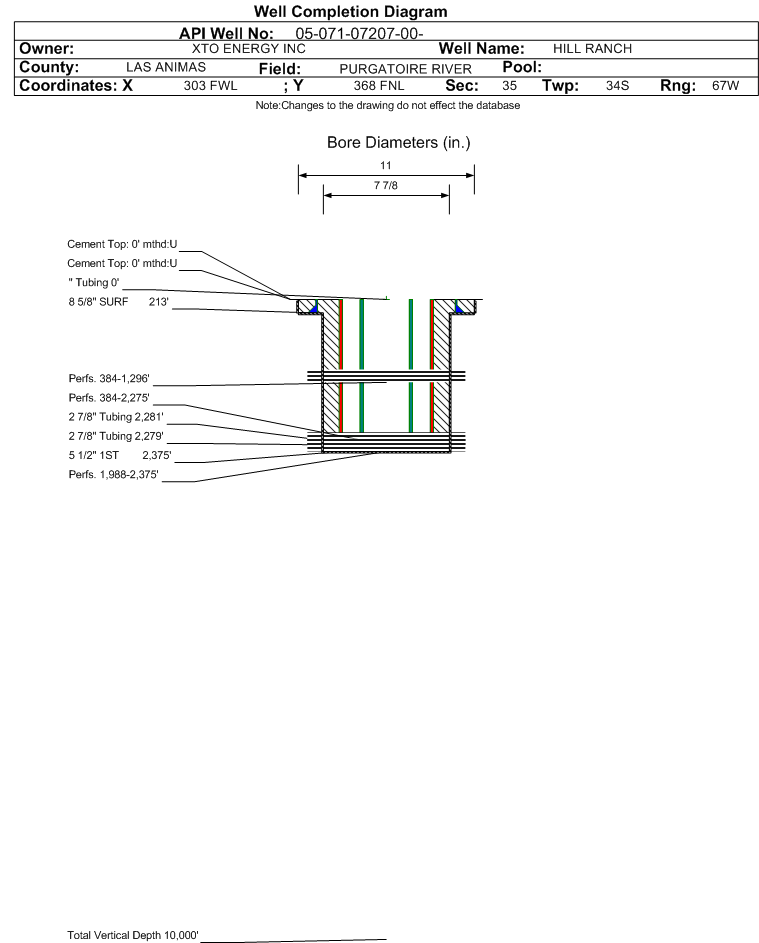

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07207		Well Classification: CBM Status: PR - 12/8/2004
Well Name/No:HILL RANCH #35-04 V
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/8/2004
FacilityID:259234LocationID:307894
County:LAS ANIMAS #071Location:NWNW 35 34S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:7938 ft.
Basin:RATON BASIN
Planned Location:368FNL  303 FWLLat/Long: 37.046974 / -104.864978Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.046920 / -104.864940Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 12/8/2004             Measured TD: 2450 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 12/8/2004
Wellbore Permit
Permit #:010229 Expiration Date:2/6/2002
Proposed Depth/Form:2800 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:12/2/2001
Spud Date:2/27/2001Spud Date Is:ACTUAL
Measured TD:2450 ft.Measured PB depth:2445 ft.
True Vertical TD:True Vertical PB depth:
Log Types:SINGLE IND.,DENSITY/NEUTRON&CEMENT BOND
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 213 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 55, Top: 0 ft., Bottom: 213 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2375 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 435, Top: 0 ft., Bottom: 2375 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.1975 ft.NN
VERMEJO COAL1975 ft.2315 ft.NN
TRINIDAD2315 ft.2450 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  CM - 12/8/2004                 Interval Top: 1988 ft.    Interval Bottom: 2375 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:N/AChoke Size:
Formation Name:VERMEJO COALCommingled:No
Production Method:30N-095 PC PMP
Open Hole Completion:No
Formation Treatment
Treatment Date:12/2/2001
Treatment Summary:ACIDIZED W/500 GALS 15% HCI ACID. FRAC'D W/55,313 GALS 20# DELTA 140 W/SANWEDGE NT CARRYING 23,900# 16/30 & 69,500# 12/20 BRADY SAND. ACIDIZED W/500 GALS 15% HCI ACID. FRAC'D W/42,145 GALS 20# DELTA 140 W/SANDWEDGE NT CARRYING 18,600# 16/30 & (CONT)
Tubing Size:2.875 in.Tubing Setting Depth:2279 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/8/2004Test Method:ORIFICE METER
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 81
BBLS_OIL 0
CALC_BBLS_H2O 81
CALC_MCF_GAS 1
CASING_PRESS 5
MCF_GAS 1
TUBING_PRESS 22
Perforation Data:
Interval Top:1988 ft.# Of Holes:48
Interval Bottom:2375 ft.Hole Size:0.46 in.

Formation RT-VJ                   Formation Classification:  GW                   Status:  PR - 7/29/2009                 Interval Top: 384 ft.    Interval Bottom: 2275 ft.

 Completed Information for Formation RATON-VERMEJO COALS
1st Production Date:7/27/2009Choke Size:
Formation Name:RATON-VERMEJO COALSCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/2/2001
Treatment Summary:
Tubing Size:2.875 in.Tubing Setting Depth:2281 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/29/2009Test Method:PUMPING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 193
BBLS_OIL 0
BTU_GAS 1005
CALC_BBLS_H2O 193
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 33
CASING_PRESS 23
MCF_GAS 33
TUBING_PRESS 3
Perforation Data:
Interval Top:384 ft.# Of Holes:
Interval Bottom:2275 ft.Hole Size:

Formation RTON                     Formation Classification:  GW                     Status:  CM - 12/8/2004                 Interval Top: 384 ft.    Interval Bottom: 1296 ft.

 Completed Information for Formation RATON COAL
1st Production Date:7/27/2009Choke Size:
Formation Name:RATON COALCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/2/2001
Treatment Summary:ACIDIZED W/4,200 GALS 15% HCI ACID. FRAC'D W/184,981 GALS 20# DELTA 140 W/ SANDWEDGE OS CARRYING 30,567# 16/30 BRADY SD AND 365,686# 12/20 BRADY SD.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation RTON.
Perforation Data:
Interval Top:384 ft.# Of Holes:92
Interval Bottom:1296 ft.Hole Size:0.45 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)16142
GOR
GOR DeterminationMCFE
Average BOE per Day7.623
Average MCFE per Day44.216

 Federal Financial Assurance  i

 Tribal Well  i No
