Wellbore #00 Wellbore Classification: CBM Status: AB - 8/1/2024 Measured TD: 1820 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: CBM AB - 8/1/2024 | | Wellbore Permit | | | Permit #: | 010217 | Expiration Date: | 2/5/2002 | | Proposed Depth/Form: | 2800 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | STATE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit: |
| | |

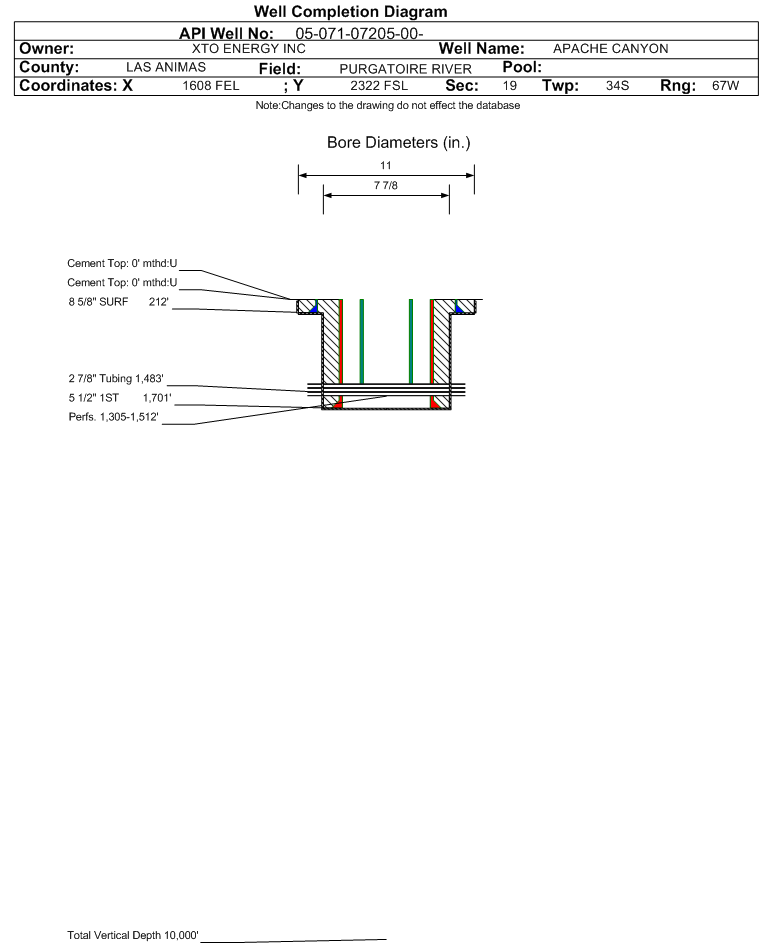

| Wellbore Completed | | Completion Date: | 3/12/2001 | | Spud Date: | 2/12/2001 | Spud Date Is: | ACTUAL | | Measured TD: | 1820 ft. | Measured PB depth: | 1816 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | COMPENSATED DENSITY/DEUTRON SINGLE INDUCTION & CEMENT BOND | | Casing: | String Type: SURF, Hole Size: , Size: 8.625 in., Top: 0 ft., Depth: 212 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 78, Top: 0 ft., Bottom: 212 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 1701 ft., Weight: 15.5 , Citings Type: ACTUAL | | Cement: | Sacks: 245, Top: 0 ft., Bottom: 1701 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | RATON COAL | 0 ft. | 1289 ft. | N | N | | VERMEJO COAL | 1289 ft. | 1623 ft. | N | N | | TRINIDAD | 1623 ft. | 1826 ft. | N | N |
Formation VRMJ Formation Classification: CBM Status: AB - 8/1/2024 Interval Top: 1305 ft. Interval Bottom: 1512 ft.| Completed Information for Formation VERMEJO COAL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | VERMEJO COAL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/12/2001 | | Treatment Summary: | PERFORATIONS: 1506'-12' 4 SPF FRAC 1ST STAGE W/9,423 GAL. 20# DELTA FRAC 140 (INC.PAD), 16,816# 16/30 & 250 GAL. HCL. PERFORATIONS: 1358'-64' 4SPF FRAC 2ND STAGE W/5,436 GAL. 20# DELTA FRAC 140 (INC.PAD), 7,687#16/30 & 250 GAL. HCL. SEE COMMENTS. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 272 | | BBLS_OIL | 0 | | BTU_GAS | 984 | | CALC_BBLS_H2O | 272 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 5 | | CASING_PRESS | 25 | | MCF_GAS | 5 |
| | Perforation Data: | | Interval Top: | 1305 ft. | # Of Holes: | 76 | | Interval Bottom: | 1512 ft. | Hole Size: | 4 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 08/01/2024 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2028 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
