COGIS - WELL SCOUT CARD

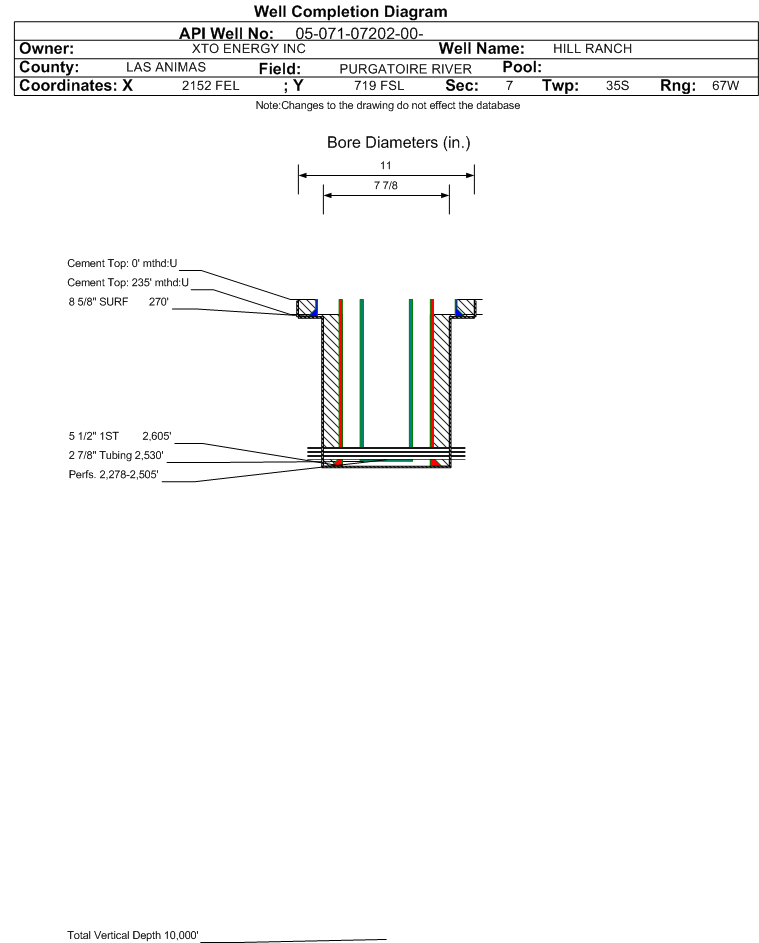

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07202		Well Classification: CBM Status: PR - 6/30/2001
Well Name/No:HILL RANCH #07-15 V
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/30/2001
FacilityID:259196LocationID:307890
County:LAS ANIMAS #071Location:SWSE 7 35S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8405 ft.
Basin:RATON BASIN
Planned Location:719FSL  2152 FELLat/Long: 37.006525 / -104.927610Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.006510 / -104.927580Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 6/30/2001             Measured TD: 2665 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 6/30/2001
Wellbore Permit
Permit #:20010207 Expiration Date:2/1/2002
Proposed Depth/Form:2800 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:6/24/2001
Spud Date:4/19/2001Spud Date Is:ACTUAL
Measured TD:2665 ft.Measured PB depth:2638 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL, SIL, CDL
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 270 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 88, Top: 0 ft., Bottom: 270 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2605 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 440, Top: 235 ft., Bottom: 2605 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.2265 ft.NN
VERMEJO COAL2265 ft.2540 ft.NN
TRINIDAD2540 ft.2665 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  PR - 6/30/2001                 Interval Top: 2278 ft.    Interval Bottom: 2505 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:6/29/2001Choke Size:
Formation Name:VERMEJO COALCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:6/24/2001
Treatment Summary:20# DELTA FRAC 140 W/ 70 QUALITY N2. PERFORATIONS: 2502'-05' (4 SPF) FRAC 1ST STAGE W/ 1500 GAL. DELTA 140 (INC.PAD), 250 GAL. ACID, 0# 16/30 BRADY. ZONE COMM. WHEN ACID HIT PERFORATIONS: 2477'-41' (4 SPF) FRAC 2ND STAGE W/ 13096 GAL. DELTA 140 (INC. PAD), 250 GAL. ACID, 303520 SCF N2, 43900# 16/30 BRADY. PERFORATIONS: 2424'-27' (4 SPF) FRAC 3RD STAGE W/ 5684 GAL.DELTA 140 (INC. PAD), 250 GAL. ACID, 91253 SCF N2, 6500# 16/30 BRADY. PERFORATIONS: 2341'-47' (4 SPF) FRAC 4TH STAGE W/ 10463 GAL. DELTA 140 (INC PAD.), 250 GAL ACID, 204016 SCF N2, 25900# 16/30 BRADY. PERFORATIONS: 2278'-81' (4 SPF) FRAC 5TH STAGE W/ 5759 GAL. DELTA 140 (INC PAD), 250 GAL, ACID 130,118 SCF N2, 16800# 16/30 BRADY.
Tubing Size:2.875 in.Tubing Setting Depth:2530 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/30/2001Test Method:ORIFICE METER
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 150
BBLS_OIL 0
BTU_GAS 1000
CALC_BBLS_H2O 150
CALC_BBLS_OIL 0
CALC_MCF_GAS 42
CASING_PRESS 25
MCF_GAS 42
Perforation Data:
Interval Top:2278 ft.# Of Holes:76
Interval Bottom:2505 ft.Hole Size:4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)20212
GOR
GOR DeterminationMCFE
Average BOE per Day9.549
Average MCFE per Day55.380

 Federal Financial Assurance  i

 Tribal Well  i No
