COGIS - WELL SCOUT CARD

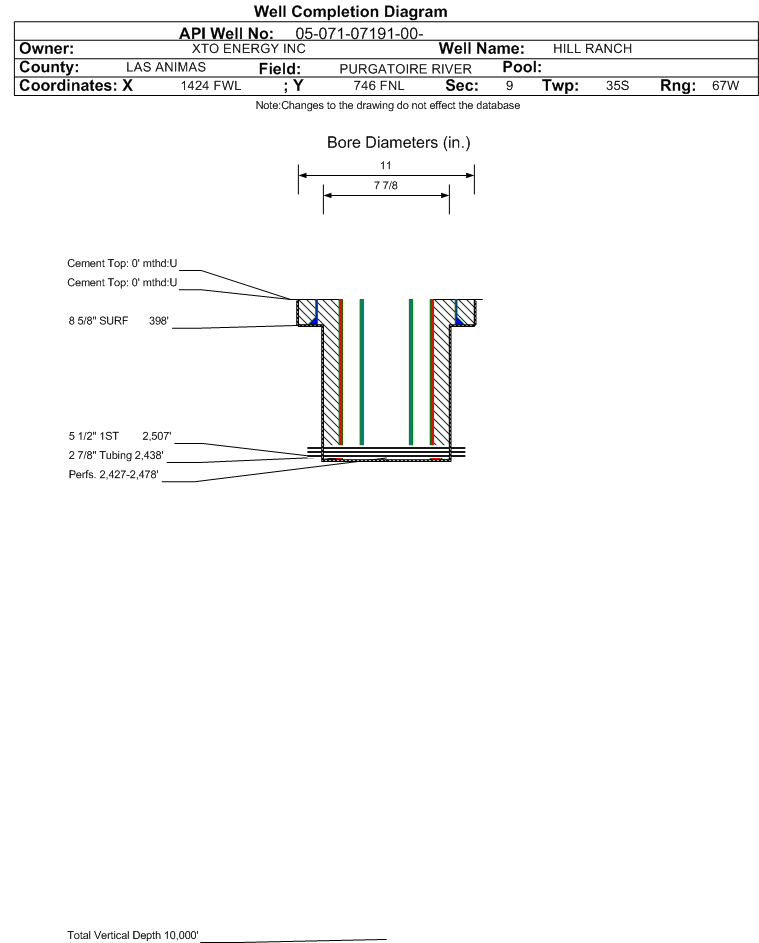

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-071-07191		Well Classification: CBM Status: PA - 7/31/2024
Well Name/No:HILL RANCH #9-03 V
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:OGRIS OPERATING LLC - 10758
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/31/2024
FacilityID:259109LocationID:333945
County:LAS ANIMAS #071Location:NENW 9 35S67W 6
Field:PURGATOIRE RIVER - #70830Elevation:8185 ft.
Basin:RATON BASIN
Planned Location:746FNL  1424 FWLLat/Long: 37.016975 / -104.897299Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 37.017010 / -104.897280Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: AB - 7/31/2024             Measured TD: 2540 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        AB - 7/31/2024
Wellbore Permit
Permit #:20010164 Expiration Date:1/25/2002
Proposed Depth/Form:2800 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: VRMJ , Formation: VERMEJO COAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:4/13/2001
Spud Date:2/3/2001Spud Date Is:ACTUAL
Measured TD:2540 ft.Measured PB depth:2494 ft.
True Vertical TD:True Vertical PB depth:
Log Types:COMP.DENSITY/NEUTRON,SINGLE INDUCTION & CBL
Casing:String Type: SURF, Hole Size: , Size: 8.625 in., Top: 0 ft., Depth: 398 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 95, Top: 0 ft., Bottom: 398 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 2507 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 415, Top: 0 ft., Bottom: 2507 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
RATON COAL0 ft.2160 ft.NN
VERMEJO COAL2160 ft.2468 ft.NN
TRINIDAD2468 ft.2540 ft.NN

Formation VRMJ                     Formation Classification:  GW                     Status:  AB - 7/31/2024                 Interval Top: 2241 ft.    Interval Bottom: 2478 ft.

 Completed Information for Formation VERMEJO COAL
1st Production Date:4/23/2001Choke Size:
Formation Name:VERMEJO COALCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:4/13/2001
Treatment Summary:SEE SCANNED DOCUMNT # 00937880
Tubing Size:2.875 in.Tubing Setting Depth:2438 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/22/2001Test Method:ORIFICE METER
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 300
BBLS_OIL 0
BTU_GAS 984
CALC_BBLS_H2O 300
CALC_BBLS_OIL 0
CALC_MCF_GAS 6
CASING_PRESS 25
MCF_GAS 6
Perforation Data:
Interval Top:2241 ft.# Of Holes:72
Interval Bottom:2478 ft.Hole Size:4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/31/2024
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2028
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
